TRACK - SUSPENSION

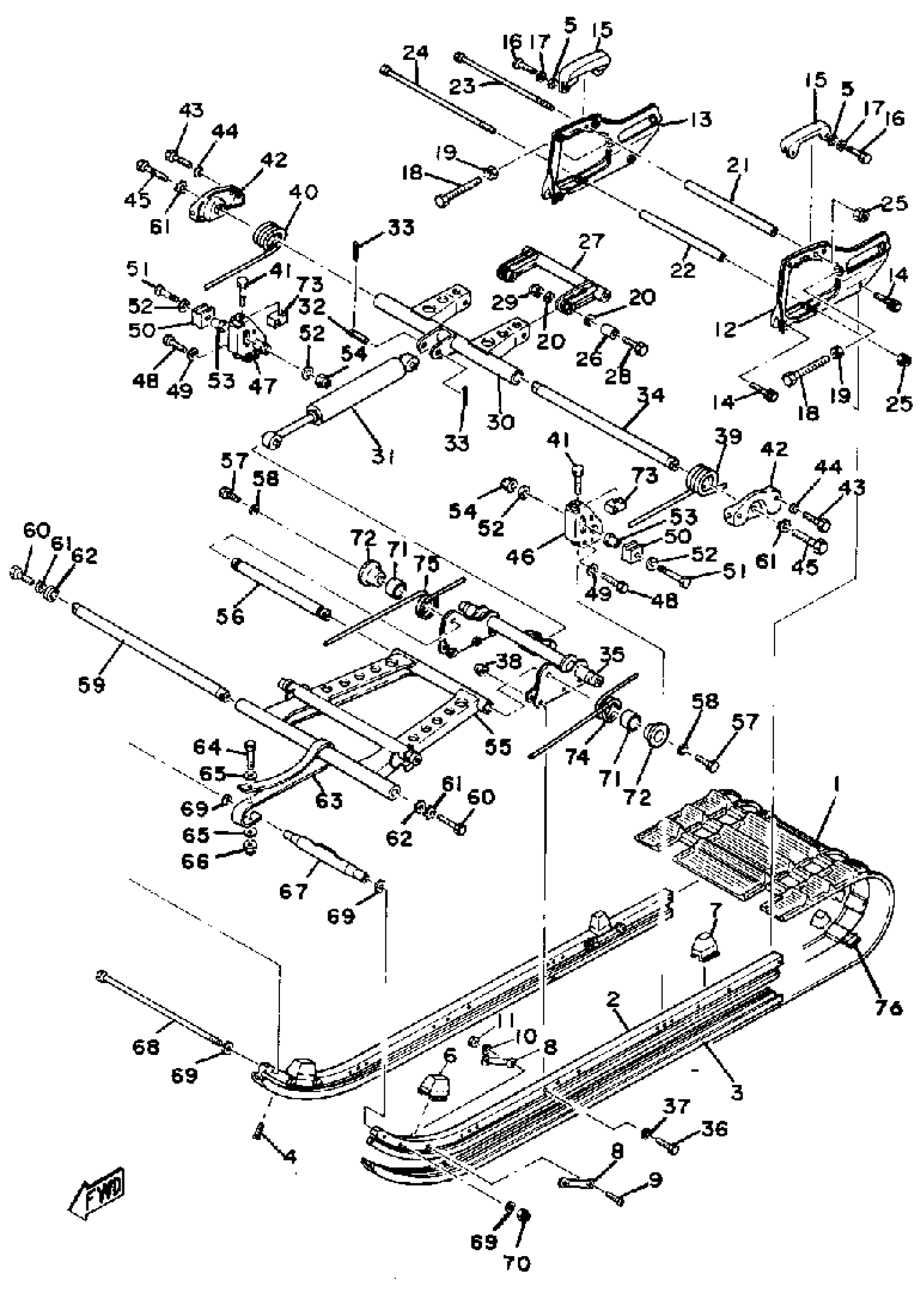

Yamaha EX440B 1978 TRACK - SUSPENSION Diagram
#
1
TRACK ASY
8V0-47110-00-00
Unavailable
2
FRAME, SLIDING 1
8E7-47411-00-00
Unavailable
3
RUNNER, SLIDING 1 (8E7-47421-10)
8N5-47421-00-XX
Unavailable
4
SCREW, CROSSRECESS (8G6)
90151-06005-00
$9.49
5
WASHER, PLATE
90201-06020-00
$9.49
6
DAMPER 2
8E3-47457-00-00
Unavailable
7
DAMPER 2
885-47457-00-00
Unavailable
8
PLATE, DAMPER
885-47458-01-00
Unavailable
9
SCREW, PAN HEAD
98517-05030-00
$10.49
10
YBS67-5 WASHER, SPRING
92990-05100-00
$0.35
11
NUT, HEXAGON (663)
95380-05600-00
$8.49
12
FRAME, SLIDING 2
8A5-47412-00-00
Unavailable
13
FRAME, SLIDING 3
8A5-47413-00-00
Unavailable
14
BOLT, WITH WASHER
90119-08008-00
Unavailable
15
RUNNER, SLIDING
8E3-47422-00-00
$19.99
16
BOLT, HEXAGON
97017-06025-00
Unavailable
17
WASHER, SPRING
92995-06100-00
Unavailable
18
BOLT, HEXAGON (899 TRACK)
90101-10293-00
Unavailable
19
NUT (682)
95380-10700-00
Unavailable
20
WASHER (1T1)
90201-08649-00
Unavailable
21
COLLAR (899 SUSPENSION)
90387-08497-00
Unavailable
22
COLLAR (899 SUSPENSION)
90387-08496-00
Unavailable
23
BOLT, HEXAGON
97027-08250-00
Unavailable
24
BOLT (8M8)
90101-08374-00
Unavailable
25
NUT, NYLON
95717-08300-00
Unavailable
26
COLLAR (8A5 SUSPENSION)
90387-08508-00
Unavailable
27
BRACKET 3
8A5-47417-00-00
Unavailable
28
BOLT, HEXAGON
97013-08050-00
Unavailable
29
NUT, NYLON
95717-08300-00
Unavailable
30
ARM, PIVOT 2
8A5-47332-00-00
Unavailable
31
SHOCK ABSORBER
8E7-47480-01-00
Unavailable
32
PIN, CLEVIS(8N0)
90240-12115-00
Unavailable
33
PIN, COTTER
91490-30030-00
Unavailable
34
SHAFT 2
8A5-47475-02-00
Unavailable
35
BRACKET 2 (8A5-47416-00)
8R0-47416-00-00
Unavailable
36
BOLT(21W)
97017-06035-00
Unavailable
37
WASHER, SPRING
92995-06100-00
Unavailable
38
NUT, NYLON
95707-06300-00
Unavailable
59
SHAFT 1
8A5-47465-02-00
Unavailable
60
BOLT (8J7)
97013-10030-00
Unavailable
61
WASHER, TTH
92907-10400-00
Unavailable
62
SPACER
885-47341-00-00
Unavailable
63
STOPPER 1
8E3-47495-00-00
Unavailable
64
BOLT(3RV)
97014-06035-00
Unavailable
65
WASHER, PLATE
90201-06747-00
Unavailable
66
NUT, NYLON
95707-06300-00
Unavailable
67
BRACKET 1
899-47415-00-00
Unavailable
68
BRACKET 1
899-47415-00-00
Unavailable
69
WASHER, PLAIN
92990-08200-00
Unavailable
70
NUT, NYLON
95717-08300-00
Unavailable
71
COLLAR
90387-30570-00
Unavailable
72
HOOK 1
8E7-47446-00-00
Unavailable
73
HOOK 1
8G6-47446-00-00
Unavailable
74
SPRING, TORSION
90508-65329-00
Unavailable
75
SPRING, TORSION
90508-65330-00
Unavailable
76
METAL, SLIDE
8A5-47115-00-00
Unavailable
