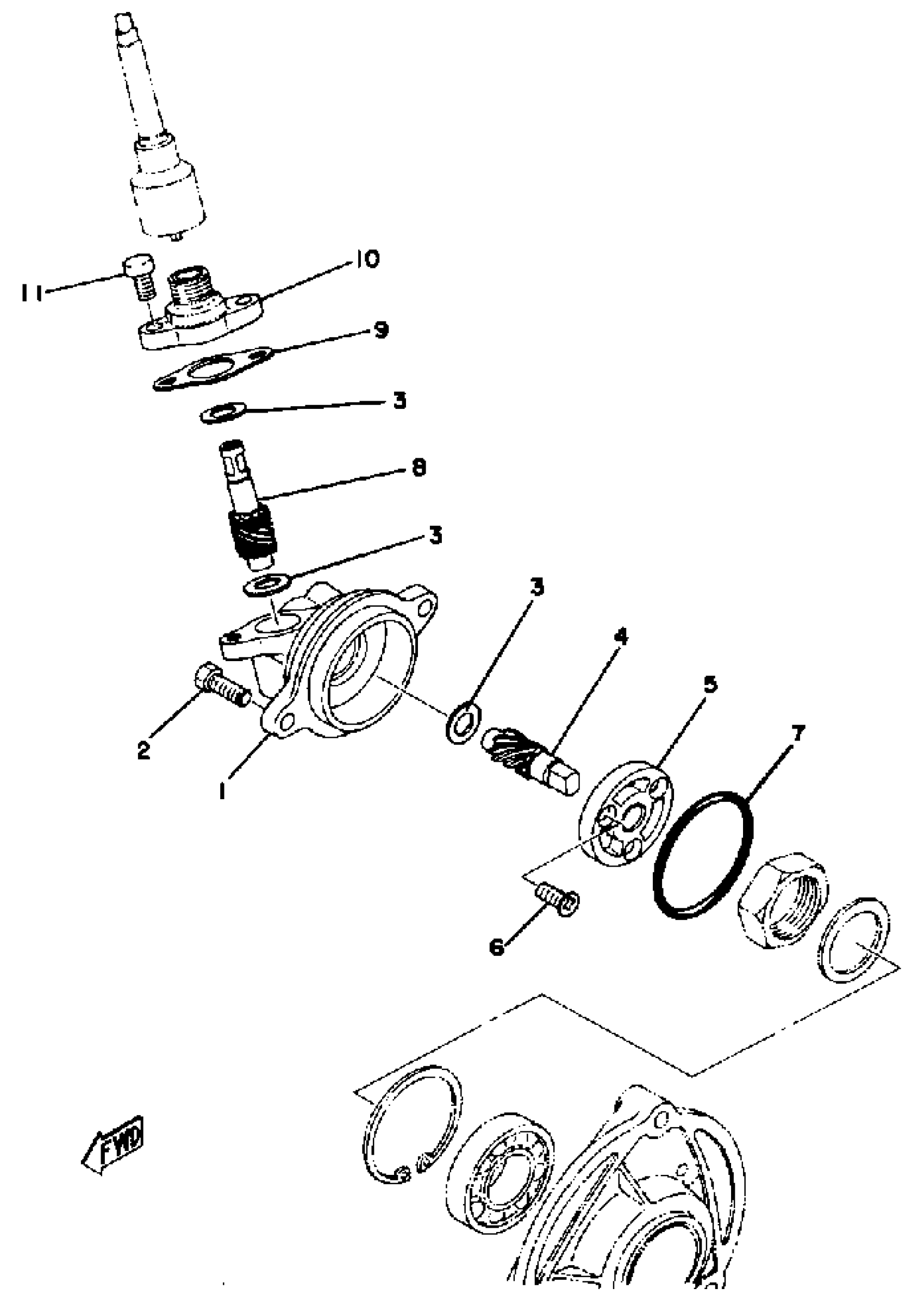

Yamaha EX440B 1978 SPEEDOMETER GEAR UNIT Diagram

#

Description

Price

1

HOUSING

8E6-47711-10-00

Unavailable

2

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

3

SHIM

810-47717-10-00

Unavailable

4

GEAR, DRIVE

8A5-47731-00-00

Unavailable

5

JOURNAL

853-47712-10-00

Unavailable

6

SCREW, FLAT

98707-04012-00

$2.18

7

O-RING

93210-43141-00

Unavailable

8

GEAR, DRIVEN

8A5-47741-00-00

Unavailable

9

GASKET

810-47727-11-00

Unavailable

10

COVER, METER HOUSING

8E3-47721-10-00

Unavailable

11

SCREW,PAN HEAD (646)

98580-05012-00

$7.99
