SECONDARY SHEAVE

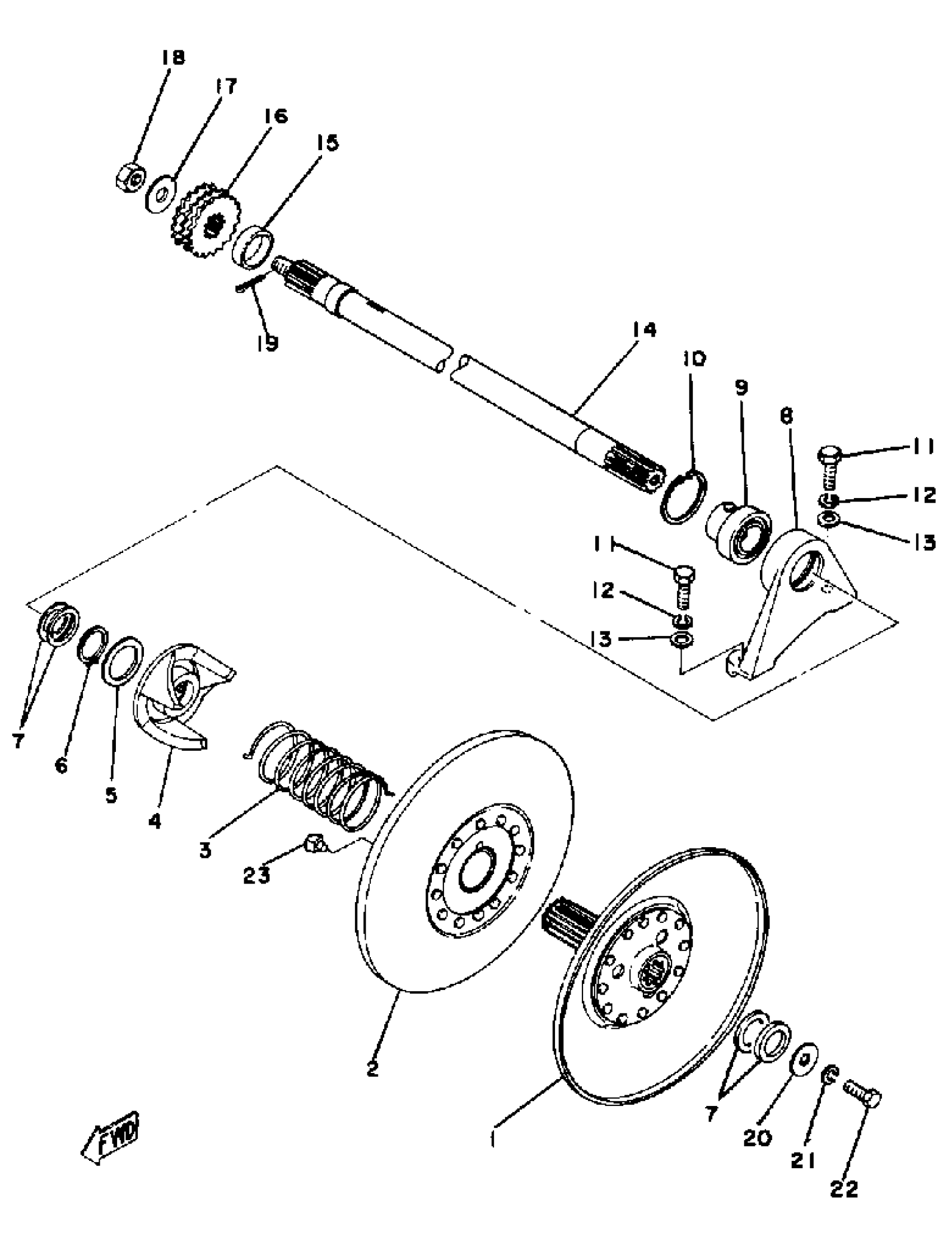

Yamaha EX440B 1978 SECONDARY SHEAVE Diagram
#
1
SEC FXD SHVSHEAVE COMP.
8A5-17660-01-00
Unavailable
2
SEC SLIDING SHEAVE
(8F2-17670-00-00)
Unavailable
3
SPRING, TORSION
90508-45286-00
Unavailable
3
SPRING, TORSION
90508-45287-00
Unavailable
4
SEAT, SEC SPRINGSPRING
8A5-17684-01-00
Unavailable
4
SEAT, SEC SPRING
8A7-17684-00-00
Unavailable
5
WASHER, PLATE
90201-34684-00
Unavailable
6
CIRCLIP(86F)
93440-34170-00
$8.49
7
WASHER, PLATE (888)
90201-25526-00
$9.49
7
WASHER, PLATE (888)
90201-25527-00
$10.49
7
SPACER (25-36-5.0)
99999-01011-00
Unavailable
8
HOUSING, BEARING
878-47631-00-00
Unavailable
9
BEARING
888-17678-00-00
Unavailable
10
CIRCLIP(26H)
99009-52500-00
$12.49
11
BOLT (8J7)
97013-10030-00
$10.49
12
YBS67-10 WASHER, SPRING
92990-10100-00
Unavailable
13
WASHER, PLATE 3711117500
90201-10124-00
Unavailable
14
SHAFT, SECONDARY
(888-17680-00-00)
Unavailable
15
COLLAR
90387-25259-00
Unavailable
16
SPRKT, CHAIN DR 20T (20T)
829-17682-00-00
Unavailable
16
SPRKT, CHAIN DR 15T (878-17682-50) (15T)
829-17682-50-00
Unavailable
16
SPRKT, CHAIN DR 16T (16T)
829-17682-60-00
Unavailable
16
SPRKT, CHAIN DR 17T (17T)
829-17682-70-00
Unavailable
16
SPRKT, CHAIN DR 18T (18T)
829-17682-80-00
Unavailable
16
SPRKT, CHAIN DR 19T (878-17682-90) (19T)
829-17682-90-00
Unavailable
16
SPROCKET, CHAIN DR (878-17693-10) (21T)
8U9-17693-10-00
Unavailable
16
SPROCKET, CHAIN DR (878-17693-20) (22T)
8U9-17693-20-00
Unavailable
17
WASHER, PLATE
90201-14319-00
Unavailable
18
NUT(6TC)
95337-14600-00
Unavailable
19
PIN, COTTER
91490-30030-00
Unavailable
20
WASHER, PLATE (856)
90201-10321-00
Unavailable
21
YBS67-10 WASHER, SPRING
92990-10100-00
Unavailable
22
BOLT(6TD)
97017-10025-00
Unavailable
23
SHOE RAMP
8X6-17688-00-00
Unavailable
