PUMP DRIVE GEAR

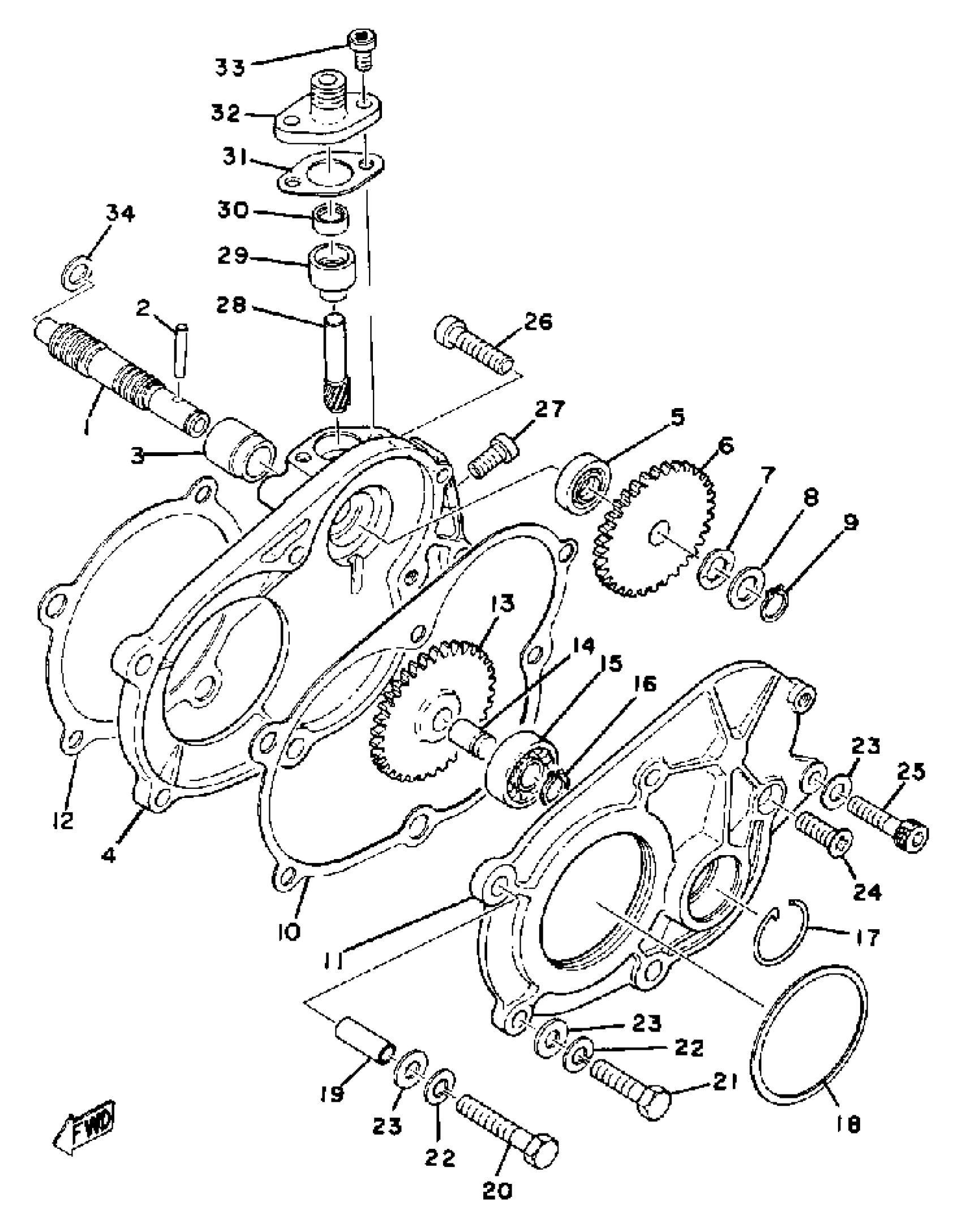

Yamaha EX440B 1978 PUMP DRIVE GEAR Diagram
#
1
SHAFT, WORM
821-13175-00-00
Unavailable
1
SHAFT, WORM
866-13175-00-00
Unavailable
2
PIN,DOWEL (137)
93603-22028-00
$3.76
3
METAL, WORM SHAFT OUTER
821-13176-00-00
$17.49
4
COVER, OIL PUMP
(8A5-15416-00-00)
Unavailable
5
OIL SEAL (J10)
93101-10090-00
$8.49
6
GEAR, DRIVE 2
821-13188-00-00
Unavailable
7
WASHER, WAVE (137)
90206-11016-00
Unavailable
8
PLATE, CAM THRUST
137-13148-00-00
Unavailable
9
CIRCLIP(10W)
99009-10400-00
$4.73
10
GASKET 2
859-15466-09-00
Unavailable
11
COVER, OIL PUMP R
8F7-15426-00-00
Unavailable
12
GSKT,O PMPCVR
838-15456-09-00
Unavailable
13
GEAR, IDLE
(8F3-13179-01-00)
Unavailable
14
SHAFT, IDLE GEAR
8F3-13342-00-00
Unavailable
15
BEARING (B6000RS)
93306-00003-00
Unavailable
16
CIRCLIP(10W)
99009-10400-00
$4.73
17
CLIP
(90468-12077-00)
Unavailable
18
OIL SEAL, SR-TYPE
93112-53004-00
Unavailable
19
PIN, DOWEL
91810-18022-00
Unavailable
20
BOLT(3RV)
97014-06035-00
Unavailable
21
BOLT, HEXAGON
97017-06025-00
Unavailable
22
WASHER, SPRING
92995-06100-00
Unavailable
23
WASHER, PLAIN (646)
92990-06600-00
Unavailable
24
SCREW, FLAT
98707-06014-00
Unavailable
25
BOLT,SOCKET
91317-06025-00
Unavailable
26
SCREW, PAN HEAD (76T)
98517-06025-00
Unavailable
27
SCREW, PAN HEAD(62J)
97885-06012-00
Unavailable
28
GEAR, DRIVEN (10T)
813-17841-00-00
Unavailable
29
BUSH, DRIVEN GEAR OUTER
821-17843-00-00
Unavailable
30
OIL SEAL (6X12X4-821)
93104-06033-00
Unavailable
31
GASKET
821-17818-02-00
Unavailable
32
CAP, HOUSING
821-17819-00-00
Unavailable
33
SCREW, PAN HEAD(62X)
97885-05010-00
Unavailable
34
WASHER, PLATE (1E7)
90201-08624-00
Unavailable
