PRIMARY SHEAVE

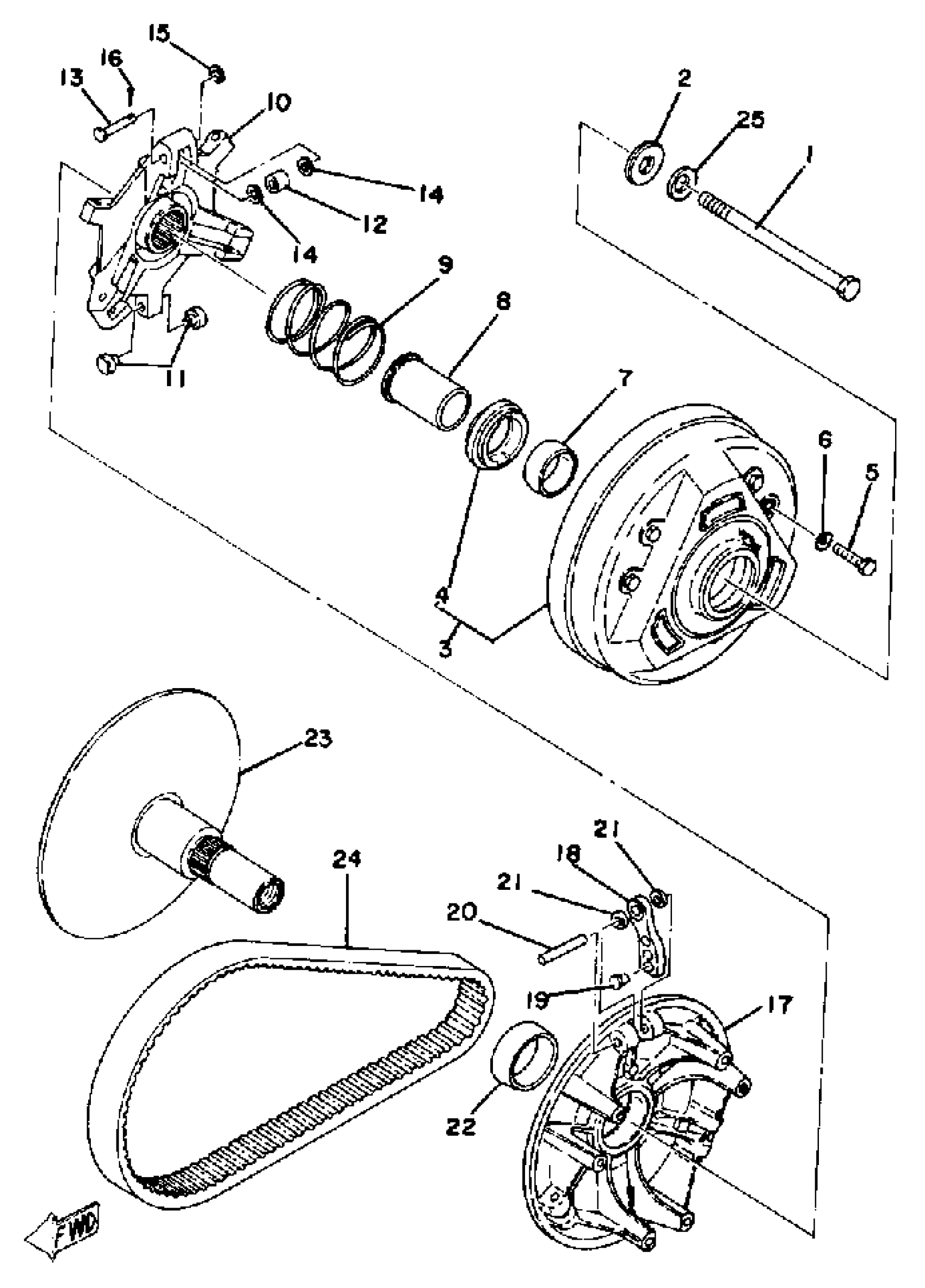

Yamaha EX440B 1978 PRIMARY SHEAVE Diagram
#
Description
Price
1
BOLT
90101-13406-00
Unavailable
2
SPACER 1
8J0-17654-00-00
Unavailable
3
PRI. SHEAVE CAP
8E7-W1762-00-00
Unavailable
4
SEAT, SPRING
8E7-17644-02-00
Unavailable
5
BOLT(JF7)
97080-06030-00
$5.49
6
WASHER, TOOTH
92901-06400-00
Unavailable
7
. BUSH, SPEC''L SHAPE
90389-34019-00
Unavailable
8
COLLAR
90387-28721-00
Unavailable
9
SPRING, COMPRESSION
90501-50447-00
Unavailable
9
SPRING, COMPRESSION
(90501-50458-00)
Unavailable
10
SPIDER
8J0-17627-00-00
Unavailable
11
SLIDER
8F2-17653-00-00
$13.49
12
COLLAR (8A7)
90387-06560-00
$7.49
13
PIN, W/HOLE (8G6)
90240-06062-00
$10.49
14
WASHER (8J0)
90202-06113-00
$4.72
15
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
16
PIN, COTTER
91490-25020-00
Unavailable
17
SHEAVE, PRI SLIDING
8E7-17621-01-00
Unavailable
18
WEIGHT, CLUTCH
8E7-17632-00-00
Unavailable
19
RIVET, COUNTER SUNK (8G8)
90261-06017-00
Unavailable
19
RIVET, COUNTER SUNK (8G8)
90261-06017-00
Unavailable
20
PIN, DOWEL (8V8)
93607-44190-00
Unavailable
21
WASHER, PLATE(8E7)
90201-07641-00
Unavailable
22
BUSH, SPEC''L SHAPE
90389-41018-00
Unavailable
23
PRI FIXED SHEAVE
8F2-17610-00-00
Unavailable
24
V-BELT
89X-17641-01-00
Unavailable
25
WASHER, CONICAL SPR
90208-13023-00
Unavailable
