1978 Yamaha EX440B Fuel Tank Diagram

← All diagrams

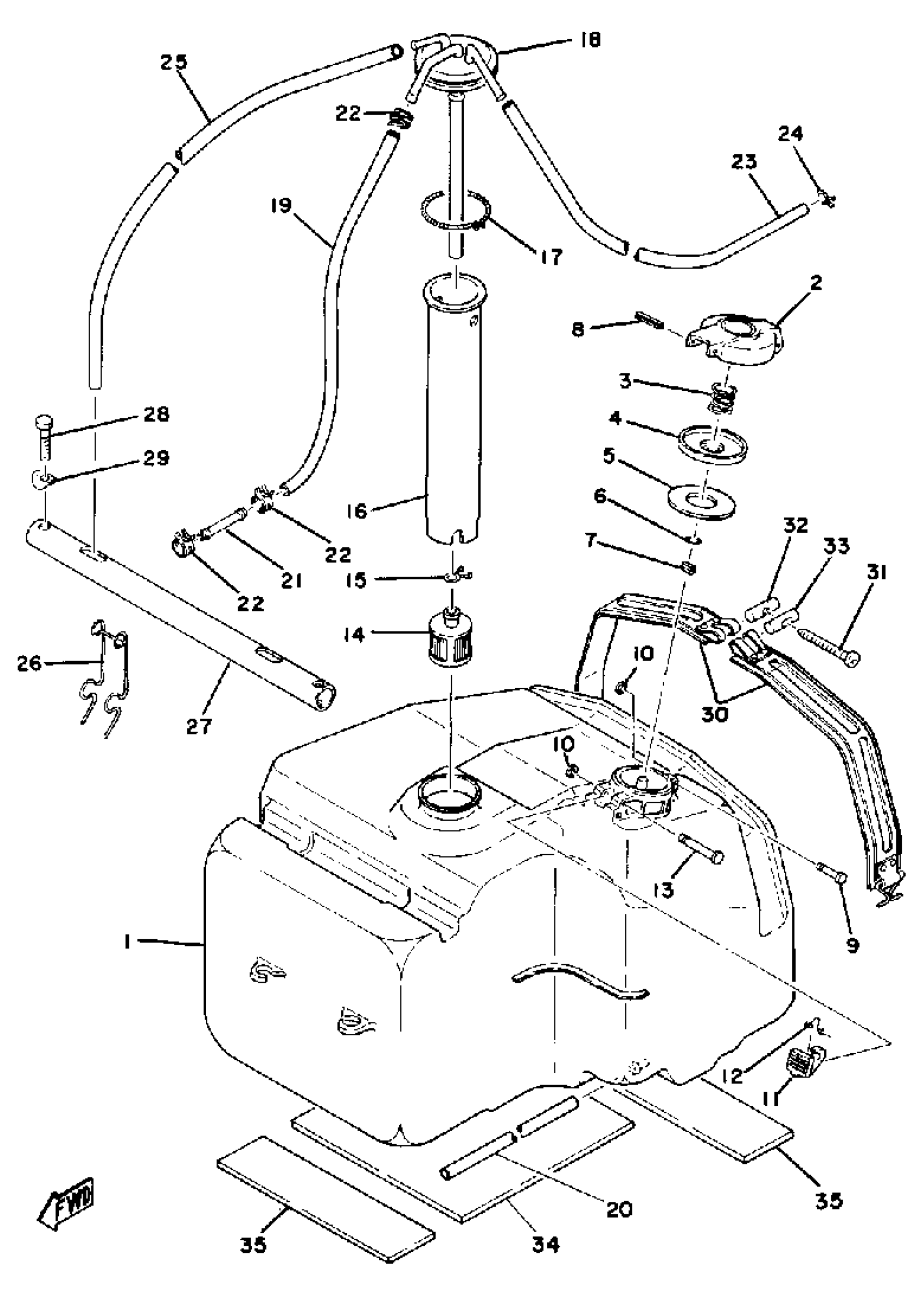

Find the part on the Fuel Tank diagram for your 1978 Yamaha EX440B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1978 Yamaha EX440B Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FUEL TANK

8G6-24111-01-00

1
Out of stock

2

BODY, CAP

8A5-24611-00-00

1
Out of stock

3

SPRING, CAP

90501-20130-00

1

$6.80

In stock

4

DISK,CAP

813-24613-01-00

1

$18.71

In stock

5

GASKET, CAP

256-24612-00-00

1
Out of stock

6

O-RING (256)

93210-04122-00

1
Out of stock

7

PIN, SPRING

91690-30016-00

1

$5.88

In stock

8

PIN, SPRING

91609-25032-00

1

$1.83

In stock

9

PIN, SPEC''L SHAPE

90249-03016-00

1
Out of stock

10

CIRCLIP (604)

93430-02001-00

1

$6.69

In stock

11

HOOK

83M-24628-00-00

1

$19.68

In stock

12

SPRING, TORSION (813-24637-00)

90508-08003-00

1
Out of stock

13

PIN (813)

90249-03017-00

1

$2.25

In stock

14

FILTER ASSY

8H5-24560-00-00

1

$11.47

In stock

15

CLIP (8J7)

90467-11009-00

1

$7.55

In stock

16

PIPE, SUCTION 2

(8G6-24336-01-00)

1
Out of stock

17

SPRING, TENSION (8R4)

90506-06261-00

—

$6.94

In stock

18

PIPE, SUCTION 1

(8G6-24335-00-00)

1
Out of stock

19

HOSE

91A30-07036-00

1
Out of stock

20

TUBE, FLEXIBLE(3NV)

91A21-07020-00

—

$8.95

In stock

21

PIPE, JOINT 4

878-24379-00-00

1

$6.46

In stock

22

CLIP

90467-11028-00

1

$5.14

In stock

23

TUBE, FLEXIBLE VINYL(8AK)

91A20-05080-00

—

$12.58

In stock

24

CLIP (8L2)

90467-08017-00

—

$7.51

In stock

25

HOSE (806-24319-00)

90446-09051-00

1
Out of stock

26

CLAMP

90465-11044-00

1
Out of stock

27

BAND, TNK FITTING 1

(878-24173-01-00)

1
Out of stock

28

BOLT (682)

97095-06040-00

—

$2.36

In stock

29

WASHER, LOCK

(90215-06048-00)

1
Out of stock

30

BAND, TNK FITTING 2

8G6-24199-00-00

1
Out of stock

31

SCREW, SPEC''L SHAPE (821-24176-00)

90149-05006-00

1
Out of stock

32

NUT, SPEC''L SHAPE (806-24146-00)

90179-05030-00

1
Out of stock

33

CLAMP

806-24135-00-00

—

$3.20

In stock

34

DAMPER, LOCATING 1

(8G6-24181-00-00)

1
Out of stock

35

DAMPER, LOCATING 2

(8G6-24182-00-00)

1
Out of stock
