AIR CLEANER (EX440B)

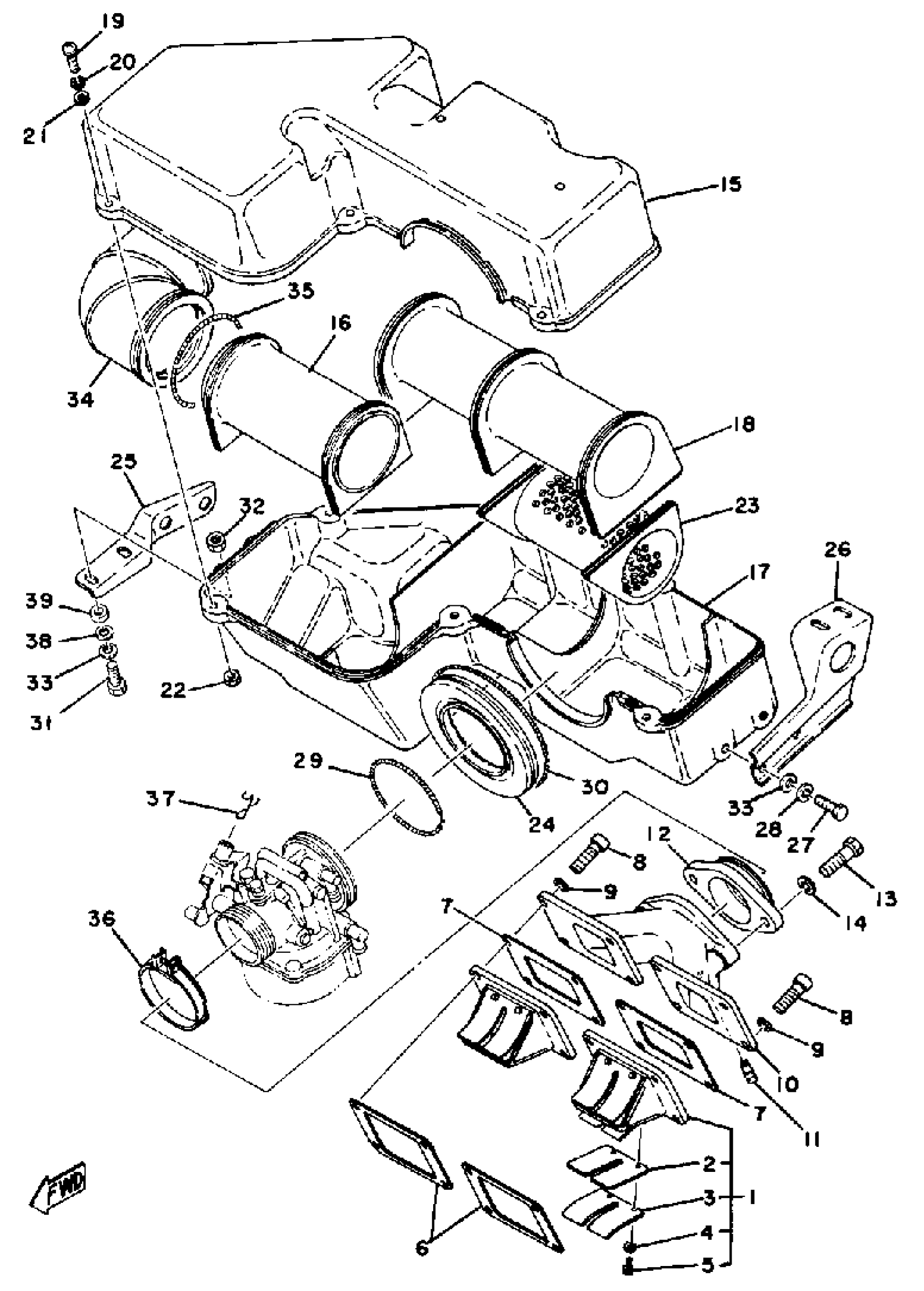

1978 Yamaha EX440B AIR Cleaner Diagram
Find the part on the AIR Cleaner diagram for your 1978 Yamaha EX440B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
3
. STOPPER, REED VALVE (10V-12616-01-00)
1UA-13616-00-00
7
GASKET
866-13563-09-00
10
JOINT, CARBURETOR
(885-13565-00-00)
11
NOZZLE
824-13552-00-00
12
MANIFOLD, INTAKE
8H8-13555-01-00
15
SILENCER, INTAKE 1
8A5-14431-00-00
16
PIPE
8A5-14419-00-00
17
SILENCER, INTAKE 2
8A5-14441-00-00
18
PIPE
(8A5-14465-00-00)
20
YBS67-5 WASHER, SPRING
92990-05100-00
21
WASHER, PLAIN (646)
92990-05600-00
23
PIPE
(8A5-14466-01-00)
24
JOINT, AIR CLNR 1
8G6-14453-00-00
25
STAY 1
(8A5-14493-00-00)
26
JOINT, AIR CLNR 1
8G6-14453-00-00
30
SPRING, TENSION
90506-06131-00
34
PIPE, SUCTION
8A5-14423-00-00
36
CLAMP, HOSE
90460-60084-00
37
CLAMP, THROTTLE
830-41222-00-00
39
COLLAR (90387-066J9)
90387-064W1-00
