CARBURETOR

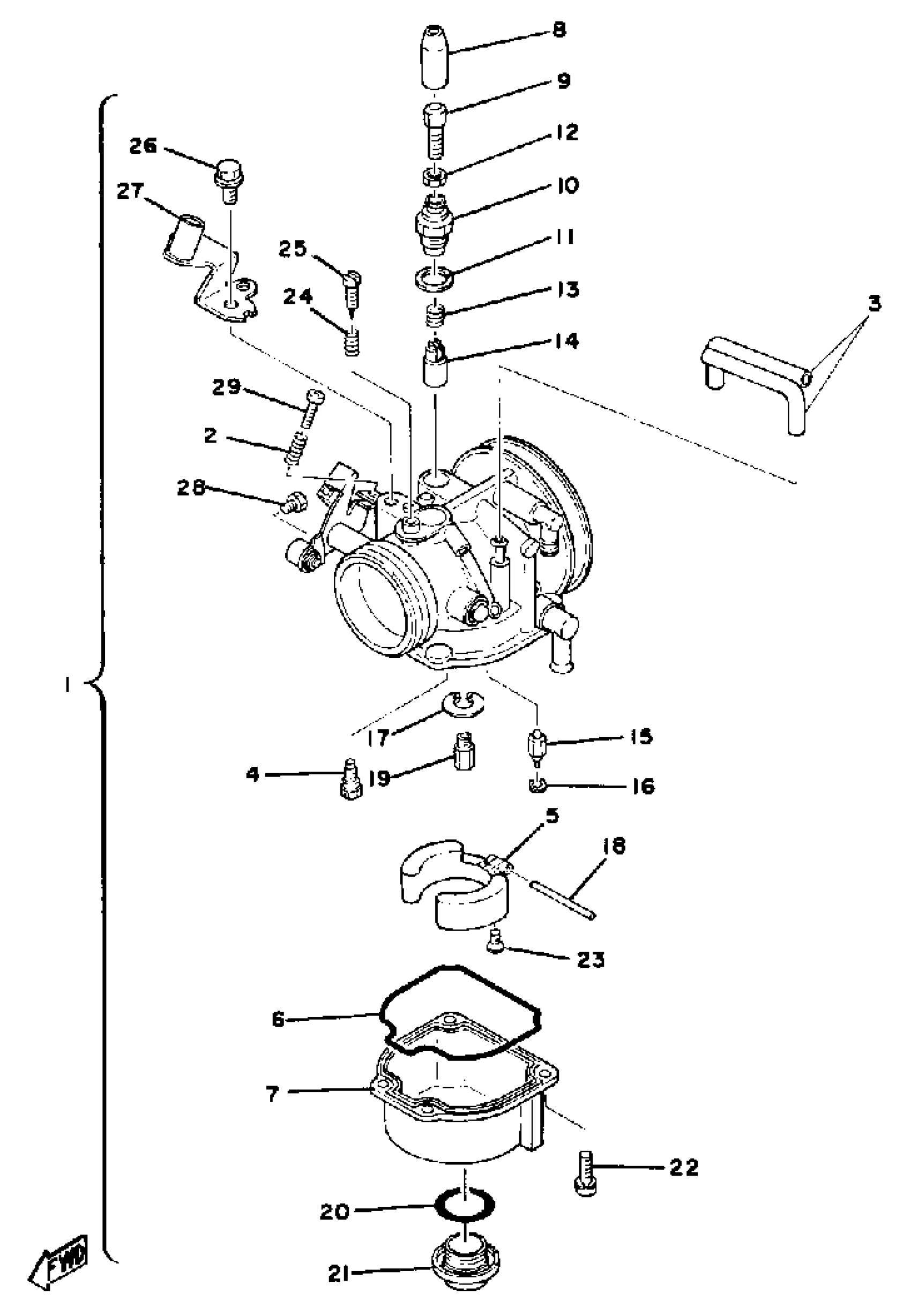

Yamaha EX440B 1978 CARBURETOR Diagram
#
1
CARBURETOR ASSEMBLY 1
8G6-14101-00-00
Unavailable
1
CARBURETOR ASSEMBLY 1
(8G7-14101-00-00)
Unavailable
2
. SPRING, COMPRESSION
90501-12229-00
Unavailable
3
NET, FILTER
(8G6-14994-00-00)
Unavailable
4
. JET (#82)
8G6-14948-20-00
Unavailable
4
. JET #90
8G6-14948-23-00
Unavailable
5
FLOAT
8G6-14985-01-00
$40.99
6
WASHER, FLOAT CHAMBER
8G6-14984-00-00
$18.99
7
BODY, FLOAT CHAMBER
(8G6-14980-00-00)
Unavailable
8
COVER
(8A6-14967-00-00)
Unavailable
9
BOLT, STARTER CABLE ADJUSTING
8A6-14977-00-00
$20.99
10
CAP, PLUNGER
8A6-14969-00-00
$28.99
11
. WASHER, PLATE
90201-12581-00
Unavailable
12
. NUT, CABLE ADJUSTING
8E7-14161-00-00
Unavailable
13
SPRING (8E7)
90501-08443-00
$10.49
14
PLUNGER, STARTER
371-14993-60-00
Unavailable
15
VALVE,FLOAT
8E7-14546-01-00
Unavailable
16
CLIP
633-14159-00-00
Unavailable
17
CLIP
(8A5-14159-00-00)
Unavailable
18
. PIN, FLOAT ARM
663-14548-00-00
Unavailable
19
. JET, MAIN #125
8A6-14516-25-00
Unavailable
19
. JET, MAIN #130
8A6-14516-30-00
Unavailable
19
. JET, MAIN #135
8A6-14516-35-00
Unavailable
19
. JET, MAIN #138
8A6-14516-38-00
Unavailable
19
. JET, MAIN #142
8A6-14516-42-00
Unavailable
19
JET, MAIN #148
(8A6-14516-48-00)
Unavailable
19
. UNAVAILABLE IN PRICE BOOK
8A6-14516-62-00
Unavailable
20
O-RING (8A6)
93210-19309-00
Unavailable
21
. ROD
8M7-14992-00-00
Unavailable
22
. SCREW, WITH WASHER
97980-04114-00
Unavailable
23
SCREW, FLAT
98707-04008-00
Unavailable
24
SPRING, COMPRESSION
90501-08214-00
Unavailable
25
SCREW, ADJUST
8G6-14521-00-00
Unavailable
26
. SCREW
8G6-14592-00-00
Unavailable
27
. PLATE, STAY
8G6-14572-00-00
Unavailable
28
SCREW
(8F3-14591-00-00)
Unavailable
29
. SCREW, PAN HEAD
90157-04010-00
Unavailable
