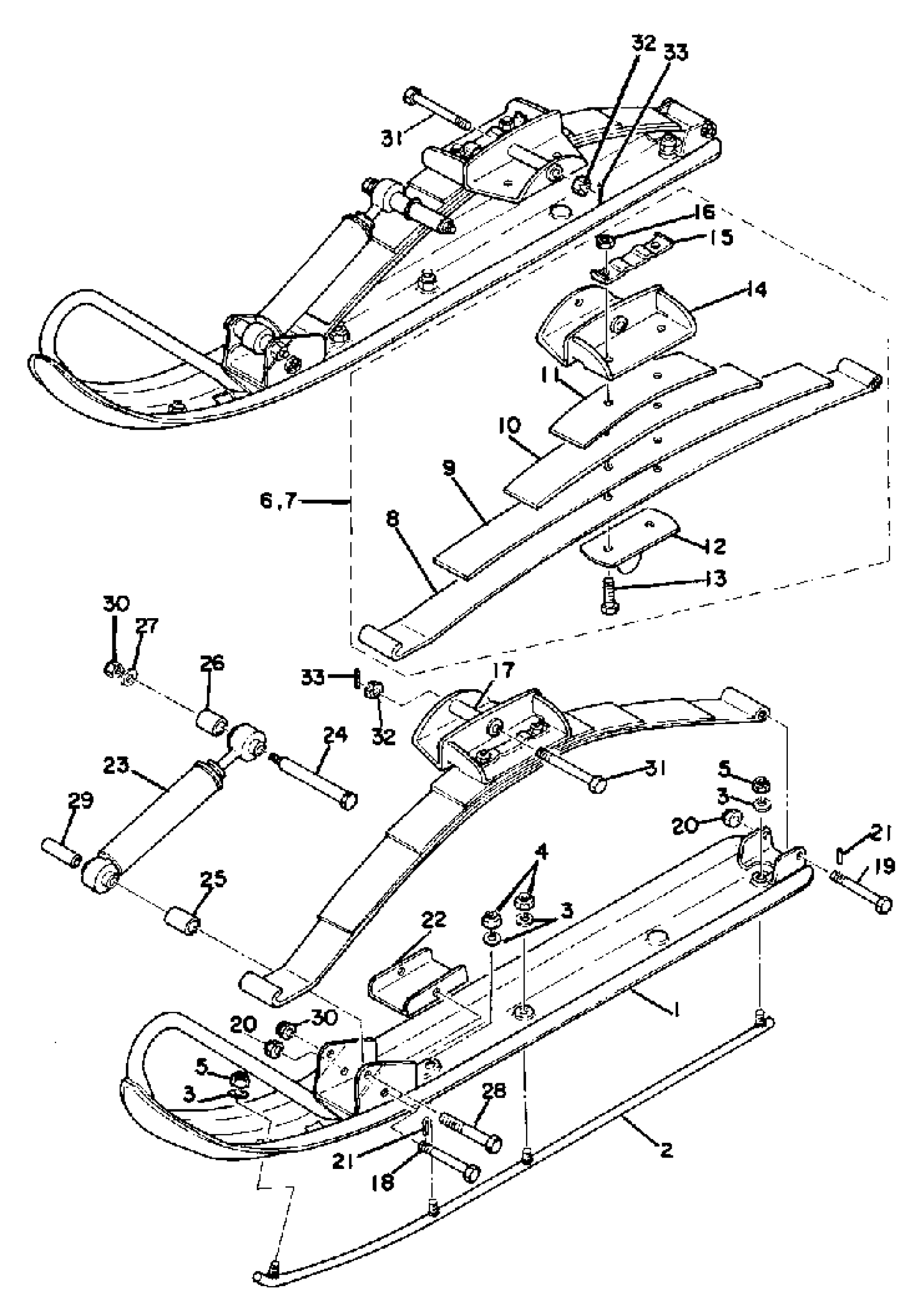

Yamaha EX440A 1977 SKI Diagram
#
1
SKI COMP. 1
8E3-23710-09-00
Unavailable
2
RUNNER 1
8E3-23731-00-XX
Unavailable
3
.. WASHER, PLATE
92990-08600-00
Unavailable
4
NUT
90185-08055-00
$9.49
5
NUT, NYLON
95717-08300-00
$2.70
6
SPRING ASSEMBLY 1
(888-23760-01-00)
Unavailable
7
SPRING ASSEMBLY 2
(888-23770-01-00)
Unavailable
8
LEAF 1
888-23761-10-00
Unavailable
9
LEAF 2
865-23762-10-00
Unavailable
10
LEAF 3
888-23763-00-00
Unavailable
11
. LEAF 5
865-23771-00-00
Unavailable
12
. SEAT, SPRING 1
878-23768-00-00
Unavailable
13
. UNAVAILABLE IN PRICE BOOK (90101-10275)
90109-102E1-00
Unavailable
14
SADDLE 1
(888-23766-00-33)
Unavailable
15
WASHER, ROCK (8J5)
90215-10155-00
$13.99
16
NUT, FLANGE(3BM)
95704-10500-00
Unavailable
17
COLLAR
90387-08478-00
Unavailable
18
BOLT PIN HOLE HEXAGON(8E6)
90102-08028-00
Unavailable
19
BOLT, PIN HOLE (8A7)
90102-08027-00
Unavailable
20
NUT, NYLON
95717-08300-00
$2.70
21
PIN, COTTER
91490-20025-00
Unavailable
22
PLATE, WEAR
888-23735-00-00
Unavailable
23
SHOCK ABSORBER ASSEMBLY
8A5-23350-01-00
Unavailable
24
BOLT
90109-08435-00
Unavailable
25
COLLAR (808-83326-00)
90387-12106-00
Unavailable
26
COLLAR
90387-12534-00
Unavailable
27
WASHER (853)
90201-08326-00
Unavailable
28
BOLT (6K8)
97013-08075-00
Unavailable
29
COLLAR (864)
90387-08224-00
Unavailable
30
NUT, NYLON
95717-08300-00
$2.70
31
BOLT, WITH HOLE
90102-12022-00
Unavailable
32
UNAVAILABLE IN PRICE BOOK (95306-12900)
90171-12046-00
Unavailable
33
PIN, COTTER
91490-30030-00
Unavailable
