1977 Yamaha EX440A Primary Sheave Diagram

← All diagrams

Find the part on the Primary Sheave diagram for your 1977 Yamaha EX440A, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

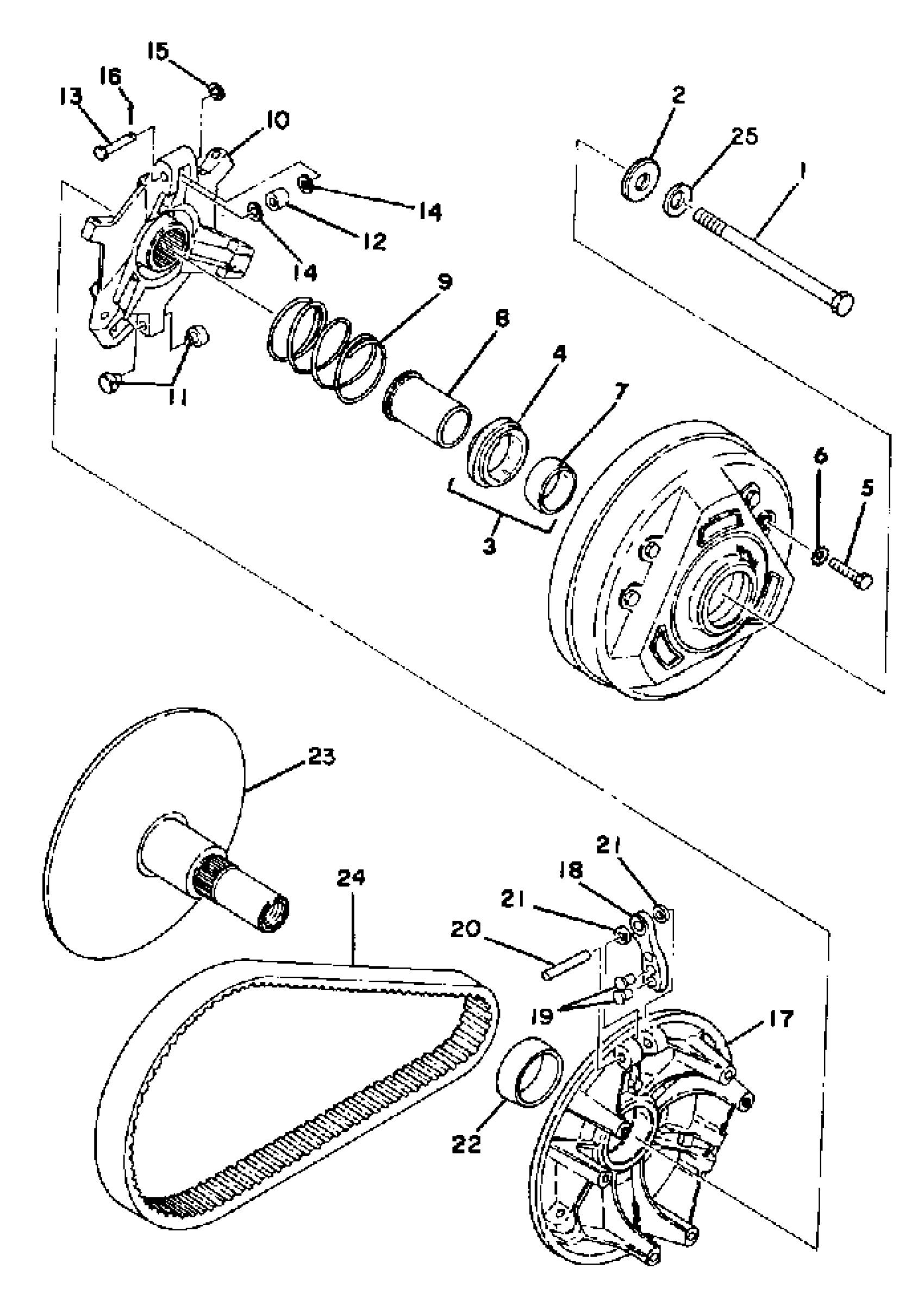

1977 Yamaha EX440A Primary Sheave Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOLT

90101-13406-00

1
Out of stock

2

SPACER 1

8J0-17654-00-00

—

$6.58

In stock

3

PRI. SHEAVE CAP

8E7-W1762-00-00

1
Out of stock

4

SEAT, SPRING

8E7-17644-02-00

1
Out of stock

5

BOLT(JF7)

97080-06030-00

1

$3.45

In stock

6

WASHER, TOOTH

92901-06400-00

1
Out of stock

7

. BUSH, SPEC''L SHAPE

90389-34019-00

1
Out of stock

8

COLLAR (90387-28590)

99999-00949-00

1
Out of stock

9

SPRING, COMPRESSION

90501-50447-00

1
Out of stock

9

SPRING, COMPRESSION

(90501-50458-00)

1
Out of stock

10

SPIDER

8A7-17627-00-00

1
Out of stock

11

SLIDER

8F2-17653-00-00

1

$10.03

In stock

12

COLLAR (8A7)

90387-06560-00

1

$6.32

In stock

13

PIN, CLEVIS

90240-06056-00

1
Out of stock

14

WASHER (8J0)

90202-06113-00

1

$3.32

In stock

15

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

16

PIN, COTTER

91490-25020-00

—

$2.94

In stock

17

SHEAVE, PRI SLIDING

8E7-17621-01-00

1
Out of stock

18

WEIGHT, CLUTCH

8E7-17632-00-00

1
Out of stock

19

RIVET, COUNTER SUNK (8G8)

90261-06017-00

—
Out of stock

20

PIN, DOWEL (8V8)

93607-44190-00

—
Out of stock

21

WASHER, PLATE(8E7)

90201-07641-00

—

$3.32

In stock

22

BUSH, SPEC''L SHAPE

90389-41018-00

1
Out of stock

23

PRI FIXED SHEAVE

8F2-17610-00-00

1
Out of stock

24

V-BELT

89X-17641-01-00

1

$48.52

In stock

25

WASHER, CONICAL SPR

90208-13023-00

1
Out of stock
