Description

Price

1

GASKET, PUMP CASE

126-13116-01-00

$8.99

2

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

3

OIL PUMP ASSEMBLY

8G6-13101-00-00

Unavailable

3

OIL PUMP ASSEMBLY

8G7-13101-00-00

Unavailable

4

SHIM,PLUNGER

137-13137-00-03

$5.49

4

SHIM,PLUNGER

137-13137-00-05

$6.99

4

SHIM,PLUNGER

137-13137-00-10

$7.99

5

PLATE, ADJUSTING

137-13138-01-00

Unavailable

6

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

7

NUT, HEXAGON (663)

95380-05600-00

$8.49

8

. PLUG

90338-21100-00

Unavailable

9

. SCREW, PAN HEAD

90157-04009-00

Unavailable

10

WASHER, PLAIN (646)

92990-04600-00

$5.99

11

GASKET 137131870000

90430-04004-00

$9.49

12

BALL

93505-32002-00

$2.92

13

SPRING (278-13169-00)

90501-02018-00

Unavailable

14

NOZZLE

353-13552-01-00

Unavailable

15

HOSE (L200)

90445-05N13-00

Unavailable

16

HOSE (L200)

90445-05N13-00

Unavailable

17

CLIP (214-13164-00)

90468-02033-00

Unavailable

18

CLIP (214-13164-00)

90468-02033-00

Unavailable

19

COVER, ADJUST PULLEY

8A5-13146-01-00

Unavailable

20

SCREW, PAN HEAD

98507-04018-00

Unavailable

21

PUMP CABLE ASSEMBLY (8GG6-26320-00)

8A5-26320-02-00

Unavailable

22

CLIP (867)

90468-15020-00

Unavailable

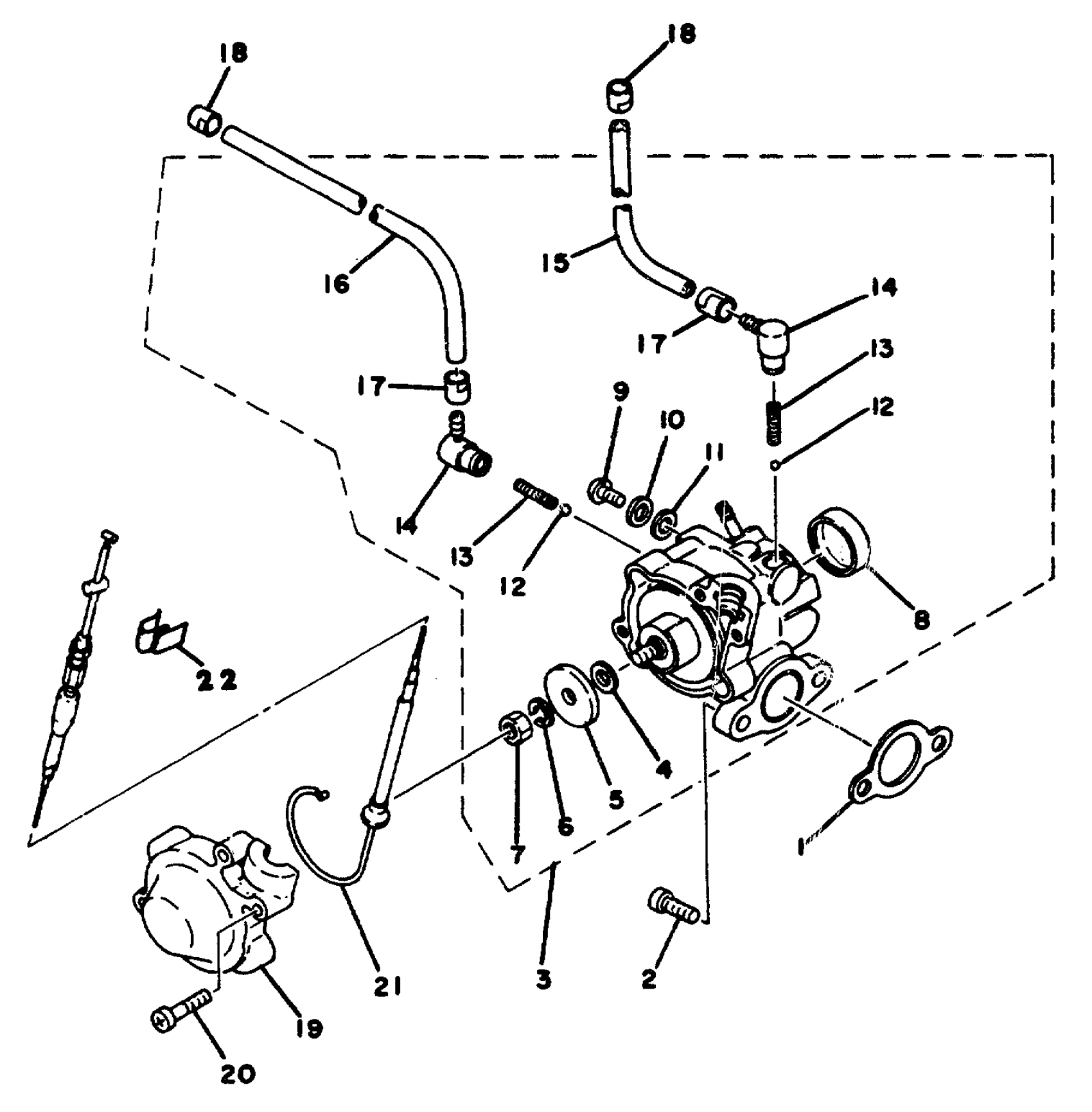

Yamaha EX440A 1977 OIL PUMP Diagram

GASKET, PUMP CASE

SCREW, PAN HEAD(6B0)

OIL PUMP ASSEMBLY

OIL PUMP ASSEMBLY

SHIM,PLUNGER

SHIM,PLUNGER

SHIM,PLUNGER

PLATE, ADJUSTING

YBS67-5 WASHER, SPRING

NUT, HEXAGON (663)

. PLUG

. SCREW, PAN HEAD

WASHER, PLAIN (646)

GASKET 137131870000

BALL

SPRING (278-13169-00)

NOZZLE

HOSE (L200)

HOSE (L200)

CLIP (214-13164-00)

CLIP (214-13164-00)

COVER, ADJUST PULLEY

SCREW, PAN HEAD

PUMP CABLE ASSEMBLY (8GG6-26320-00)

CLIP (867)
