ENGINE BRACKET - LUGGAGE BOX

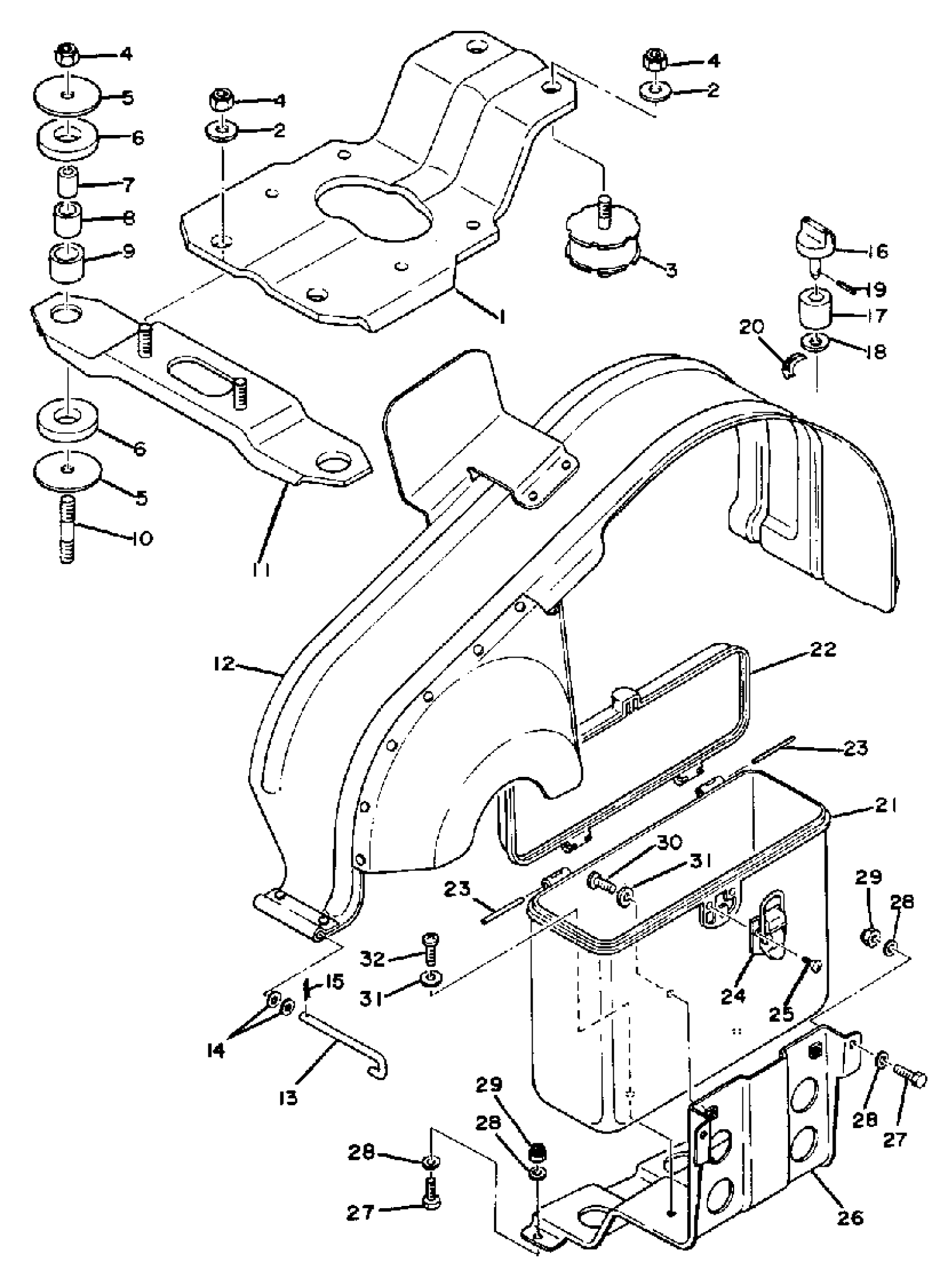

Yamaha EX440A 1977 ENGINE BRACKET - LUGGAGE BOX Diagram
#
1
BRACKET, ENGINE 1
8A5-21411-00-00
Unavailable
2
WASHER, PLATE (856)
90201-10321-00
$8.49
3
DAMPER 2
857-21486-00-00
Unavailable
4
NUT, SELF-LOCKING
90185-10017-00
Unavailable
5
WASHER (888)
90201-10151-00
Unavailable
6
DAMPER, RUBBER 1
8V0-21485-00-00
Unavailable
7
COLLAR
90387-10514-00
Unavailable
8
BUSH, SPEC''L RUBBER
90385-15025-00
Unavailable
9
COLLAR
90387-21515-00
Unavailable
10
BOLT, STUD
95611-10345-00
Unavailable
11
BRACKET, ENGINE 2
8A5-21419-00-00
Unavailable
12
GUARD, DRIVE
8E7-77311-00-00
Unavailable
13
PIN(8E7)
91701-06082-00
$5.60
14
WASHER, PLAIN (646)
92990-06600-00
$2.80
15
PIN, COTTER
91490-20025-00
$1.99
16
KNOB
8A5-77324-00-00
Unavailable
17
BUSH, SPEC''L RUBBER
90385-08009-00
Unavailable
18
WASHER, PLATE
90201-08104-00
Unavailable
19
PIN, SPRING (91609-40025-00)
91609-40024-00
Unavailable
20
EMBLEM 11
(829-77366-00-00)
Unavailable
21
LUGGAGE BOX
(8E7-77391-00-00)
Unavailable
22
COVER, LUGGAGE BOX
8E7-77392-00-00
Unavailable
23
PIN, SPEC''L SHAPE
90249-03021-00
Unavailable
24
LUGGE BOX LTCH ASSEMBLY
8E7-77340-00-00
Unavailable
25
SCREW, FLAT
98707-03008-00
Unavailable
26
STAY 1
(8E7-77397-00-00)
Unavailable
27
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
Unavailable
28
WASHER, PLAIN (646)
92990-06600-00
$2.80
29
NUT, NYLON
95707-06300-00
Unavailable
30
SCREW, BIND(J45)
98980-06012-00
Unavailable
31
WASHER, PLATE
90201-06747-00
Unavailable
32
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
Unavailable
