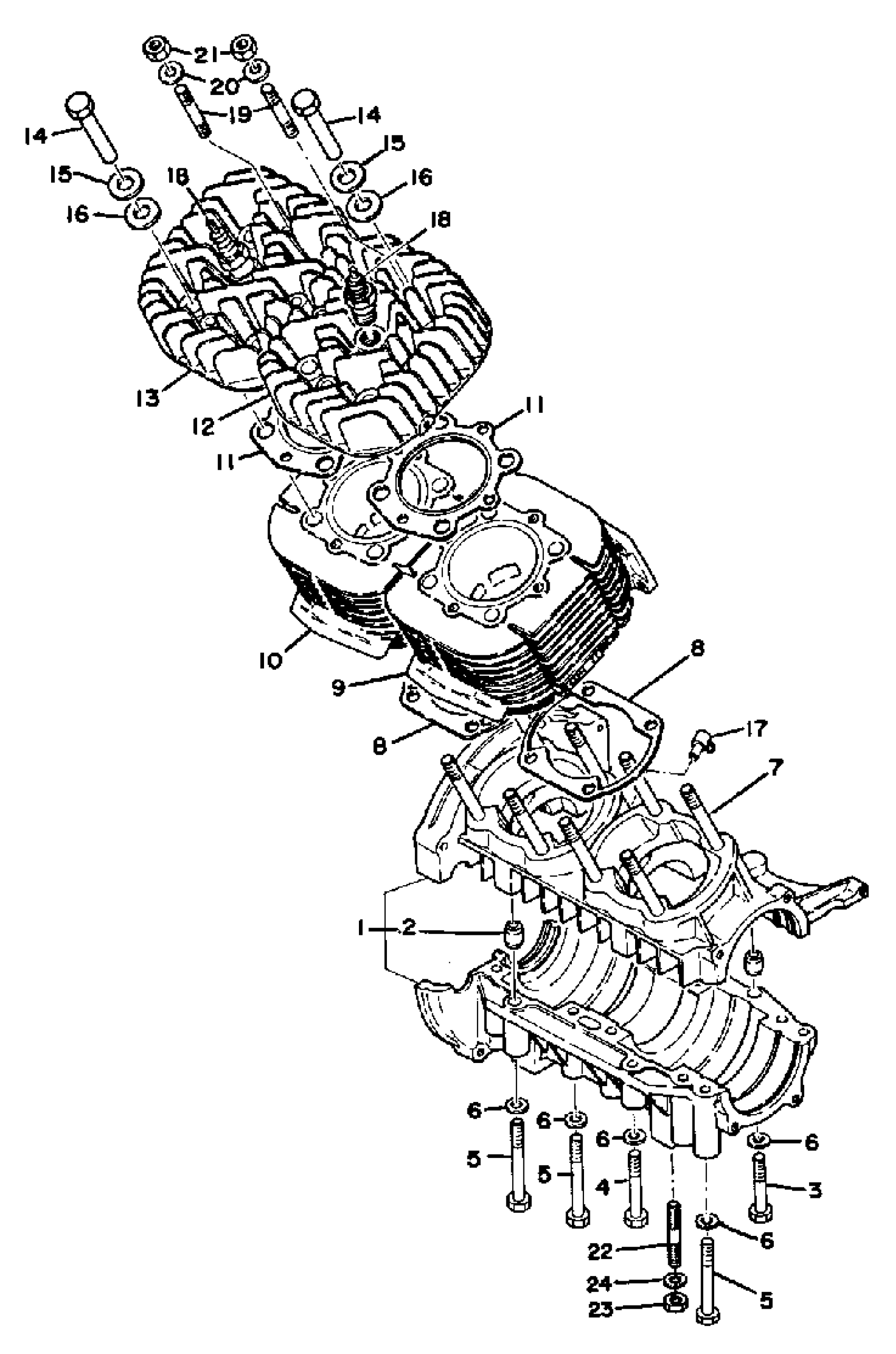

Yamaha EX440A 1977 CRANKCASE - CYLINDER (EX440A) Diagram

#

Description
Price

1

CRANKCASE ASSEMBLY

(8A5-15100-00-00)

Unavailable

2

PIN, DOWEL

99530-12016-00

$4.89

3

BOLT, HEXAGON

97013-08050-00

Unavailable

4

BOLT, HEXAGON

97013-08055-00

$2.55

5

BOLT(6TC)

97027-08070-00

Unavailable

6

.. WASHER, PLATE

92990-08600-00

Unavailable

7

BOLT (248-11361-00)

90116-08064-00

$7.49

8

GASKET, CYLINDER

857-11351-09-00

$4.42

9

CYLINDER 1

8A5-11311-01-00

Unavailable

10

CYLINDER 2

8A5-11321-01-00

Unavailable

11

GASKET, CYL HEAD 1

828-11181-09-00

Unavailable

12

HEAD, CYLINDER 1

8A5-11111-00-00

Unavailable

13

HEAD, CYLINDER 2

8A5-11121-10-00

Unavailable

14

NUT, SPEC''L SHAPE

90179-08090-00

Unavailable

15

WASHER, CONICAL SPRING 12,2 X

90208-12800-00

Unavailable

16

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

17

PIPE, JOINT

8E4-24461-00-00

Unavailable

18

PLUG, SPARK (NGK BR-9EVX)

BR9-EIX00-00-00

Unavailable

19

BOLT, STUD

(95611-08650-00)

Unavailable

20

WASHER, PLATE (397)

90201-08100-00

Unavailable

21

NUT(6L2)

95333-08600-00

Unavailable

22

BOLT, STUD

90116-10132-00

Unavailable

23

NUT, SELF-LOCKING

90185-10030-00

Unavailable

24

WASHER, PLATE(8BV)

90201-100S7-00

Unavailable
