Description

Price

1

CDI MAGNETO ASSEMBLY

(8E7-85500-10-00)

Unavailable

2

. COIL SOURCE 2

8E7-85512-10-00

Unavailable

3

. COIL, LIGHTING 1

8E7-85513-10-00

Unavailable

4

COIL, CHARGE

8E7-85541-10-00

Unavailable

5

. SPACER

647-81318-10-00

Unavailable

6

SCREW, PAN

98507-05035-00

$8.49

7

COIL PULSER

(888-85543-10-00)

Unavailable

8

SCREW, PAN HEAD

110-81346-21-00

$5.49

9

LEAD WIRE ASSEMBLY

(8E7-85515-10-00)

Unavailable

10

. CLAMP

109-81328-11-00

Unavailable

11

CLAMP, LEAD

(363-85528-10-00)

Unavailable

12

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

13

. ROTOR ASSEMBLY

8E7-85550-10-00

Unavailable

14

SCREW, PAN

98507-06014-00

$8.49

15

WASHER, PLAIN (646)

92990-06600-00

$2.80

16

FAN

838-12611-00-00

Unavailable

17

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

18

WASHER, SPRING

92995-06100-00

Unavailable

19

WASHER, PLAIN (646)

92990-06600-00

$2.80

20

COVER, HOLE

(8A5-81362-00-00)

Unavailable

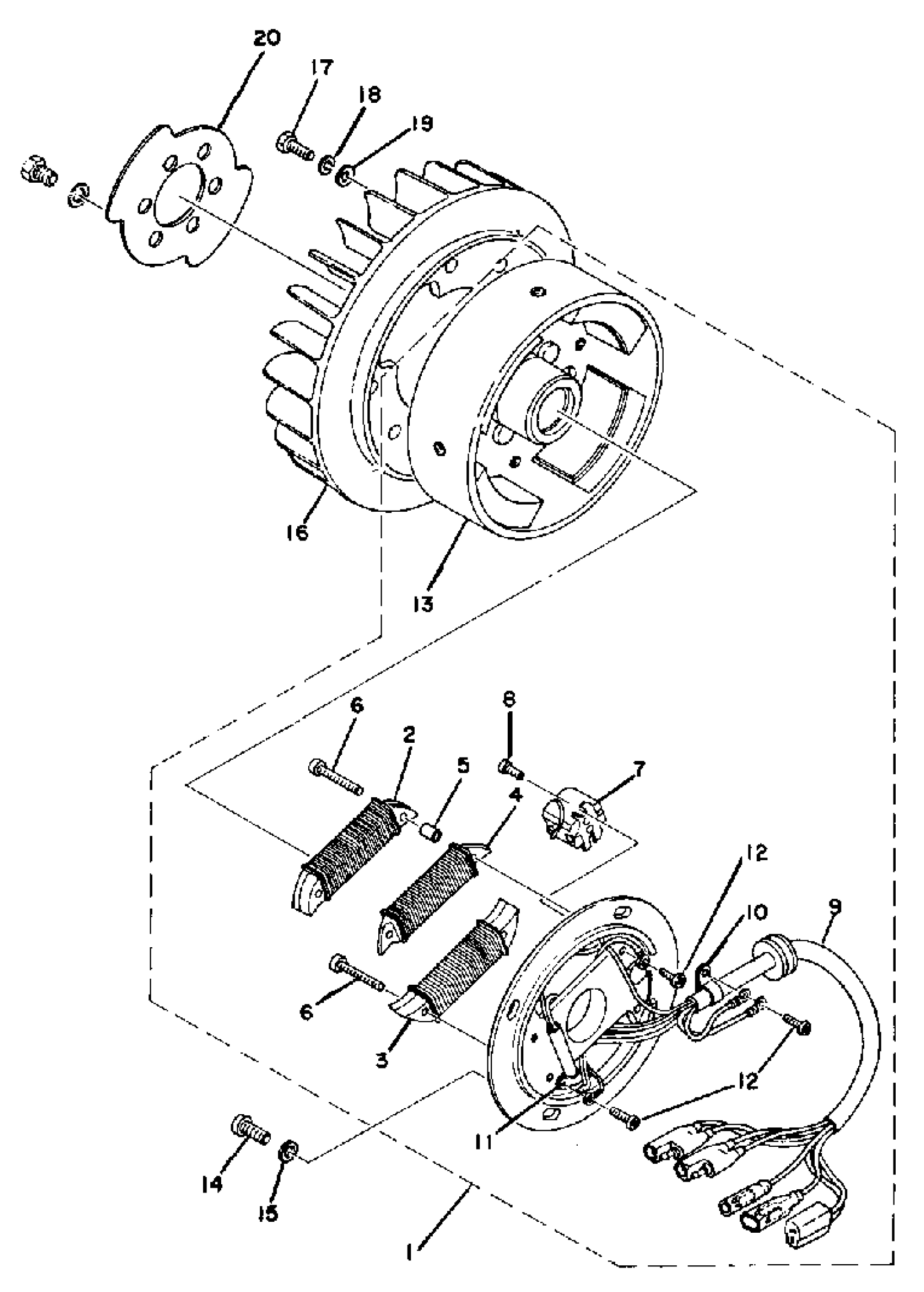

Yamaha EX440A 1977 C - D - I - MAGNETO Diagram

CDI MAGNETO ASSEMBLY

. COIL SOURCE 2

. COIL, LIGHTING 1

COIL, CHARGE

. SPACER

SCREW, PAN

COIL PULSER

SCREW, PAN HEAD

LEAD WIRE ASSEMBLY

. CLAMP

CLAMP, LEAD

SCREW, PAN HEAD (713)

. ROTOR ASSEMBLY

SCREW, PAN

WASHER, PLAIN (646)

FAN

BOLT, HEXAGON DEEP RECESS

WASHER, SPRING

WASHER, PLAIN (646)

COVER, HOLE
