- Partiron
- OEM Parts
- Yamaha
- snowmobile
- 1976
- EX440 1976
TRACK DRIVE

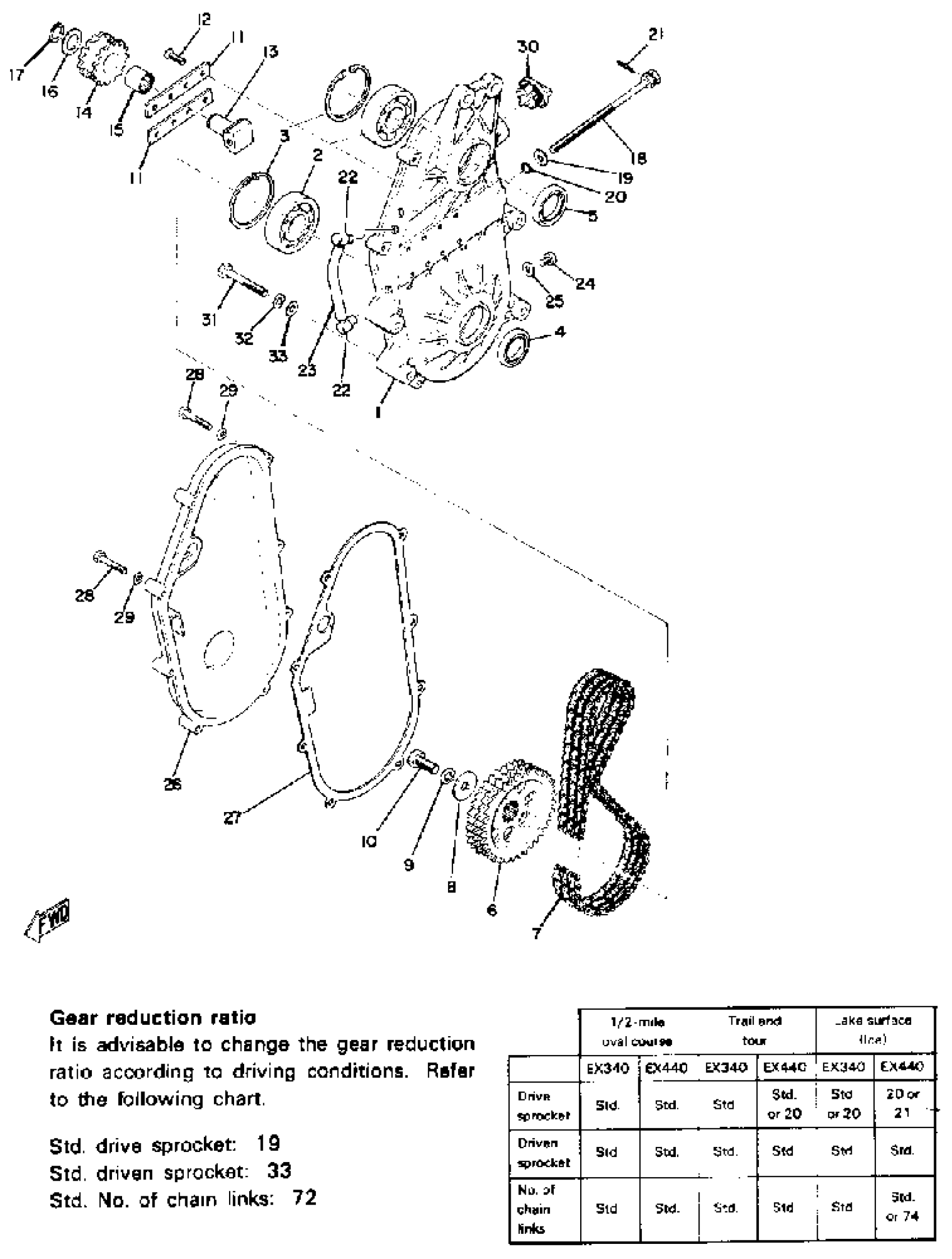

Yamaha EX440 1976 TRACK DRIVE Diagram
#
1
HOUSING, CHAIN
(888-47541-00-00)
Unavailable
2
BEARING (8R9)
93306-30536-00
Unavailable
3
CIRCLIP(MF1)
99009-62500-00
$8.49
4
OIL SEAL (25X44X6-810)
93102-25081-00
$5.60
5
OIL SEAL, SD-TYPE
93102-33140-00
Unavailable
6
SPROCKET, CHN DRVN (31T)
8U9-47587-00-00
Unavailable
6
SPROCKET, CHN DRVN (888-47587-00) (33T)
8U9-47587-10-00
Unavailable
6
SPROCKET, CHN DRVN (878-47587-20) (35T)
8U9-47587-30-00
Unavailable
7
CHAIN 70 (RS35V-3 70L)
94850-35070-00
Unavailable
7
CHAIN 72 (RS35V-3 72L)
94850-35072-00
Unavailable
7
CHAIN 74
94850-35074-00
Unavailable
8
WASHER, PLATE (856)
90201-10321-00
$8.49
9
YBS67-10 WASHER, SPRING
92990-10100-00
$7.49
10
BOLT(6TD)
97017-10025-00
$8.49
11
HOLDER
(888-47613-00-00)
Unavailable
12
SCREW, FLAT
98707-06014-00
Unavailable
13
TENSIONER
878-47611-00-00
Unavailable
14
WHEEL
878-47612-00-00
Unavailable
15
BRG,CYL-CAL ROLLER 20G NT
93317-31701-00
Unavailable
16
WASHER, PLATE
90201-17406-00
Unavailable
17
CIRCLIP(1EY)
99009-17400-00
Unavailable
18
BOLT
90109-08357-00
Unavailable
19
WASHER, PLATE 2562171800
90201-08088-00
Unavailable
20
O-RING
93210-08003-00
Unavailable
21
CLIP
90468-16065-00
Unavailable
22
BREATHER
583-15371-00-00
Unavailable
23
HOSE (L420)
90445-092K1-00
Unavailable
24
SCREW PAN HEAD
98580-06010-00
Unavailable
25
GASKET 838153840000
90430-06016-00
Unavailable
26
CAP, HOUSING
888-47543-00-00
Unavailable
27
GASKET
878-47544-08-00
Unavailable
28
BOLT(3RV)
97014-06035-00
Unavailable
29
WASHER, PLAIN (646)
92990-06600-00
Unavailable
30
CAP 2
857-47559-00-00
Unavailable
31
BOLT, HEXAGON
97013-08055-00
Unavailable
32
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
33
.. WASHER, PLATE
92990-08600-00
Unavailable
