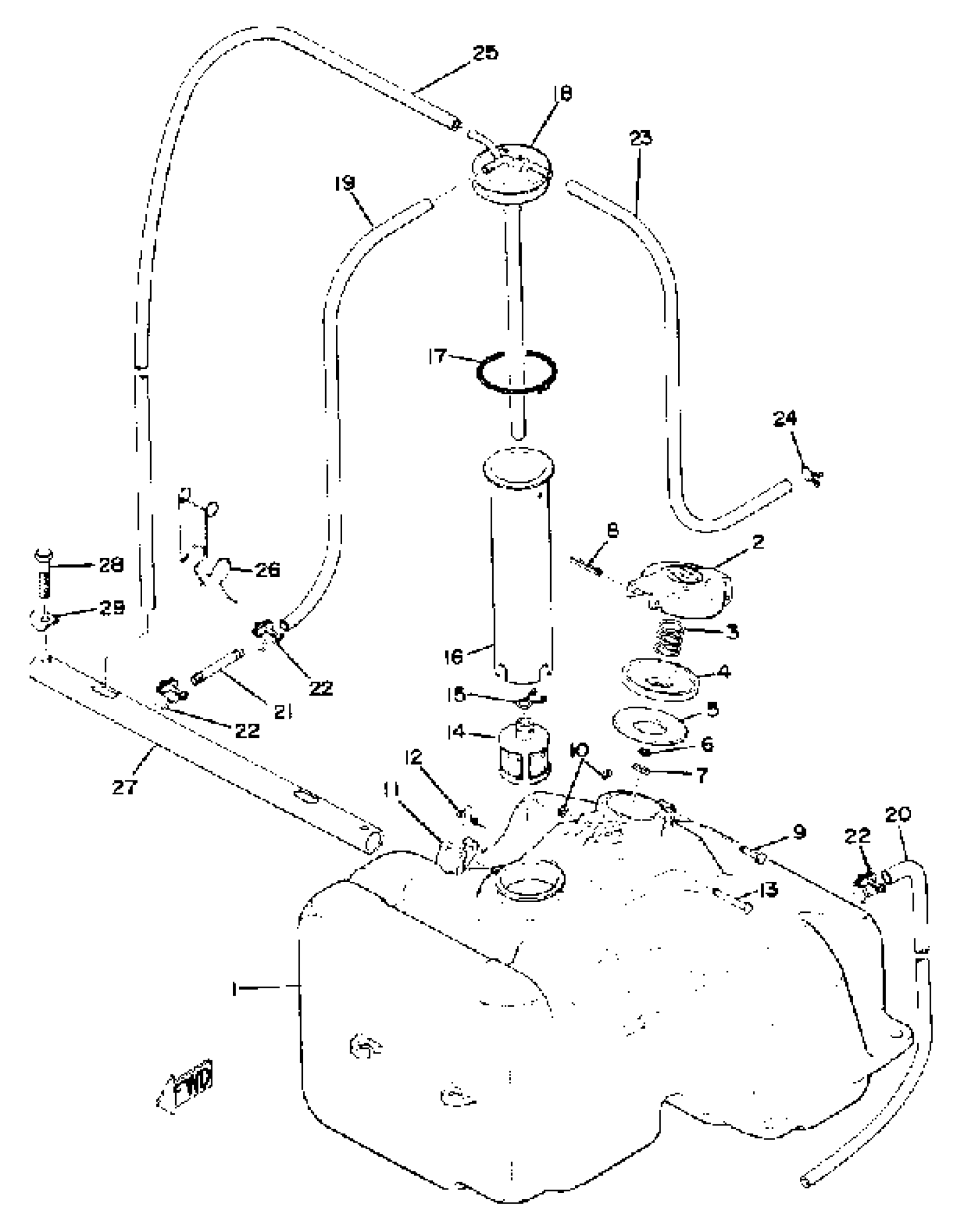

Yamaha EX440 1976 FUEL TANK Diagram

#

Description
Price

1

. FUEL TANK

8A5-24111-00-00

Unavailable

2

BODY, CAP

8A5-24611-00-00

Unavailable

3

SPRING, CAP

90501-20130-00

$8.49

4

DISK,CAP

813-24613-01-00

$20.99

5

GASKET, CAP

256-24612-00-00

Unavailable

6

O-RING (256)

93210-04122-00

$8.49

7

PIN, SPRING

91690-30016-00

Unavailable

8

PIN, SPRING

91609-25032-00

$2.49

9

PIN, SPEC''L SHAPE

90249-03016-00

Unavailable

10

CIRCLIP (604)

93430-02001-00

$8.49

11

HOOK

83M-24628-00-00

$24.99

12

SPRING, TORSION (813-24637-00)

90508-08003-00

Unavailable

13

PIN (813)

90249-03017-00

$7.49

14

FILTER ASSY

8H5-24560-00-00

Unavailable

15

CLIP (8J7)

90467-11009-00

$10.49

16

PIPE, SUCTION 2

838-24336-00-00

Unavailable

17

SPRING, TENSION (8R4)

90506-06261-00

Unavailable

18

PIPE, SUCTION 1

(878-24335-00-00)

Unavailable

19

HOSE

(90446-11082-00)

Unavailable

20

TUBE, FLEXIBLE(3NV)

91A21-07020-00

Unavailable

21

PIPE, JOINT 4

878-24379-00-00

Unavailable

22

CLIP(3BM)

90467-10135-00

Unavailable

23

TUBE, FLEXIBLE VINYL(8AK)

91A20-05080-00

Unavailable

24

CLIP (8L2)

90467-08017-00

Unavailable

25

HOSE (806-24319-00)

90446-09051-00

Unavailable

26

CLAMP

90465-11044-00

Unavailable

27

BAND, TNK FITTING 1

(878-24173-01-00)

Unavailable

28

BOLT (682)

97095-06040-00

Unavailable

29

WASHER, LOCK

(90215-06048-00)

Unavailable
