1976 Yamaha EX440 Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1976 Yamaha EX440, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

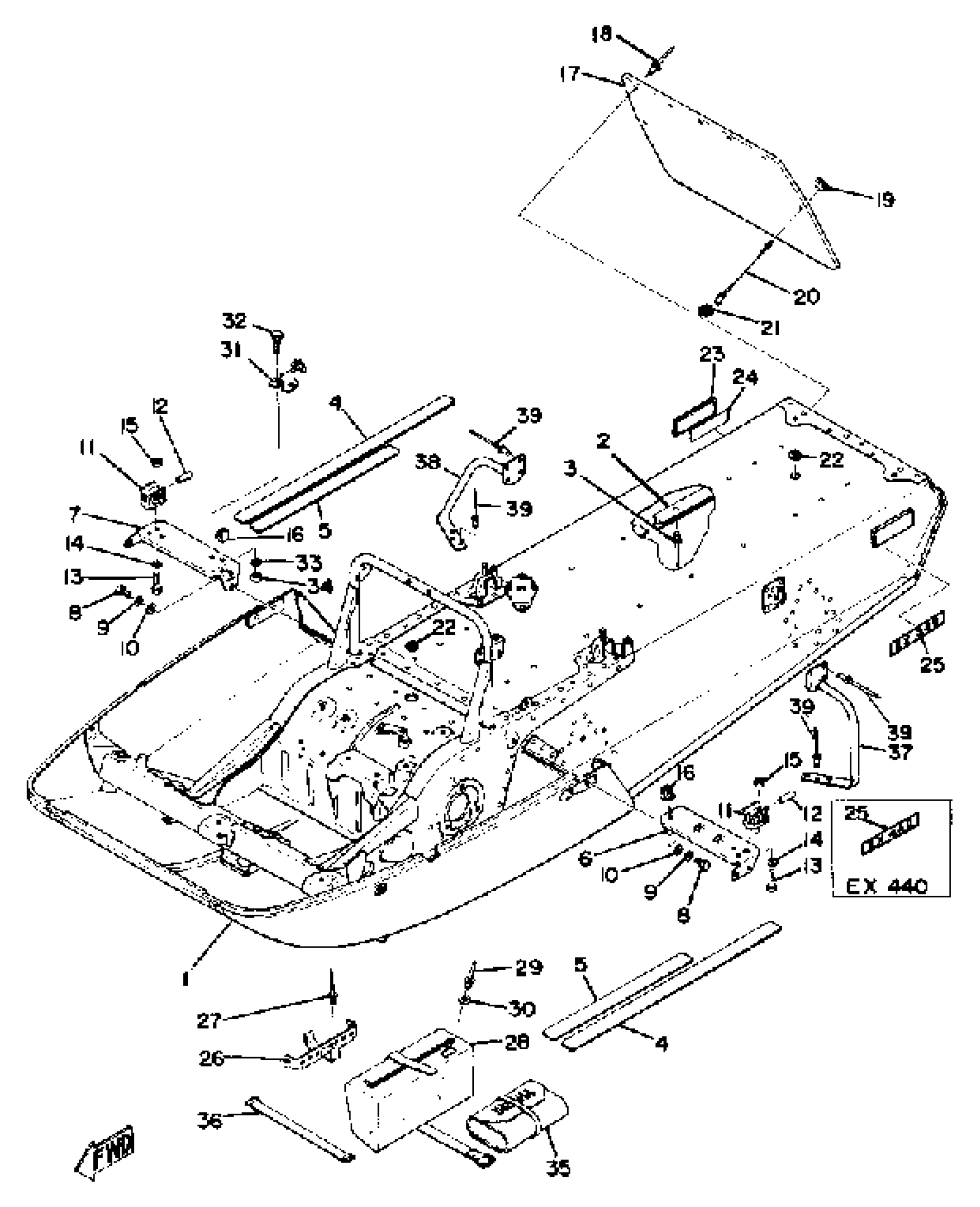

1976 Yamaha EX440 Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

(8A5-21910-00-00)

1
Out of stock

2

PROTECTOR, FRAME

888-21978-00-00

1
Out of stock

3

RIVET, FLAT HEAD

99100-40114-00

1
Out of stock

4

COVER, FOOTREST

878-27413-00-00

1
Out of stock

5

COVER, FOOTREST

878-27423-00-00

1
Out of stock

6

BRACKET 3

(878-23883-00-00)

1
Out of stock

7

BRACKET 4

8A5-23884-00-00

1
Out of stock

8

BOLT(JA9)

90101-08691-00

1

$4.65

In stock

9

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

10

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

11

CLAMP 3

878-77137-01-00

1
Out of stock

12

STOPPER

878-77188-00-00

1
Out of stock

13

BOLT,HEXAGON

97017-06008-00

1
Out of stock

14

WASHER, PLATE

90201-06747-00

1

$6.17

In stock

15

NUT, SELF-LOCKING

95617-06100-00

1

$2.32

In stock

16

CLAMP

90464-04010-00

1
Out of stock

17

FLAP

8V8-77595-00-00

1
Out of stock

18

RIVET, BLIND (8R6)

90267-48086-00

—

$3.49

In stock

19

PLUG, SPEC''L SHAPE

90338-10024-00

1
Out of stock

20

STOPPER, FLAP

878-77596-00-00

1
Out of stock

21

CLIP

(90468-16059-00)

1
Out of stock

22

ORNAMENT, INSTRUMENT PANEL 2

810-77716-00-00

1
Out of stock

23

REAR REFLECTOR ASSY

81G-85130-00-00

—

$33.55

In stock

24

TAPE, REFLECTOR

878-85133-00-00

1
Out of stock

25

EMBLEM 4

(8A5-77354-00-00)

1
Out of stock

25

EMBLEM 4

(8A6-77354-00-00)

1
Out of stock

26

BOX, TOOL

(8A5-77381-00-00)

1
Out of stock

27

RIVET, BLIND (8H4)

90267-48053-00

—

$2.31

In stock

28

SERVICE BAG ASSEMBLY

(8A5-77330-00-00)

1
Out of stock

29

RIVET, BLIND (8H4)

90267-48053-00

—

$2.31

In stock

30

WASHER, PLATE

90201-04027-00

—
Out of stock

31

HOLDER, WIRE

8A5-23874-00-00

1
Out of stock

32

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

33

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

34

NUT, SELF-LOCKING

95617-06100-00

1

$2.32

In stock

35

TOOL KIT

(8A5-28100-10-00)

1
Out of stock

36

BAND, BATTERY

26L-82131-00-00

—

$7.05

In stock

37

RNFCMNT, FTRST 1FOOTREST 1

888-21926-00-00

1
Out of stock

38

RNFCMNT, FTRST 2FOOTREST 2

888-21936-00-00

1
Out of stock

39

RIVET, BLIND (8H4)

90267-48053-00

—

$2.31

In stock
