1976 Yamaha EX440 Bumper Diagram

← All diagrams

Find the part on the Bumper diagram for your 1976 Yamaha EX440, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

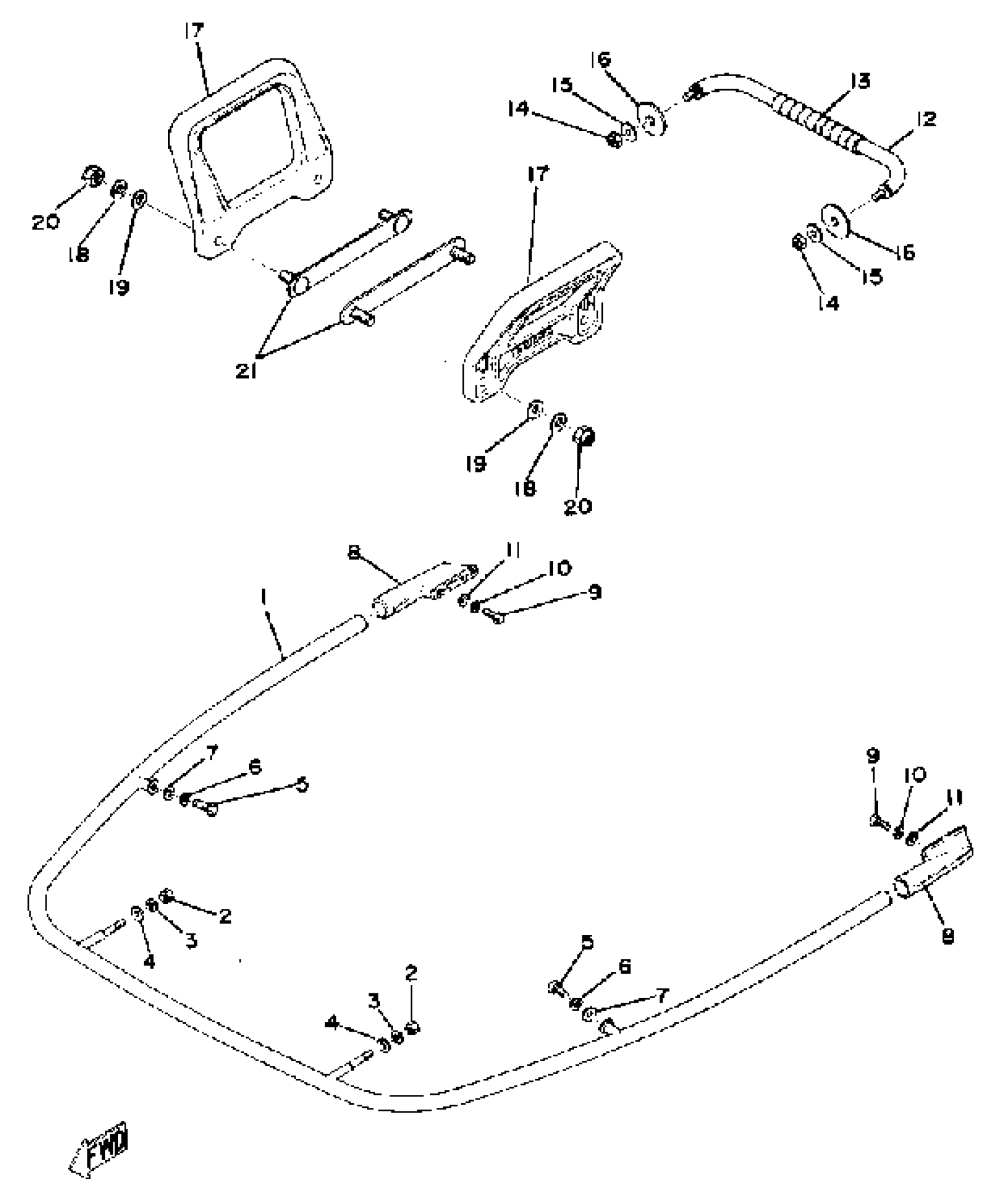

1976 Yamaha EX440 Bumper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT BUMPER

878-77510-00-00

1
Out of stock

2

NUT(6L2)

95333-08600-00

1

$3.20

In stock

3

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

4

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

5

BOLT, HEXAGON

97017-08025-00

1

$7.46

In stock

6

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

7

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

8

END, BUMPER

878-77523-01-00

1
Out of stock

9

BOLT HEXAGON

97001-05018-00

1
Out of stock

10

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

11

WASHER, PLAIN (646)

92990-05600-00

1
Out of stock

12

BUMPER, REAR 1

878-77541-00-00

1
Out of stock

13

COVER, ASSIST GRIP

838-77575-00-00

1
Out of stock

14

NUT, U

95617-08100-00

1

$6.78

In stock

15

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

16

UNAVAILABLE IN PRICE BOOK

90201-81140-0

1
Out of stock

17

GRIP, ASSIST

FJ0-63771-30-00

1

$102.49

In stock

18

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

19

WASHER, PLATE (4W3)

90201-086A3-00

—

$6.29

In stock

20

NUT, CROWN

95303-08800-00

—

$7.52

In stock

21

BRKT, ASSIST GRIP

898-77576-00-00

1
Out of stock
