- EX440 1976
CRANK-PISTON

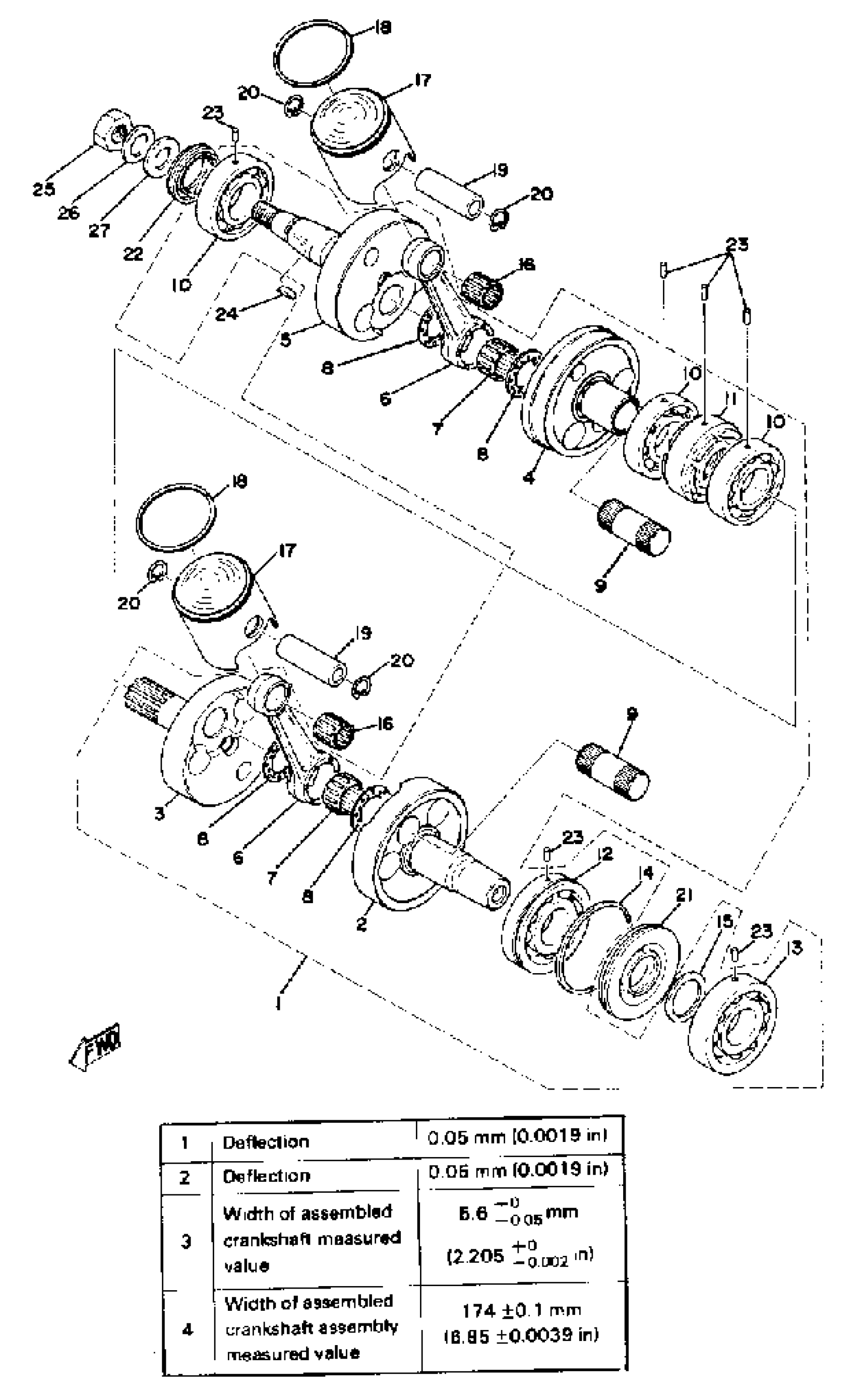

Yamaha EX440 1976 CRANK-PISTON Diagram
#
1
CRANKSHAFT ASSEMBLY
8A5-11400-00-00
Unavailable
2
. CRANK 1
8A5-11412-00-00
Unavailable
3
CRANK 2
(821-11422-01-00)
Unavailable
4
CRANK 3
(821-11432-01-00)
Unavailable
5
CRANK 4
(821-11442-00-00)
Unavailable
6
. ROD, CONNECTING (838-11651-00)
8A7-11651-00-00
Unavailable
7
BEARING
93310-424E8-00
Unavailable
8
WASHER (152-11685-00)
90209-24073-00
$14.99
9
. PIN, CRANK 1
857-11681-00-00
Unavailable
10
BEARING(8V0)
93306-20633-00
$76.99
11
. SEAL, LABYRINTH 1
8A5-11515-00-00
Unavailable
12
BEARING (8R6)
93306-30625-00
$83.99
13
BEARING (8R6)
93306-30625-00
$83.99
14
CIRCLIP, OUTER
93440-78011-00
Unavailable
15
WASHER (8H0)
90201-34683-00
$10.49
16
BRG,CYL-CAL ROLLER 15.6G KY
93310-218A6-00
Unavailable
17
PISTON STD
99999-02609-00
Unavailable
17
PISTON 1 O/S 0.25 (8A5-11635-00)
8A5-11635-01-00
Unavailable
17
PISTON 2 O/S 0.50 (8A5-11636-00)
8A5-11636-01-00
Unavailable
17
PISTON,1.00
99999-02612-00
Unavailable
17
PISTON 4 O/S 1.00
8A5-11638-01-00
Unavailable
17
PISTON STD
8A6-11631-01-96
Unavailable
17
PISTON 1 O/S 0.25
8A6-11635-01-00
Unavailable
17
PISTON 2 O/S 0.50
(8A6-11636-01-00)
Unavailable
17
PISTON 3 O/S 0.75
8A6-11637-01-00
Unavailable
17
PISTON 4 O/S 1.00
(8A6-11638-01-00)
Unavailable
18
RING, PISTON (STD)
820-11611-00-00
Unavailable
18
RING, PISTON (1ST O.S)
820-11611-10-00
Unavailable
18
RING, PISTON (2ND O.S)
820-11611-20-00
Unavailable
18
RING, PISTON 3RD
820-11611-30-00
Unavailable
18
RING, PISTON 4TH
820-11611-40-00
Unavailable
18
RING, PISTON
846-11611-00-00
Unavailable
18
RING, PISTON 1ST
846-11611-10-00
Unavailable
18
RING, PISTON 2ND
846-11611-20-00
Unavailable
18
RING, PISTON 3RD
(846-11611-30-00)
Unavailable
18
RING, PISTON 4TH
846-11611-40-00
Unavailable
19
PIN, PISTON
168-11633-00-00
Unavailable
19
PIN, PISTON
818-11633-00-00
Unavailable
20
CLIP 6041163400
93450-20026-00
Unavailable
21
OIL SEAL (878).
93103-32095-00
Unavailable
22
OIL SEAL(83R)
93103-32156-00
Unavailable
23
PIN,DOWEL (168)
93604-12037-00
Unavailable
24
KEY, WOOD RUFF (324)
90280-05014-00
Unavailable
25
NUT
90170-16425-00
Unavailable
26
WASHER(JN5)
92907-16100-00
Unavailable
27
WASHER, PLATE (32N)
90201-163G6-00
Unavailable
