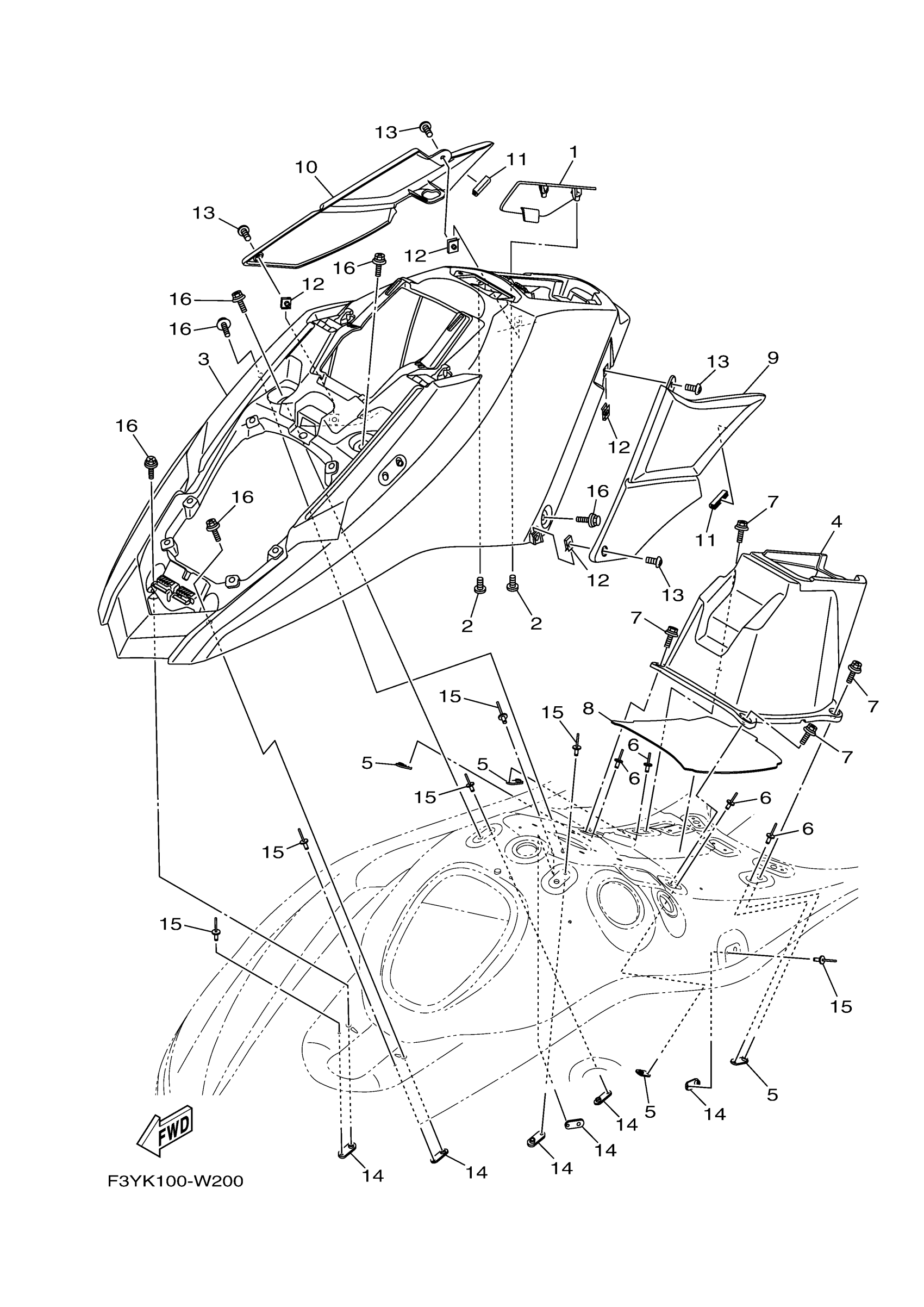

Yamaha EX1050DW (EX LIMITED) F3YN 2021 ENGINE HATCH 1 Diagram

#

Description

Price

1

SEAL

F3Y-U2723-10-00

Unavailable

2

SCREW

F2S-U13C1-00-00

Unavailable

3

COVER, ENGINE HATCH

F3Y-U516N-10-00

Unavailable

4

BOX GLOVE

F3Y-U516P-00-00

Unavailable

5

PLATE, FIX

F2X-U5175-00-00

Unavailable

6

RIVET (EU0)

90267-48938-00

Unavailable

7

BOLT, WITH WASHER

90119-06878-00

Unavailable

8

MAT 1

F3Y-U759B-00-00

Unavailable

9

PAD, KNEE

F3Y-U353B-00-00

Unavailable

10

PAD, KNEE

F3Y-U353B-10-00

Unavailable

11

TRIM, 1

F3Y-U828H-30-00

Unavailable

12

NUT, SPRING(GJ3)

90183-06902-00

$11.49

13

BOLT,HEX. SOCKET B

90111-06874-00

Unavailable

14

PLATE, FIX

F2X-U5175-00-00

Unavailable

15

RIVET (EU0)

90267-48938-00

Unavailable

16

BOLT, WITH WASHER

90119-06820-00

Unavailable
