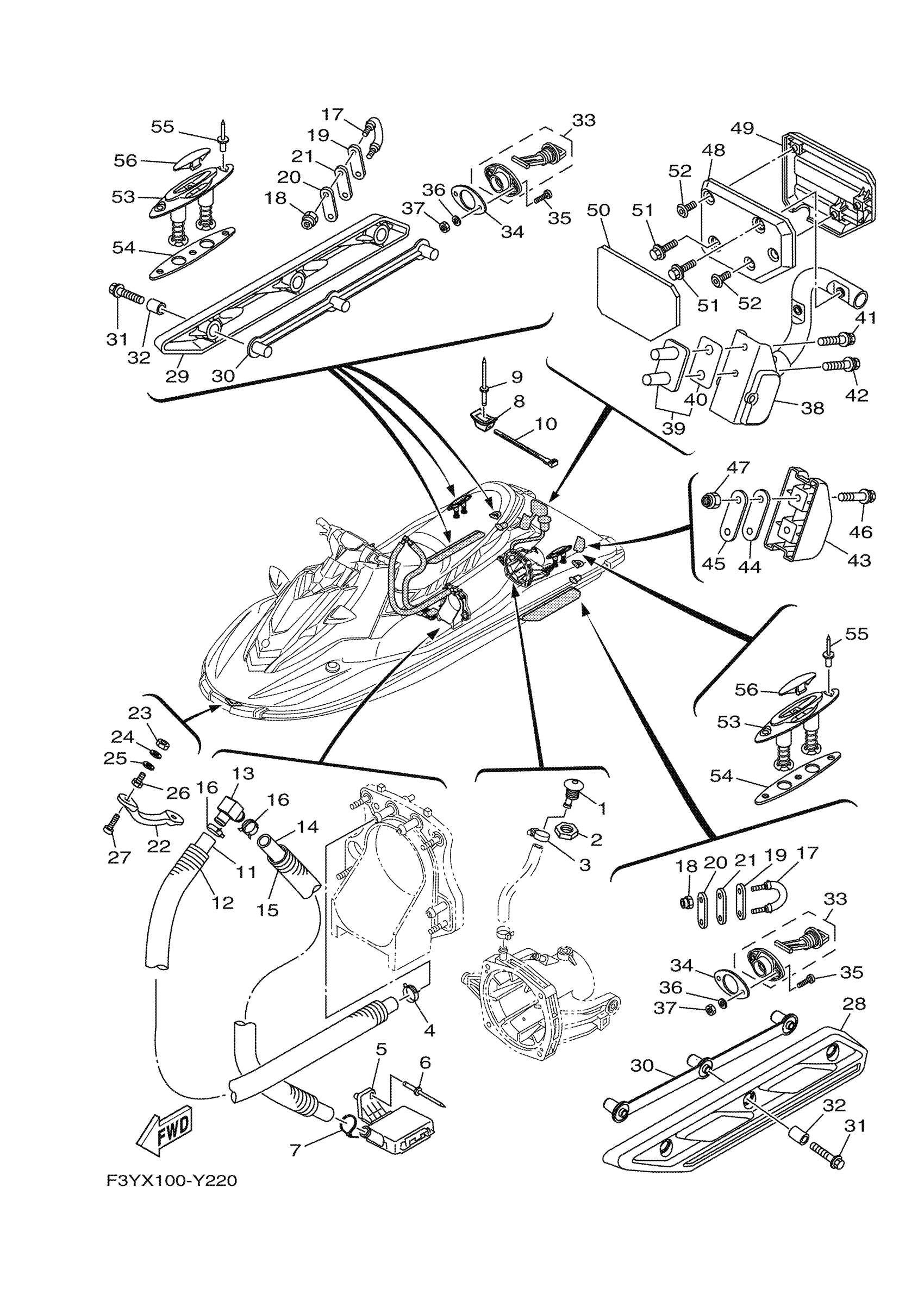

Yamaha EX1050DA (EX LIMITED) F6N1 2024 HULL & DECK Diagram

#

Description
Price

1

SPOUT

F1W-U269B-00-00

Unavailable

2

NUT

EU0-61652-00-00

Unavailable

3

BAND, HOSE 18

90601-118UF-00

Unavailable

4

CLIP

90467-190A2-00

Unavailable

5

STRAINER, BILGE

F1B-U761D-02-00

Unavailable

6

RIVET, BLIND

90267-489U8-00

Unavailable

7

CLAMP

90465-10098-00

Unavailable

8

BASE, CLAMP

F1W-U828M-00-00

Unavailable

9

RIVET, BLIND

90267-48806-00

Unavailable

10

BAND

90601-200U2-00

Unavailable

11

HOSE 2

6GA-U771G-00-00

Unavailable

12

TUBE,2

6GA-U773E-00-00

Unavailable

13

JOINT, HOSE

68N-5112T-00-00

Unavailable

14

HOSE

F5P-U784C-00-00

Unavailable

15

TUBE

6GA-U773D-00-00

Unavailable

16

CLIP

90467-190A2-00

Unavailable

17

STERN EYE

F2N-U1628-10-00

Unavailable

18

NUT, NYLON (6J8)

95780-08300-00

Unavailable

19

PLATE A

GP7-U4953-10-00

Unavailable

20

PLATE A

GP7-U4953-10-00

Unavailable

21

PACKING

F1B-U1653-03-00

Unavailable

22

BOW EYE 1

F1K-61624-00-00

Unavailable

23

NUT.HEX.(COARS)

99780-12600-00

Unavailable

24

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

25

WASHER

F0X-61637-00-00

Unavailable

26

NUT

F0X-61652-01-00

Unavailable

27

BOLT, HEXAGON SOCKET HEAD

90110-06280-00

Unavailable

28

STABILIZER LH

F3Y-U883N-10-00

Unavailable

29

STABILIZER RH

F3Y-U883P-10-00

Unavailable

30

BRACKET,STABILIZER

F3Y-U883T-00-00

Unavailable

31

BOLT,WASHER BASED

90105-088F9-00

Unavailable

32

SPACER

F2N-U8169-10-00

Unavailable

33

DRAIN PLUG ASSY

F1S-U2280-02-00

Unavailable

34

PACKING, DRAIN

F1S-U2285-01-00

Unavailable

35

SCREW, PAN HEAD

9788R-05025-00

Unavailable

36

WASHER

9299R-05200-00

Unavailable

37

NUT, FLANGE

9572R-05300-00

Unavailable

38

LADDER, STEP ASSY

F3Y-U278A-02-00

Unavailable

39

BRACKET, LADDER LH

F2S-U278F-01-00

Unavailable

40

PACKING, BRKT. 1

F2S-U278H-01-00

Unavailable

41

BOLT, WITH WASHER

90119-08844-00

Unavailable

42

BOLT, WITH WASHER

90119-08844-00

Unavailable

43

BOX, STERN

F3Y-U882G-00-00

Unavailable

44

PACKING

F1B-U1653-03-00

Unavailable

45

PLATE A

GP7-U4953-10-00

Unavailable

46

BOLT, WITH WASHER

90119-08820-00

Unavailable

47

NUT, NYLON (6J8)

95780-08300-00

Unavailable

48

STEP

F3Y-U882F-00-00

Unavailable

49

PLATE, STEP 1

F3Y-U884R-00-00

Unavailable

50

COVER STEP 1

F3Y-U4994-00-00

Unavailable

51

BOLT, WITH WASHER

90119-06892-00

Unavailable

52

SCREW

F2S-U13C1-00-00

Unavailable

53

CLEAT ASSY.

F4G-U163A-02-00

Unavailable

54

PACKING

F4G-U2284-10-00

Unavailable

55

RIVET, BLIND

90267-489U2-00

Unavailable

56

COVER

F1X-U826D-01-00

Unavailable
