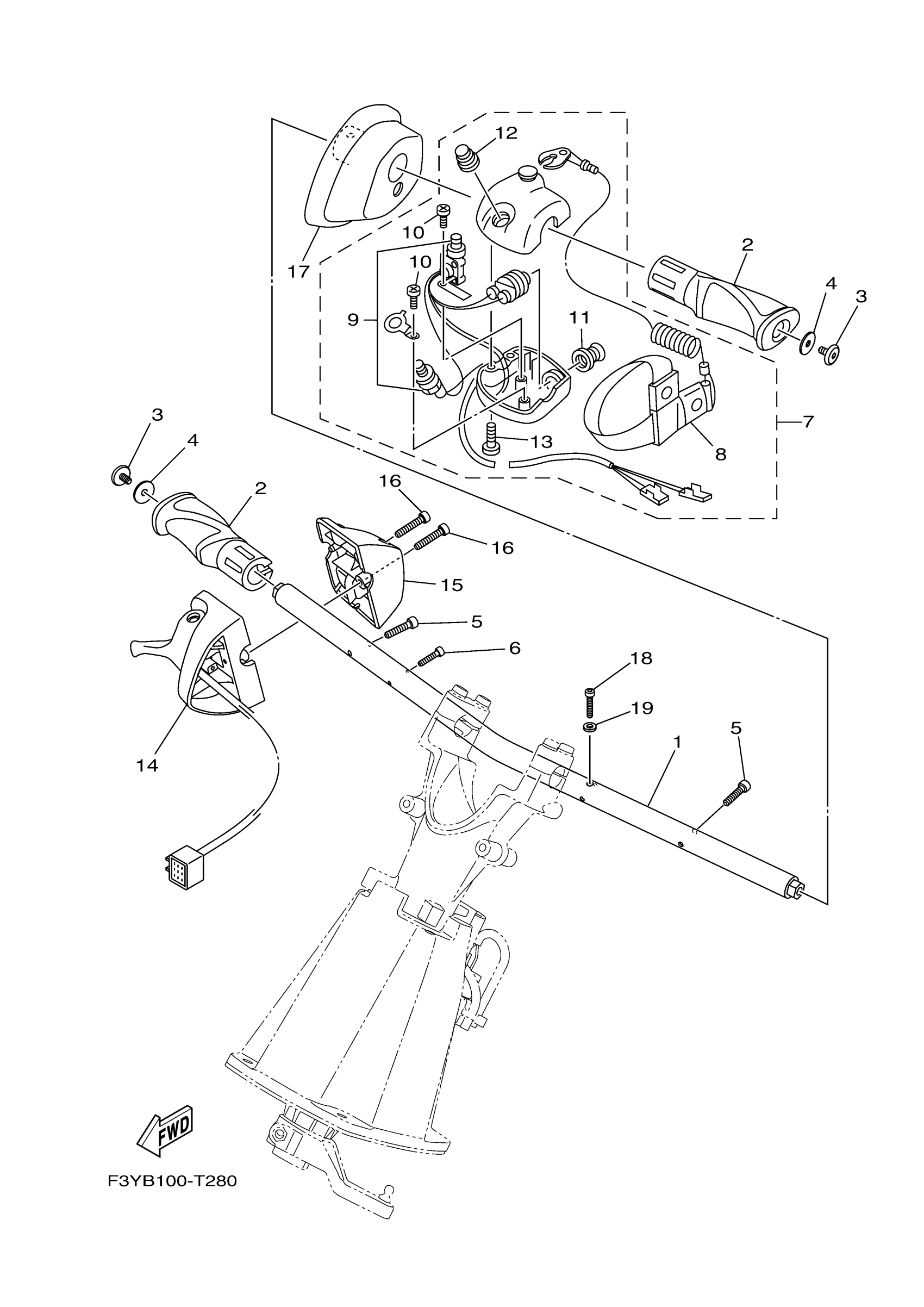

Yamaha EX1050CW (EX) F3YM 2021 STEERING 1 Diagram

#

Description
Price

1

HANDLE

F3Y-U1552-00-00

$98.49

2

GRIP,HANDLE

F2S-U155D-03-00

$34.45

3

BOLT, HEXAGON SOCKET HEAD

90110-06383-00

$3.79

4

WASHER, PLATE

90201-068G0-00

$1.04

5

BOLT

F2S-U1516-00-00

$2.93

6

BOLT

91380-04030-00

$0.86

7

SWITCH BOX ASSY

F3Y-68310-00-00

$145.53

8

. LANYARD, STOP SWITCH

EW2-68348-00-00

$25.35

9

SWITCH BOX ASSY

GA7-68310-01-00

$211.14

10

SCREW, PAN HEAD (J10)

98580-03008-00

$2.14

11

. STOP BUTTON COMP

FK7-68312-02-00

$13.02

12

. START BUTTON COMP

FK7-68313-02-00

$10.96

13

SCREW, PANHEAD (A93)

98580-05525-00

$1.43

14

THROTTLE LEVER COMP

6CS-14305-13-00

$654.99

15

CASE

6EX-82154-00-00

$26.85

16

BOLT, THROTTLE

6CS-6725F-00-00

$4.55

17

SPACER

F3Y-U143G-00-00

$6.34

18

BOLT

91380-04030-00

$0.86

19

WASHER, PLATE

90201-04810-00

$0.86
