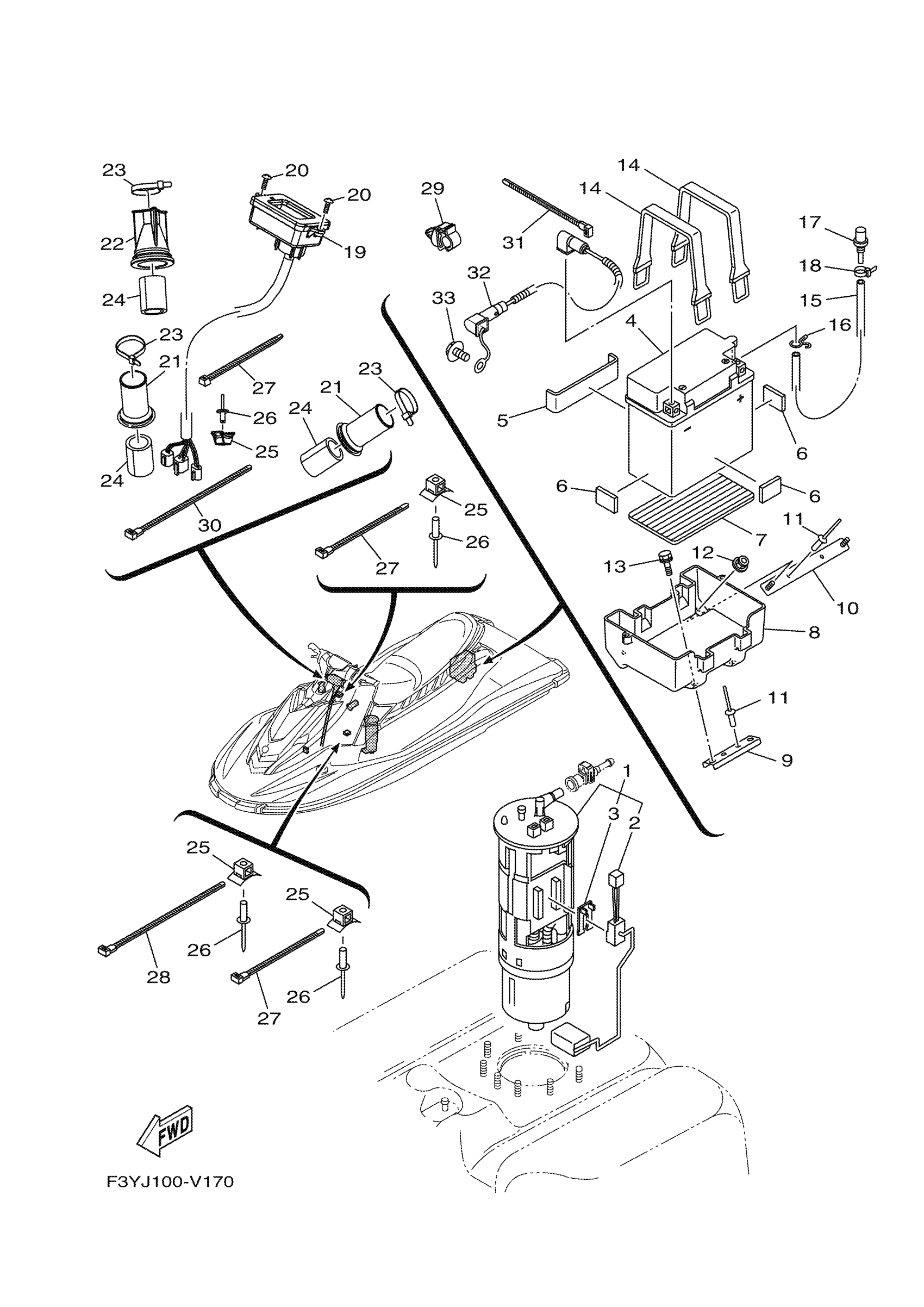

Yamaha EX1050CV (EX) F3YJ 2020 ELECTRICAL 3 Diagram

#

Description
Price

1

FUEL PUMP COMP.

6S5-13907-05-00

$1,050.38

2

FUEL SENDER ASSY SET

99999-04571-00

Unavailable

3

DAMPER, STOPPER

60E-82556-10-00

$18.49

4

YB16CLB YUASA BATTERY

YB1-6CLB0-00-00

$101.75

5

PAD, BATTERY

F1K-U8221-00-00

$2.66

6

PAD, BATTERY

EU0-U8221-31-00

$1.65

7

PAD, BATTERY

F1S-U8221-00-00

$2.75

8

CASE, BATTERY

F2S-U8211-00-00

$9.62

9

PLATE, BASE 2

F2S-U8592-00-00

$5.83

10

PLATE, BASE 3

F2S-U8593-00-00

$5.45

11

RIVET (EU0)

90267-48938-00

$5.00

12

NUT, LOCK

F2N-U142L-00-00

$1.00

13

BOLT, WITH WASHER

90119-06820-00

$3.52

14

BAND,BATTERY 1

EU0-U821D-00-00

$7.33

15

HOSE, AIR VENT

F0D-U785G-11-00

Unavailable

16

CLIP

90467-089U1-00

$1.44

17

NIPPLE

GJ3-6215F-00-00

$9.08

18

CLAMP

90465-10098-00

$1.68

19

METER ASSY

F4L-U820A-00-00

$133.32

20

SCREW

F2S-U7823-01-00

$2.35

21

GROMMET

GU2-6822E-01-00

$24.98

22

GROMMET

F3J-U822E-01-00

$5.59

23

CLAMP

90464-32801-00

$1.23

24

PACKING, HOSE 2

GJ1-U7578-22-00

Unavailable

25

BASE, CLAMP

F1W-U828M-00-00

$1.23

26

RIVET, BLIND

90267-489U6-00

$1.37

27

CLAMP

90464-32801-00

$1.23

28

BAND

90601-200U2-00

$3.16

29

CLAMP

90464-10008-00

Unavailable

30

BAND

90601-200U2-00

$3.16

31

CLAMP

90464-32801-00

$1.23

32

WIRE, MINUS LEAD

6GA-82116-00-00

$52.99

33

BOLT, WITH WASHER

97513-08514-00

$1.36
