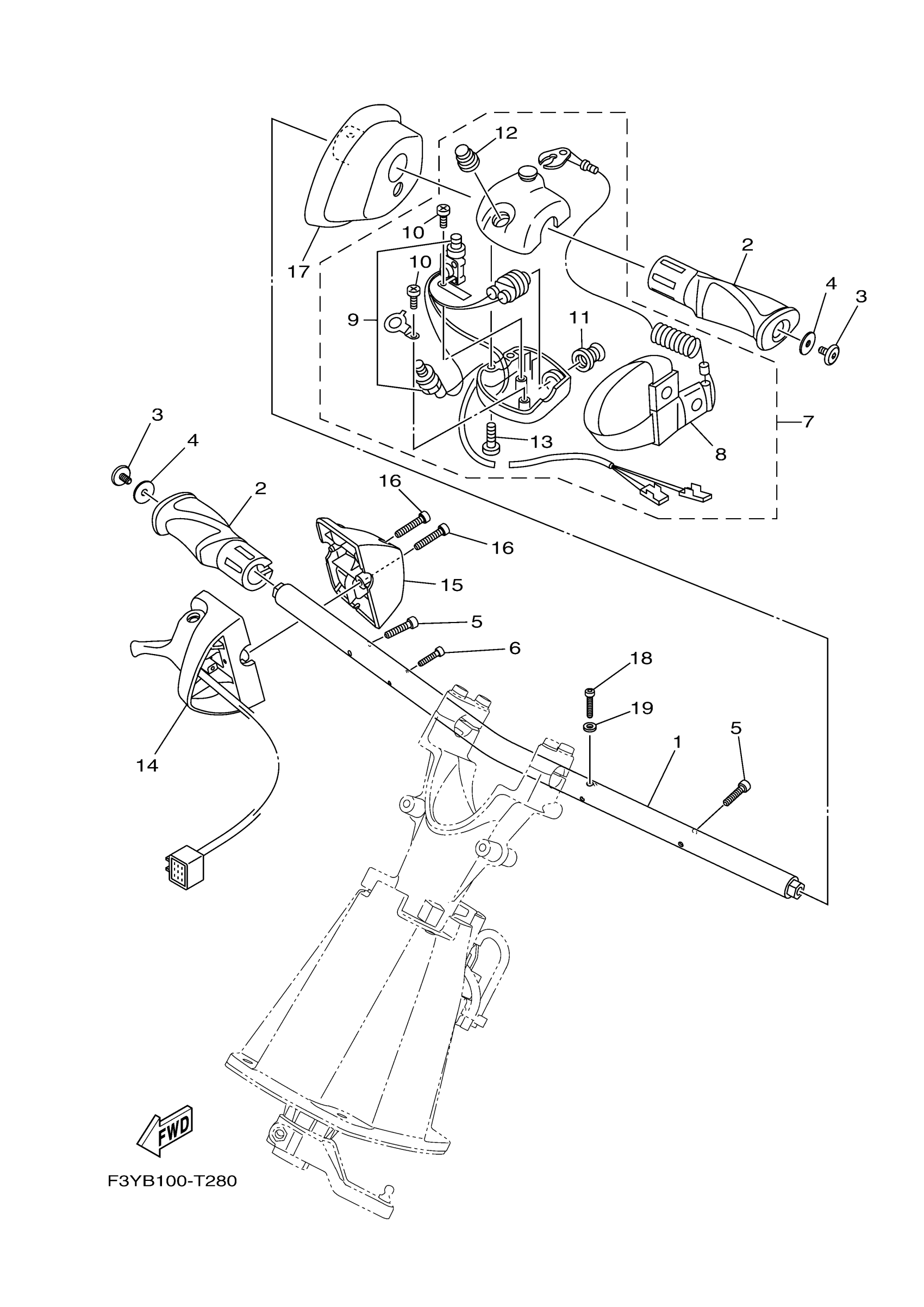

Yamaha EX1050CU (EX) F3YF 2019 STEERING 1 Diagram

#

Description
Price

1

HANDLE

F3Y-U1552-00-00

$99.98

2

GRIP,HANDLE

F2S-U155D-03-00

$21.08

3

BOLT, HEXAGON SOCKET HEAD

90110-06383-00

$3.70

4

WASHER, PLATE

90201-068G0-00

$0.93

5

BOLT

F2S-U1516-00-00

$2.80

6

BOLT

91380-04030-00

$0.91

7

SWITCH BOX ASSY

F3Y-68310-00-00

$145.98

8

. LANYARD, STOP SWITCH

EW2-68348-00-00

$25.35

9

SWITCH BOX ASSY

GA7-68310-01-00

$222.71

10

SCREW, PAN HEAD (J10)

98580-03008-00

$2.14

11

. STOP BUTTON COMP

FK7-68312-02-00

$12.82

12

. START BUTTON COMP

FK7-68313-02-00

$11.31

13

SCREW, PANHEAD (A93)

98580-05525-00

$1.43

14

THROTTLE LEVER COMP

6CS-14305-13-00

$690.89

15

CASE

6EX-82154-00-00

$27.26

16

BOLT, THROTTLE

6CS-6725F-00-00

$4.44

17

SPACER

F3Y-U143G-00-00

$6.44

18

BOLT

91380-04030-00

$0.91

19

WASHER, PLATE

90201-04810-00

$0.86
