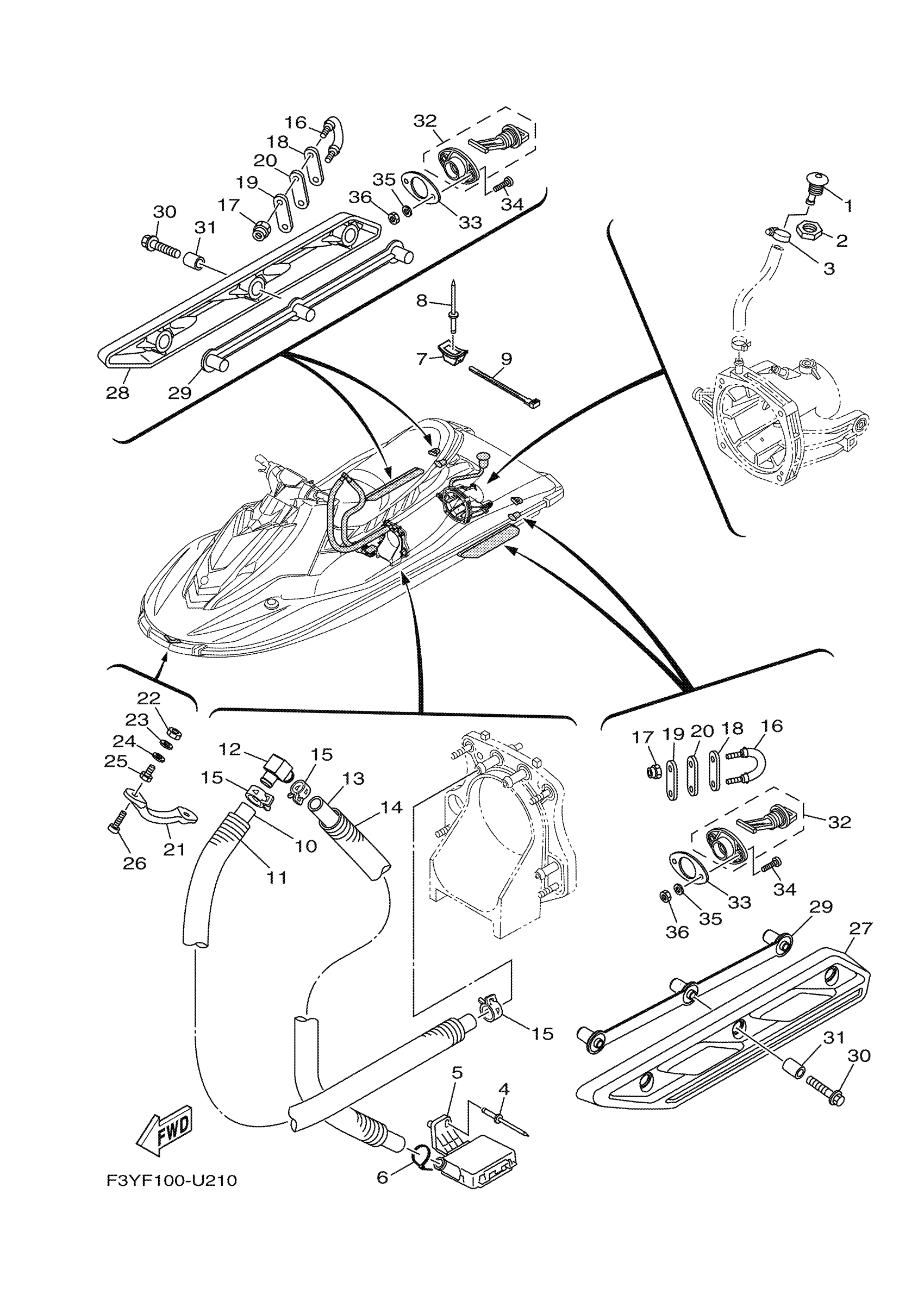

Yamaha EX1050CU (EX) F3YF 2019 HULL & DECK Diagram

#

Description
Price

1

SPOUT

F1W-U269B-00-00

Unavailable

2

NUT

EU0-61652-00-00

Unavailable

3

BAND, HOSE 18

90601-118UF-00

Unavailable

4

STRAINER, BILGE

F1B-U761D-02-00

Unavailable

5

RIVET, BLIND

90267-489U8-00

Unavailable

6

CLAMP

90465-10098-00

Unavailable

7

BASE, CLAMP

F1W-U828M-00-00

Unavailable

8

RIVET, BLIND

90267-489U6-00

Unavailable

9

BAND

90601-200U2-00

Unavailable

10

HOSE 2

6GA-U771G-00-00

Unavailable

11

TUBE,2

6GA-U773E-00-00

Unavailable

12

JOINT, HOSE

68N-5112T-00-00

Unavailable

13

HOSE

F5P-U784C-00-00

Unavailable

14

TUBE

6GA-U773D-00-00

Unavailable

15

CLIP

90467-190A2-00

Unavailable

16

STERN EYE

F2N-U1628-02-00

Unavailable

17

NUT, NYLON (6J8)

95780-08300-00

Unavailable

18

PLATE A

GP7-U4953-10-00

Unavailable

19

PLATE A

GP7-U4953-10-00

Unavailable

20

PACKING

F1B-U1653-03-00

Unavailable

21

BOW EYE 1

F1K-61624-00-00

Unavailable

22

NUT.HEX.(COARS)

99780-12600-00

Unavailable

23

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

24

WASHER

F0X-61637-00-00

Unavailable

25

NUT

F0X-61652-01-00

Unavailable

26

BOLT, HEXAGON SOCKET HEAD

90110-06280-00

Unavailable

27

STABILIZER LH

F3Y-U883N-00-00

Unavailable

28

STABILIZER RH

F3Y-U883P-00-00

Unavailable

29

BRACKET,STABILIZER

F3Y-U883T-00-00

Unavailable

30

BOLT,WASHER BASED

90105-088F9-00

Unavailable

31

SPACER

F2N-U8169-10-00

Unavailable

32

DRAIN PLUG ASSY

F1S-U2280-02-00

Unavailable

33

PACKING, DRAIN

F1S-U2285-01-00

Unavailable

34

SCREW, PAN HEAD

9788R-05025-00

Unavailable

35

WASHER

9299R-05200-00

Unavailable

36

NUT, FLANGE

9572R-05300-00

Unavailable
