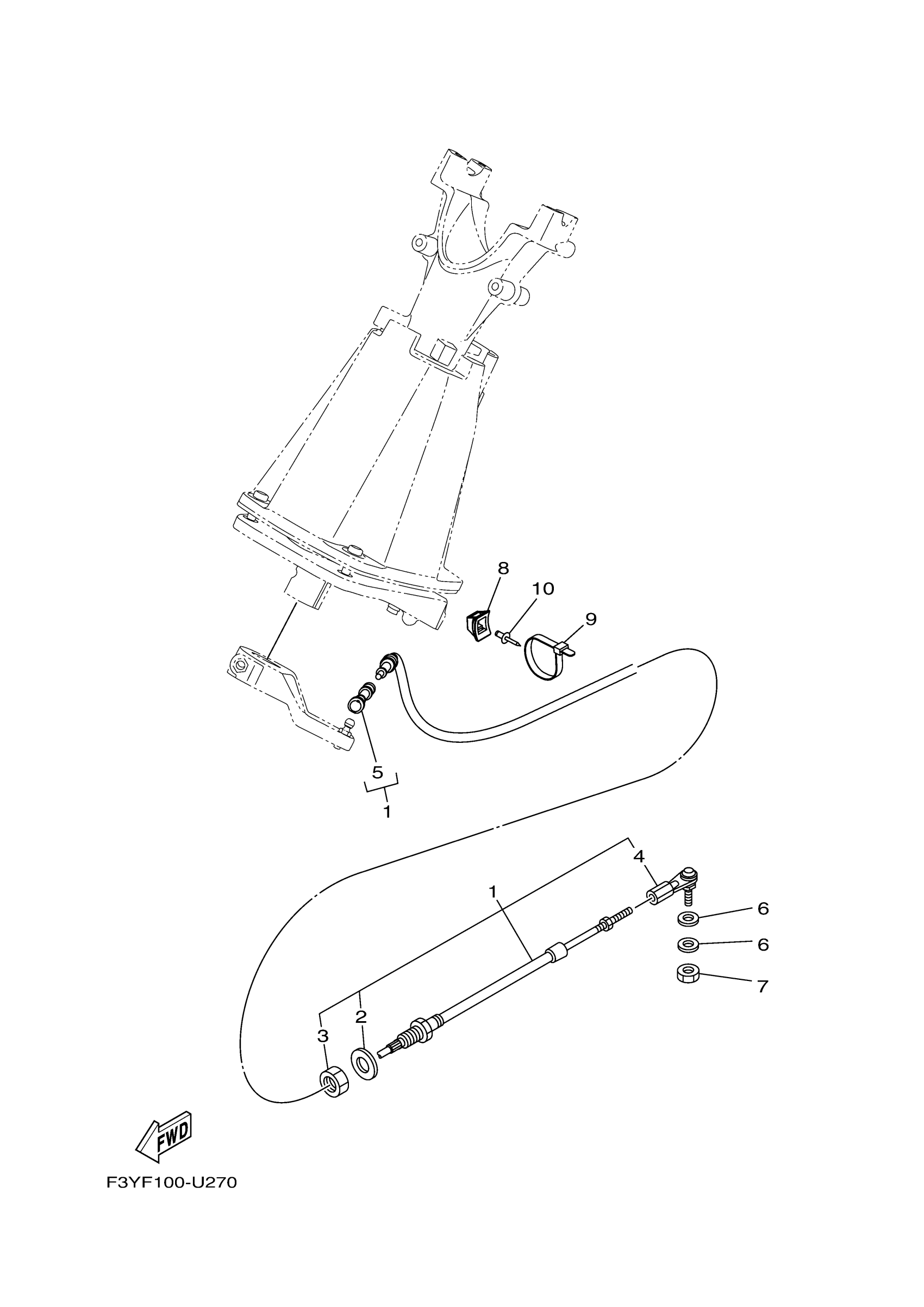

Yamaha EX1050CU (EX) F3YF 2019 CONTROL CABLE Diagram

#

Description
Price

1

CABLE, STEERING

F3Y-61481-04-00

$252.22

2

. PACKING C

F1B-61438-00-00

$2.47

3

NUT

F1B-6151S-01-00

$13.63

4

. STUD, JOINT BALL

F1B-61461-02-00

$90.48

5

. BALL JOINT ASSY

F2N-61460-00-00

$47.75

6

WASHER, PLATE

90201-06906-00

$2.80

7

NUT

9538R-06700-00

$1.07

8

BASE, CLAMP

F1W-U828M-00-00

$1.29

9

CLAMP

90464-32801-00

$1.29

10

RIVET, BLIND

90267-489U6-00

Unavailable
