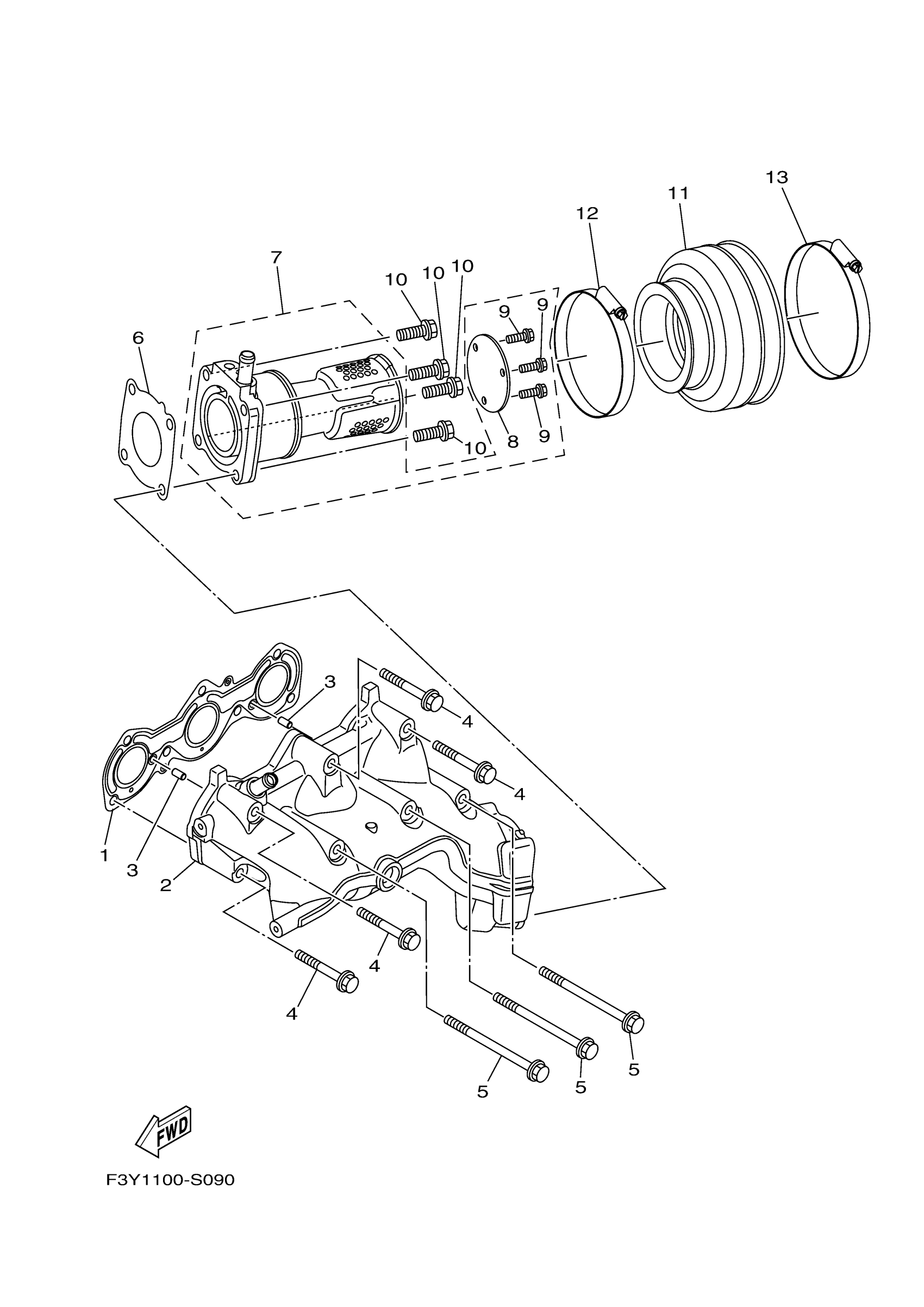

Yamaha EX1050CT (EX) F3YB 2018 EXHAUST 1 Diagram

#

Description
Price

1

. GASKET, EXHAUST PIPE

6GA-14613-00-00

$32.67

2

MUFFLER 1

6GA-14711-00-00

$514.91

3

PIN, DOWEL (614)

93606-12019-00

$3.50

4

BOLT, WITH WASHER

90119-08034-00

$3.41

5

BOLT, WITH WASHER

90119-08097-00

$5.31

6

. GASKET, MUFFLER DAMPER 1

6GA-14739-00-00

$7.59

7

PIPE, TAIL

6GA-14784-00-00

$214.91

8

. PLATE, SILENCER 6

6GA-1469W-00-00

$8.19

9

BOLT, FLANGE(2UJ)

95024-06016-00

$6.22

10

BOLT, FLANGE (3JPE)

95024-08030-00

$8.54

11

PIPE, OUTLET

6GA-14752-00-00

$85.06

12

HOSE CLAMP ASSY

90450-99015-00

$14.81

13

HOSE CLAMP ASSY

90450-99810-00

$5.45
