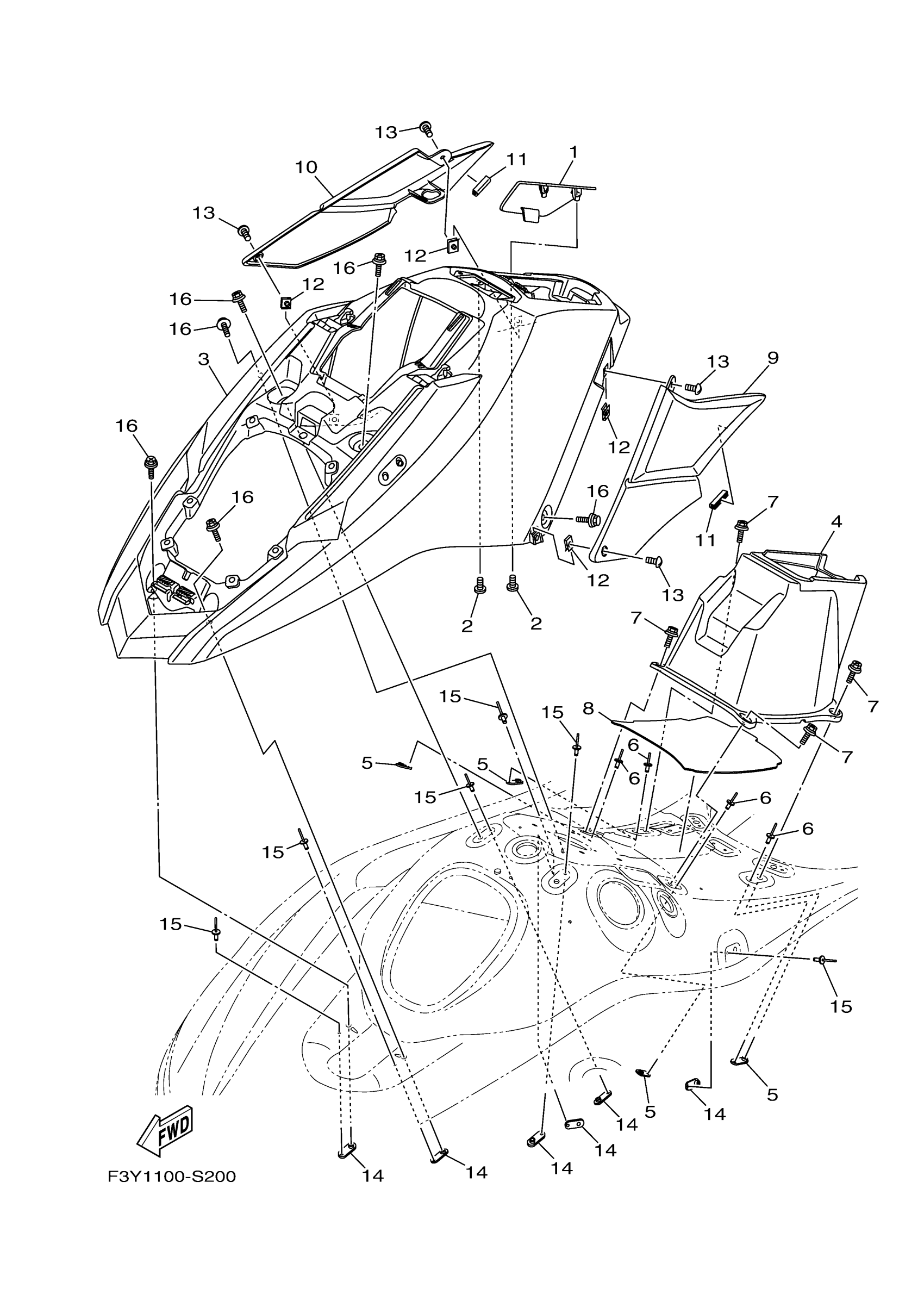

Yamaha EX1050CT (EX) F3YB 2018 ENGINE HATCH 1 Diagram

Description

Price

SEAL

F3Y-U2723-00-00

$5.45

SCREW

F2S-U13C1-00-00

$2.36

COVER, ENGINE HATCH

F3Y-U516N-00-00

$133.32

BOX GLOVE

F3Y-U516P-00-00

$19.68

PLATE, FIX

F2X-U5175-00-00

$1.80

RIVET (EU0)

90267-48938-00

$5.00

BOLT, WITH WASHER

90119-06878-00

$3.43

MAT 1

F3Y-U759B-00-00

$14.38

PAD, KNEE

F3Y-U353B-00-00

$16.65

PAD, KNEE

F3Y-U353B-10-00

$16.65

TRIM, 1

F3Y-U828H-00-00

$5.45

NUT, SPRING(GJ3)

90183-06902-00

$8.53

SCREW

F4G-U7823-00-00

Unavailable
