2017 Yamaha EX (EX1050CS) Intake Diagram

← All diagrams

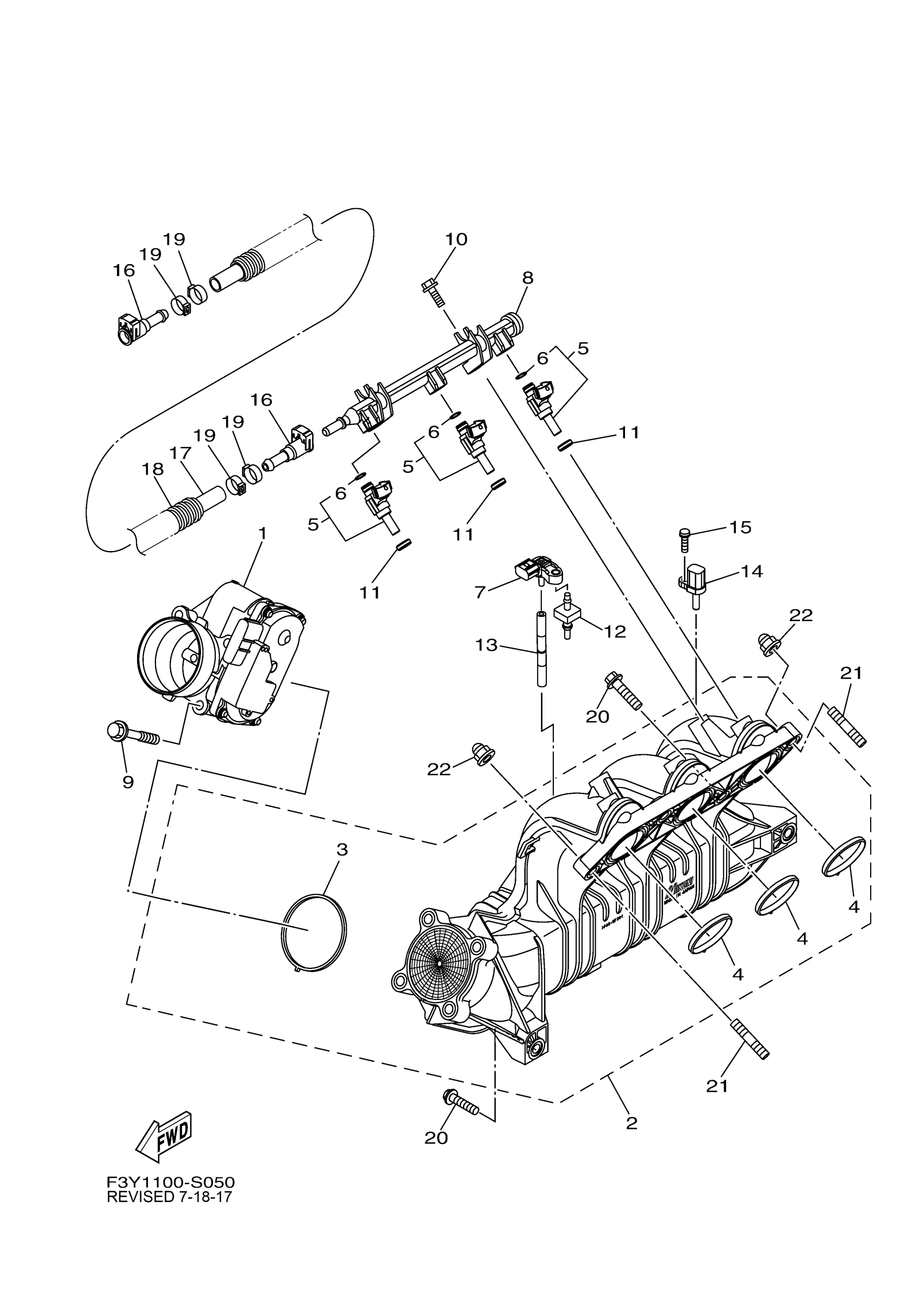

Find the part on the Intake diagram for your 2017 Yamaha EX (EX1050CS), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Yamaha EX (EX1050CS) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

THROTTLE BODY ASSY

6EY-13750-01-00

1
Out of stock

2

MANIFOLD, INTAKE 1

6EY-13641-03-00

—

$1,228.49

In stock

3

. GASKET, INSULATING

6EY-14156-00-00

1

$50.99

In stock

4

. GASKET

6EY-14126-00-00

1

$15.43

In stock

5

INJECTOR

6EY-13761-00-00

1

$125.49

In stock

6

. O-RING

68V-1416A-00-00

1

$11.47

In stock

7

SENSOR, PRESSURE

5S7-82380-00-00

1

$161.56

In stock

8

DELIVERY PIPE

6EY-12880-01-00

1

$258.94

In stock

9

BOLT, FLANGE

90105-08243-00

1

$1.77

In stock

10

BOLT, FLANGE

95814-06020-00

1

$6.68

In stock

11

. GASKET, MANIFOLD

8FP-13556-10-00

1

$5.93

In stock

12

GROMMET

6BH-14445-00-00

1

$20.99

In stock

13

HOSE, VACUUM SENSING 3

6EY-13532-00-00

1

$13.99

In stock

14

SENSOR, AIR TEMPERATURE

8FP-85886-00-00

1

$49.83

In stock

15

SCREW, PANHEAD TAPPING

97702-50520-00

1

$0.28

In stock

16

FUEL PIPE JOINT

6S5-24300-01-00

1

$30.49

In stock

17

HOSE

6CN-14294-20-00

1
Out of stock

18

TUBE (L610)

90447-19020-00

1

$12.99

In stock

19

HOSE CLAMP ASSY

90450-17M17-00

1

$9.22

In stock

20

BOLT, WITH WASHER

97513-08535-00

1

$1.77

In stock

21

BOLT, STUD

95612-08625-00

—

$4.69

In stock

22

NUT, CROWN(4BR)

90176-08080-00

—

$2.71

In stock
