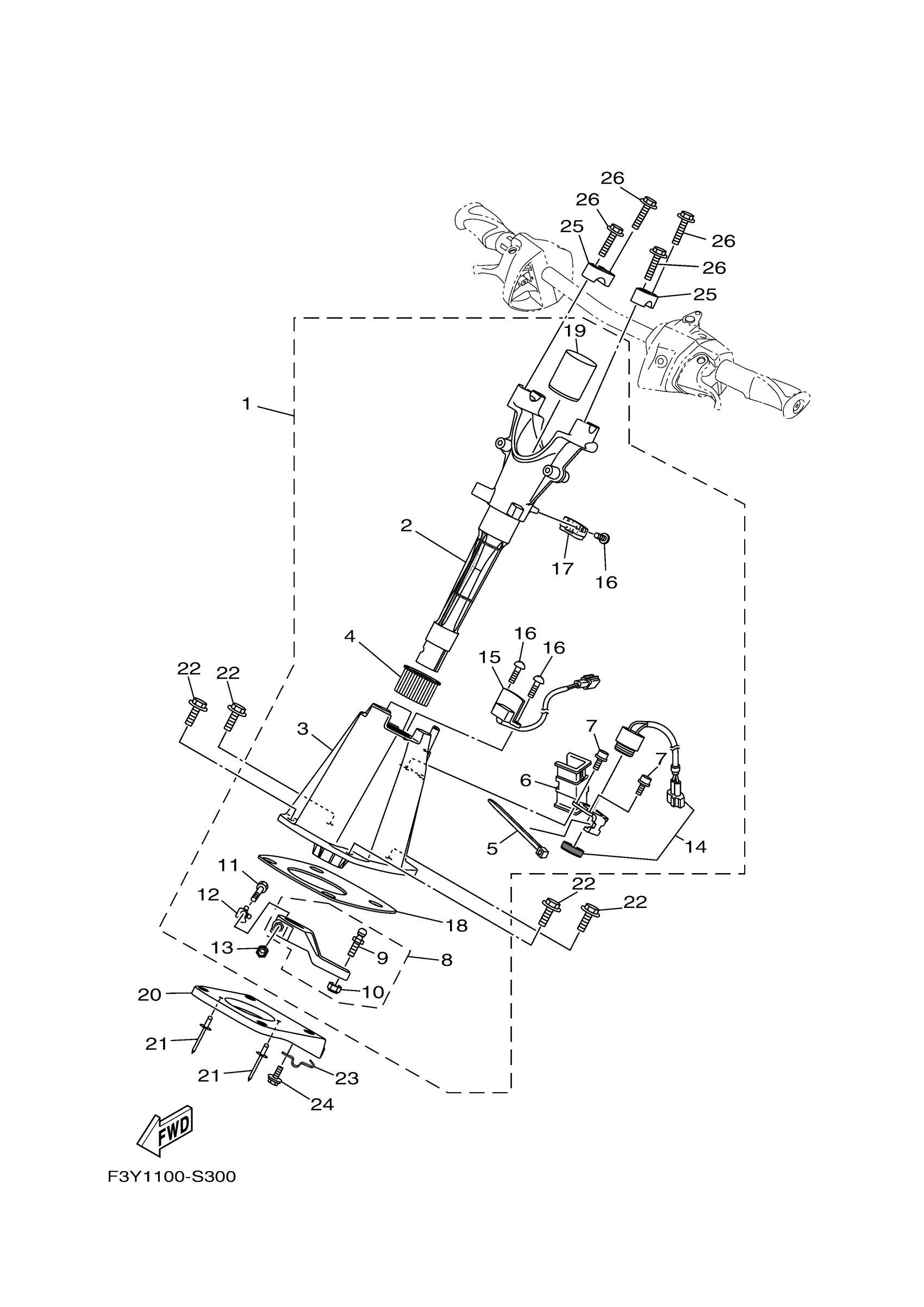

Yamaha EX1050CA (EX) F6N4 2024 STEERING 2 Diagram

#

Description
Price

1

STEERING MASTER ASSY

F3Y-61400-04-00

$390.89

2

. SHAFT

F3Y-6152D-00-00

$177.26

3

HOUSING ASSY

F2X-6152M-02-00

$149.98

4

. BUSH

F1K-6134M-00-00

$6.82

5

BAND

1UA-82591-00-00

$3.85

6

. SPACER, BRKT

F2X-6146H-00-00

$19.68

7

SCREW

F1B-613C1-10-00

Unavailable

8

ARM ASSY.

F1K-6153R-01-00

$136.35

9

STUD, JOINT BALL

EU0-61461-02-00

$14.38

10

NUT, SELF-LOCKING

95720-06300-00

$1.82

11

.. BOLT

F1K-61355-00-00

$17.41

12

. PLATE, RETAINING

F1K-6142B-00-00

$5.91

13

. NUT, SELF-LOCKING

95720-08300-00

$3.33

14

BUZZER

F1S-68341-00-00

$113.62

15

SENSOR, MAGNET

F2X-6838B-02-00

$134.83

16

. SCREW

F2X-613C1-00-00

$1.82

17

MAGNET

F2X-6838C-01-00

$26.49

18

. SEAL, RUBBER

F1K-6143C-00-00

$42.41

19

.. PIPE, SEAL

F2X-61435-00-00

$11.99

20

BRACKET,STOPPER CABLE

F3Y-U1467-00-00

$28.77

21

RIVET, BLIND

90267-489U2-00

$1.43

22

BOLT,WITH WASHER

90119-08870-00

$12.90

23

STOPPER, CABLE

F1K-U1468-03-00

Unavailable

24

BOLT, WITH WASHER

90119-06830-00

Unavailable

25

HOLDER, HANDLE UPPER

EU0-23814-32-00

$20.34

26

BOLT, WITH WASHER

90119-08844-00

$1.29
