2024 Yamaha EX (EX1050CA) Control Cable Diagram

← All diagrams

Find the part on the Control Cable diagram for your 2024 Yamaha EX (EX1050CA), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

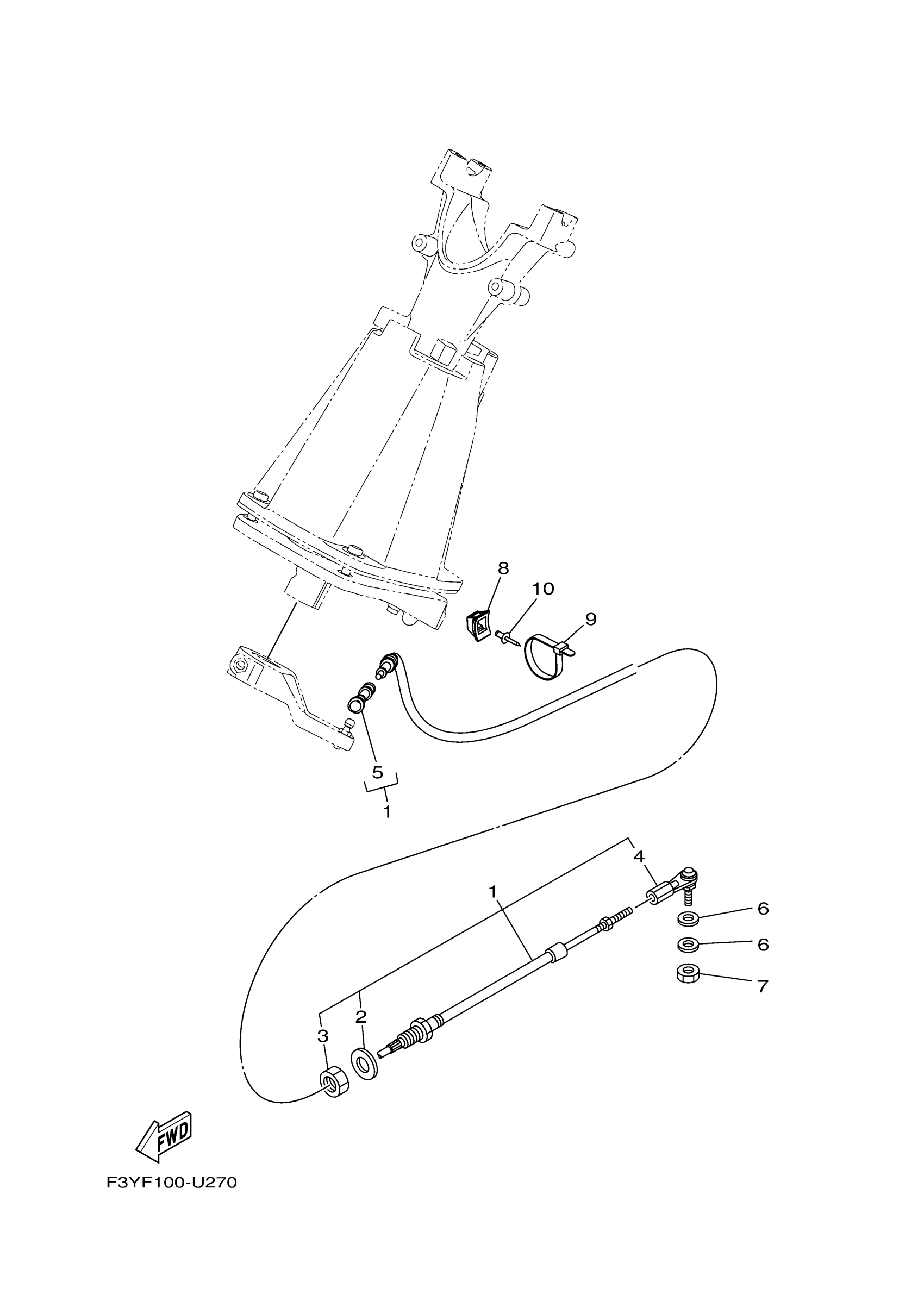

2024 Yamaha EX (EX1050CA) Control Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CABLE, STEERING

F3Y-61481-04-00

1

$259.98

In stock

2

. PACKING C

F1B-61438-00-00

1

$2.57

In stock

3

NUT

F1B-6151S-01-00

1

$14.49

In stock

4

. STUD, JOINT BALL

F3Y-61461-10-00

1

$92.99

In stock

5

. BALL JOINT ASSY

F2N-61460-00-00

1

$48.49

In stock

6

WASHER, PLATE

90201-06906-00

1

$3.23

In stock

7

NUT

9538R-06700-00

1
Out of stock

8

BASE, CLAMP

F1W-U828M-00-00

1

$1.38

In stock

9

CLAMP

90464-32801-00

1

$1.38

In stock

10

RIVET, BLIND

90267-48806-00

1

$2.31

In stock
