2024 Yamaha Ex (EX1050CA) Engine Hatch 2 Diagram

← All diagrams

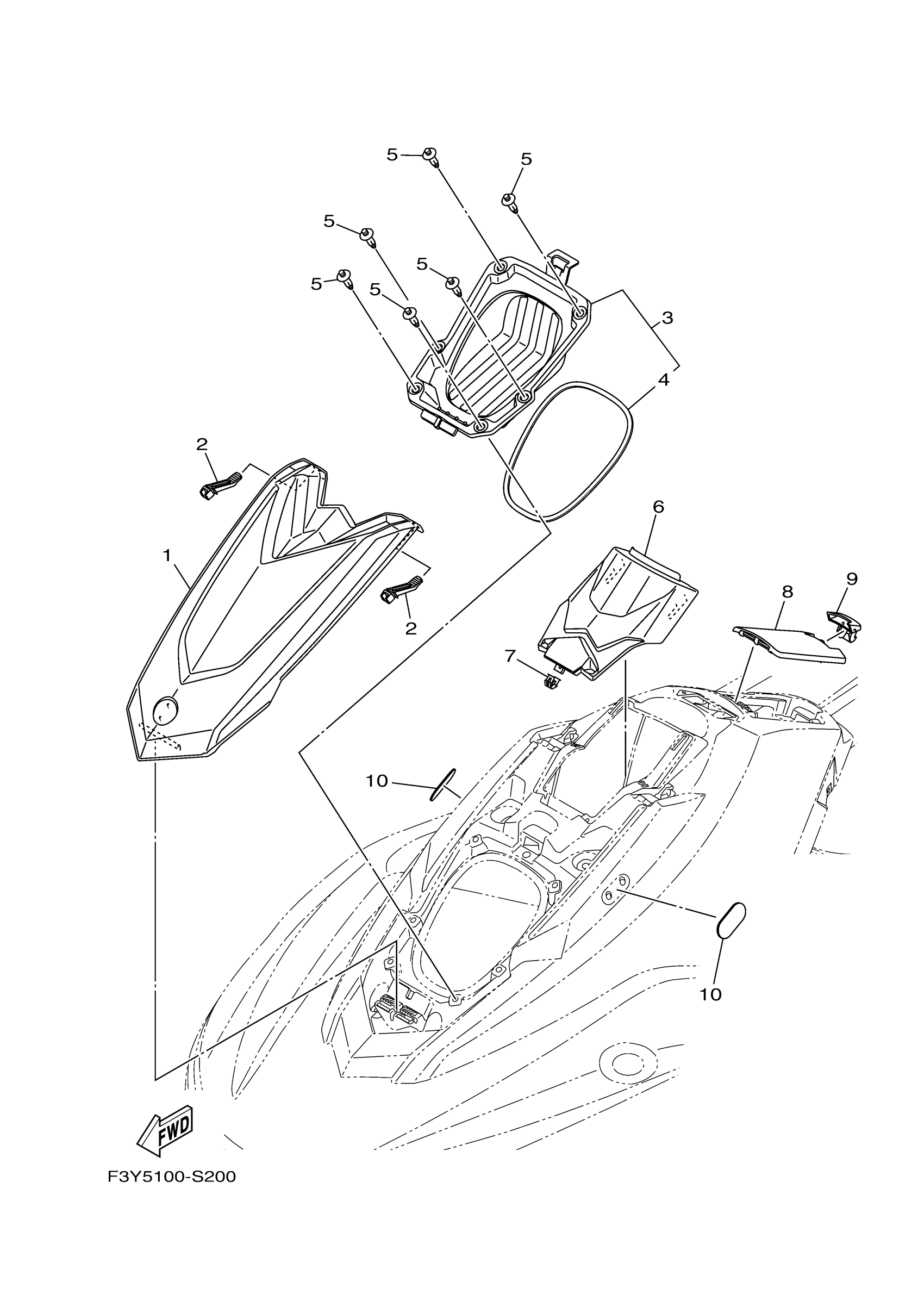

Find the part on the Engine Hatch 2 diagram for your 2024 Yamaha Ex (EX1050CA), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2024 Yamaha Ex (EX1050CA) Engine Hatch 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LID, ENGINE ROOM (PCS1)

F3Y-U517B-00-P7

1
Out of stock

2

LOCK 1

F3Y-U264L-00-00

1
Out of stock

3

BOWLOCKER ASSY

F3Y-U475A-00-00

1
Out of stock

4

. PACKING 1

F3Y-U2663-00-00

1
Out of stock

5

RIVET

90269-08801-00

1
Out of stock

6

COVER, FRONT

F3Y-U513M-00-00

1
Out of stock

7

CLIP

F3Y-U153K-00-00

1
Out of stock

8

LID HATCH

F3Y-U517H-00-00

1
Out of stock

9

LOCK

F3Y-U2875-00-00

1
Out of stock

10

PLUG 2

F3Y-U2724-10-00

1
Out of stock
