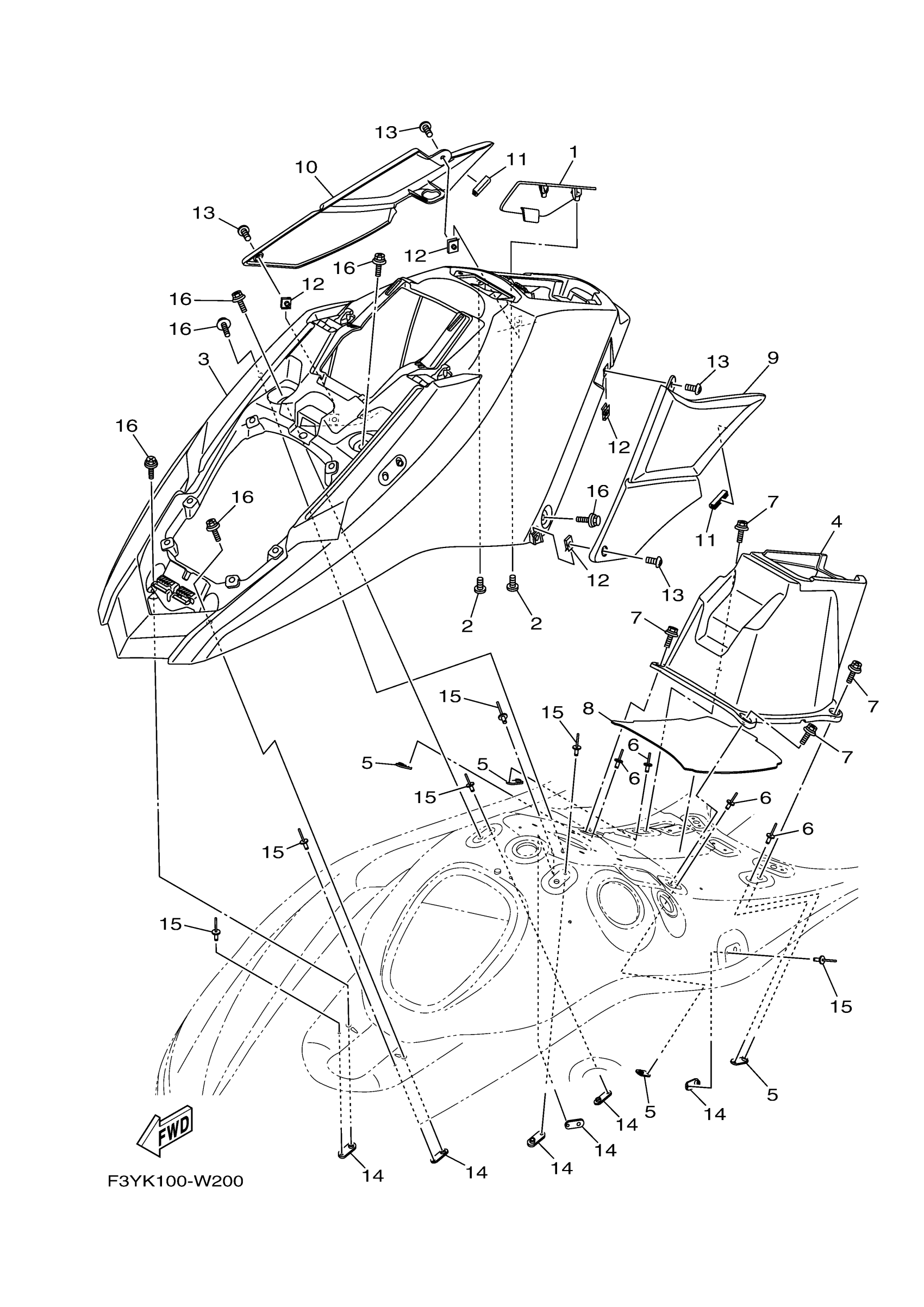

Yamaha EX1050CA (EX) F6N4 2024 ENGINE HATCH 1 Diagram

Description

Price

SEAL

F3Y-U2723-11-00

Unavailable

SCREW

F2S-U13C1-00-00

$2.52

COVER, ENGINE HATCH

F3Y-U516N-10-00

$182.94

BOX GLOVE

F3Y-U516P-00-00

$19.39

PLATE, FIX

F2X-U5175-00-00

$1.87

RIVET (EU0)

90267-48938-00

$4.72

BOLT, WITH WASHER

90119-06878-00

$3.59

MAT 1

F3Y-U759B-00-00

$14.16

PAD, KNEE

F3Y-U353B-00-00

$16.40

PAD, KNEE

F3Y-U353B-10-00

$16.40

TRIM, 1

F3Y-U828H-30-00

$3.58

NUT, SPRING(GJ3)

90183-06902-00

$8.53

BOLT,HEX. SOCKET B

90111-06874-00
