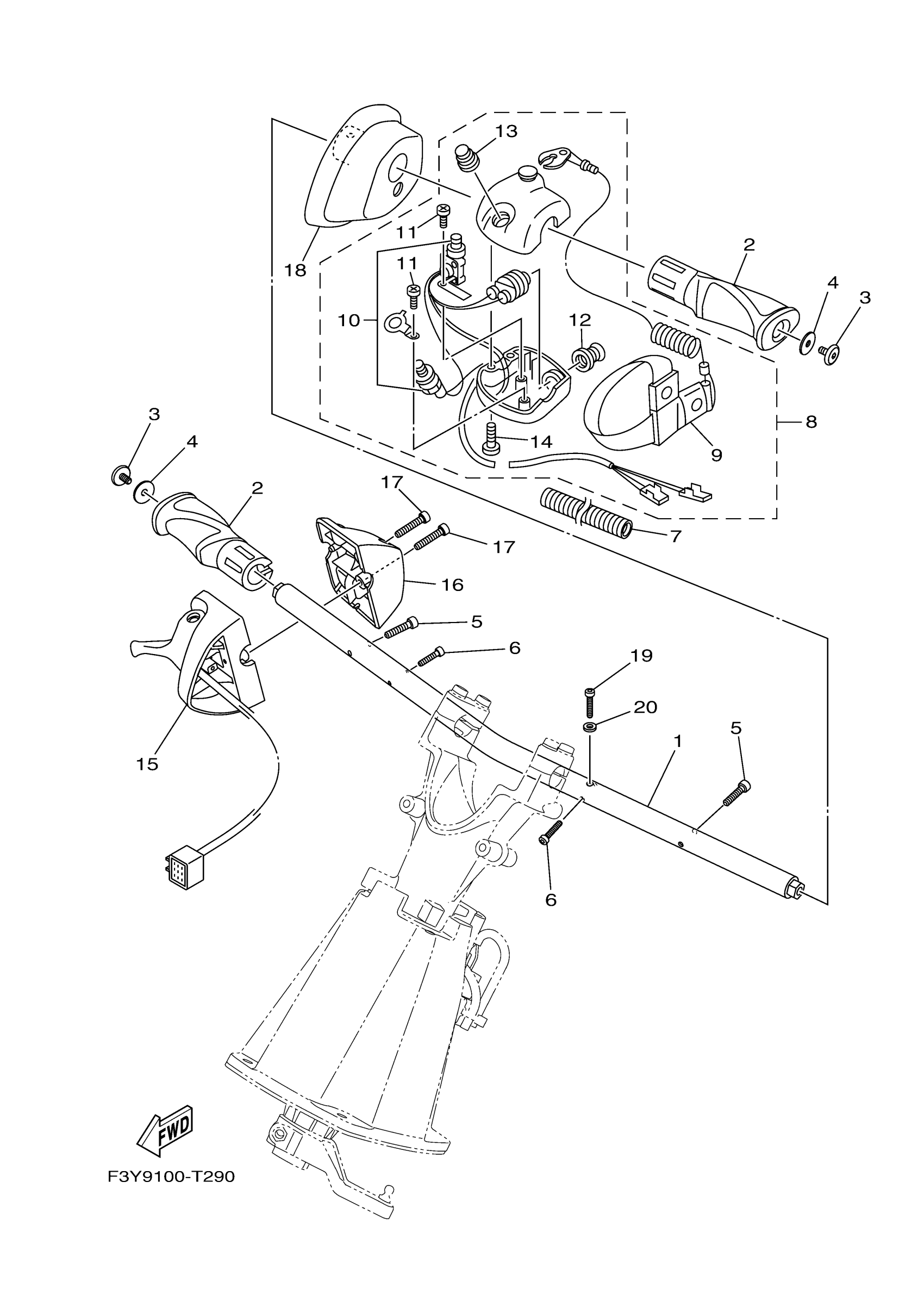

Yamaha EX1050BY (EX SPORT) F3YV 2023 STEERING 1 Diagram

#

Description
Price

1

HANDLE

F3Y-U1552-00-00

Unavailable

2

GRIP,HANDLE

F2S-U155D-03-00

Unavailable

3

BOLT, HEXAGON SOCKET HEAD

90110-06383-00

Unavailable

4

WASHER, PLATE

90201-068G0-00

Unavailable

5

BOLT

F2S-U1516-00-00

Unavailable

6

BOLT

91380-04030-00

Unavailable

7

TUBE

F3Y-U773D-00-00

Unavailable

8

SWITCH BOX ASSY

F3Y-68310-00-00

Unavailable

9

. LANYARD, STOP SWITCH

EW2-68348-00-00

Unavailable

10

SWITCH BOX ASSY

GA7-68310-01-00

Unavailable

11

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

12

. STOP BUTTON COMP

FK7-68312-02-00

Unavailable

13

. START BUTTON COMP

FK7-68313-02-00

Unavailable

14

SCREW, PANHEAD (A93)

98580-05525-00

$2.00

15

THROTTLE LEVER COMP

6CS-14305-13-00

Unavailable

16

CASE

6EX-82154-00-00

Unavailable

17

BOLT, THROTTLE

6CS-6725F-00-00

Unavailable

18

SPACER

F3Y-U143G-00-00

Unavailable

19

BOLT

91380-04030-00

Unavailable

20

WASHER, PLATE

90201-04810-00

Unavailable
