Partiron

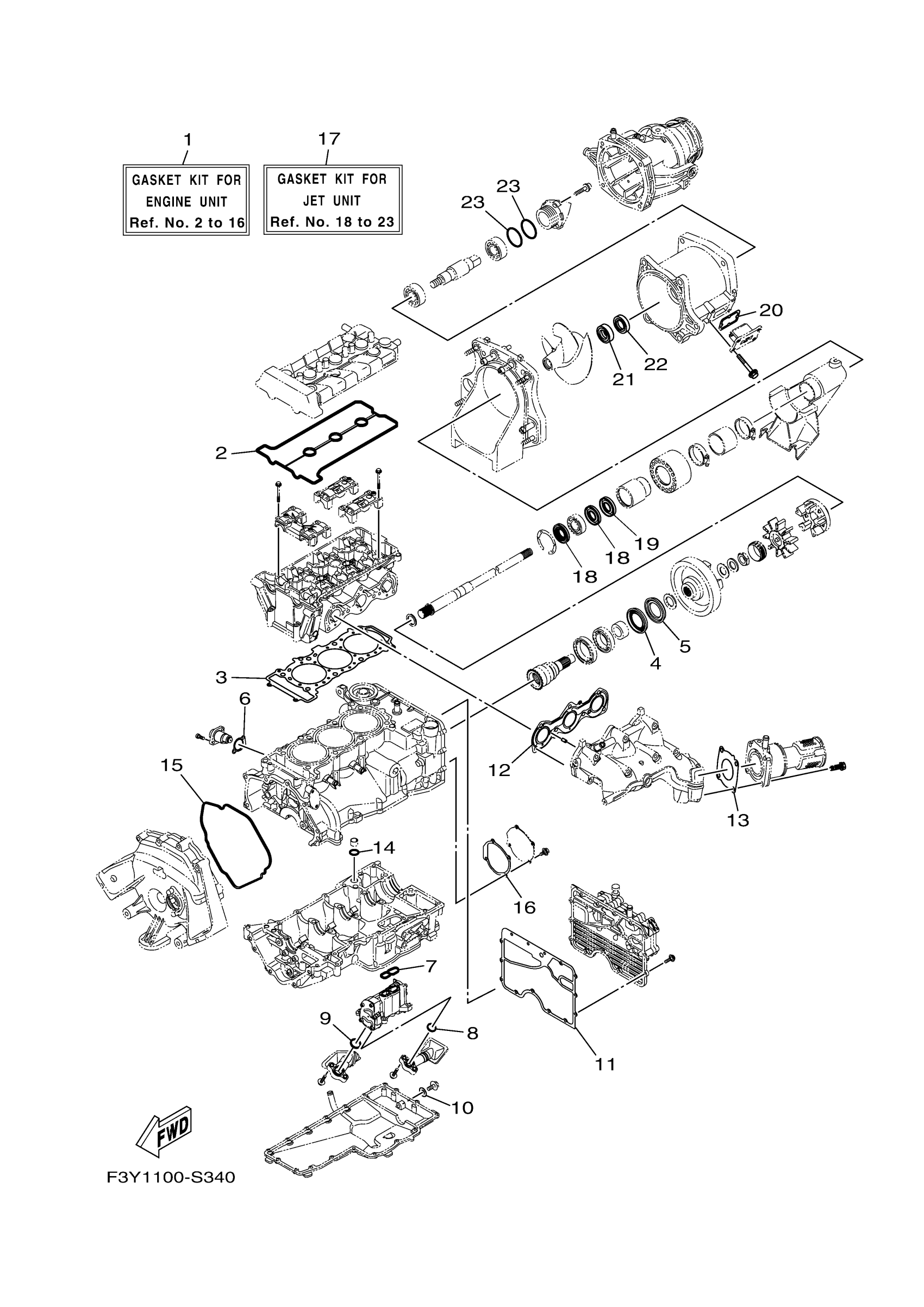

Yamaha EX1050BY (EX SPORT) F3YV 2023 REPAIR KIT 1 Diagram

#

Description
Price

1

GASKET KIT FOR ENGINE UNIT

6GA-W0001-01-00

$208.99

2

. GASKET, HEAD COVER 1

6EY-11193-00-00

$14.81

3

GASKET, CYLINDER H

6EY-11181-01-00

$156.85

4

. OIL SEAL

93101-40001-00

$11.99

5

. OIL SEAL

93101-40002-00

$13.99

6

GASKET, TENSIONER CASE

2C0-12213-00-00

$6.29

7

. GASKET

6EY-13563-00-00

$3.64

8

. GASKET

6EY-13477-00-00

$3.18

9

. GASKET

6EY-13476-00-00

$3.18

10

GASKET(3GH)

90430-08209-00

$2.56

11

. GASKET

6EY-15453-00-00

$5.91

12

. GASKET, EXHAUST PIPE

6GA-14613-00-00

$31.85

13

. GASKET, MUFFLER DAMPER 1

6GA-14739-00-00

$7.40

14

. O-RING

93210-17010-00

$0.91

15

. GASKET, CRANKCASE COVER 2

6EY-15461-00-00

$19.68

16

. GASKET, 2

6EY-15463-01-00

$5.91

17

GASKET KIT FOR JET UNIT

6GA-W0001-20-00

$83.32

18

OIL SEAL(62T)

93101-25M55-00

Unavailable

19

OIL SEAL

93101-24001-00

Unavailable

20

. O-RING

6GA-G2414-00-00

$0.93

21

OIL SEAL(6R7)

93102-25M34-00

Unavailable

22

OIL SEAL(6R7)

93101-25M50-00

Unavailable

23

. O-RING

93210-44003-00

$2.61
