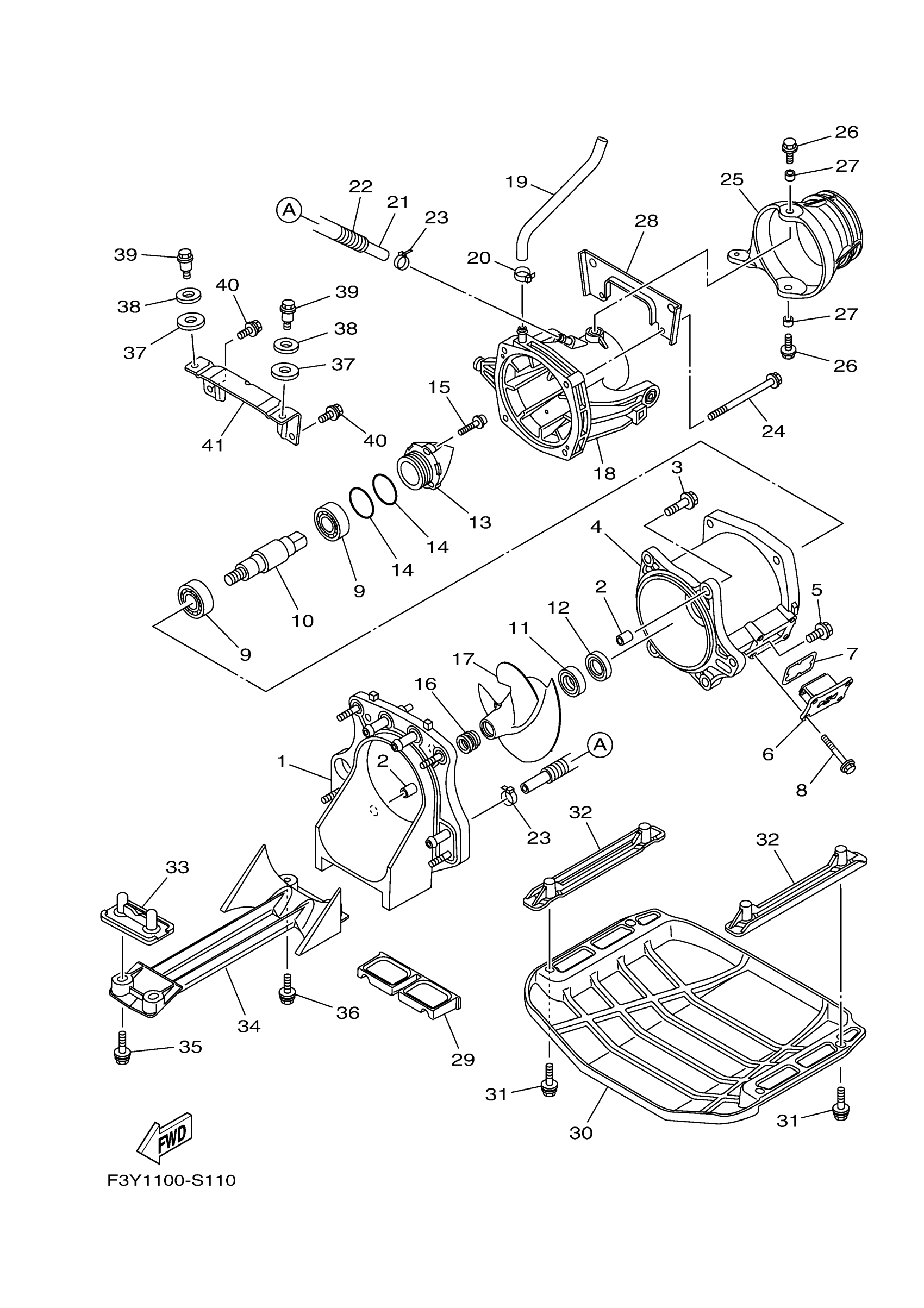

Yamaha EX1050BX (EX SPORT) F3YR 2022 JET UNIT 1 Diagram
#
1
PLATE, TRANSOM
6GA-G5831-00-00
Unavailable
2
PIN, DOWEL(4JT)
99590-14016-00
$4.24
3
BOLT, WITH WASHER
90119-10067-00
Unavailable
4
HOUSING, IMPELLER
6GA-R1312-02-00
Unavailable
5
BOLT, WITH WASHER
90119-10809-00
Unavailable
6
FILTER
6GA-G6882-00-00
Unavailable
7
. O-RING
6GA-G2414-00-00
Unavailable
8
BOLT,WITH WASHER
90119-06890-00
Unavailable
9
BEARING
93306-255X7-00
Unavailable
10
SHAFT, DRIVE 4
6GA-G5514-00-00
Unavailable
11
OIL SEAL(6R7)
93102-25M34-00
$16.99
12
OIL SEAL(6R7)
93101-25M50-00
$25.99
13
CAP
6EX-R1326-10-00
Unavailable
14
. O-RING
93210-44003-00
Unavailable
15
BOLT, HEXAGON SOCKET HEAD
90110-06823-00
Unavailable
16
CAP, IMPELLER
6DU-51319-00-00
Unavailable
17
IMPELLER
6GA-R1321-00-00
Unavailable
18
NOZZLE
6GA-R1318-00-00
Unavailable
19
HOSE 1
6GA-U72M2-00-00
Unavailable
20
BAND, HOSE 18
90601-118UF-00
Unavailable
21
HOSE (L220)
90445-14025-00
Unavailable
22
TUBE (L180)
90447-15005-00
Unavailable
23
CLAMP
90465-10098-00
Unavailable
24
BOLT, WITH WASHER
90119-08844-00
Unavailable
25
NOZZLE, DEFLECTOR
6BU-R1313-00-00
Unavailable
26
BOLT, WITH WASHER
90119-08841-00
Unavailable
27
COLLAR(6R7)
90387-08M06-00
Unavailable
28
BRACKET
6GA-R1959-00-00
Unavailable
29
SPACER
F3Y-U72C0-00-00
Unavailable
30
PLATE 2
F3Y-U273B-10-00
Unavailable
31
BOLT, WITH WASHER
90119-08829-00
Unavailable
32
BRACKET 2
F0V-U8572-10-00
Unavailable
33
BRACKET, 3
F2S-U8577-00-00
Unavailable
34
SCREEN, INTAKE
6GA-R1333-00-00
Unavailable
35
BOLT
F3Y-U1426-01-00
Unavailable
36
BOLT
F3Y-U1426-01-00
Unavailable
37
GASKET
90430-12002-00
Unavailable
38
YBS66-12 WASHER,PLAIN
92990-12200-00
Unavailable
39
BOLT
90109-08043-00
Unavailable
40
BOLT, WITH WASHER
90119-08800-00
Unavailable
41
BRACKET
F3Y-U7557-00-00
Unavailable
