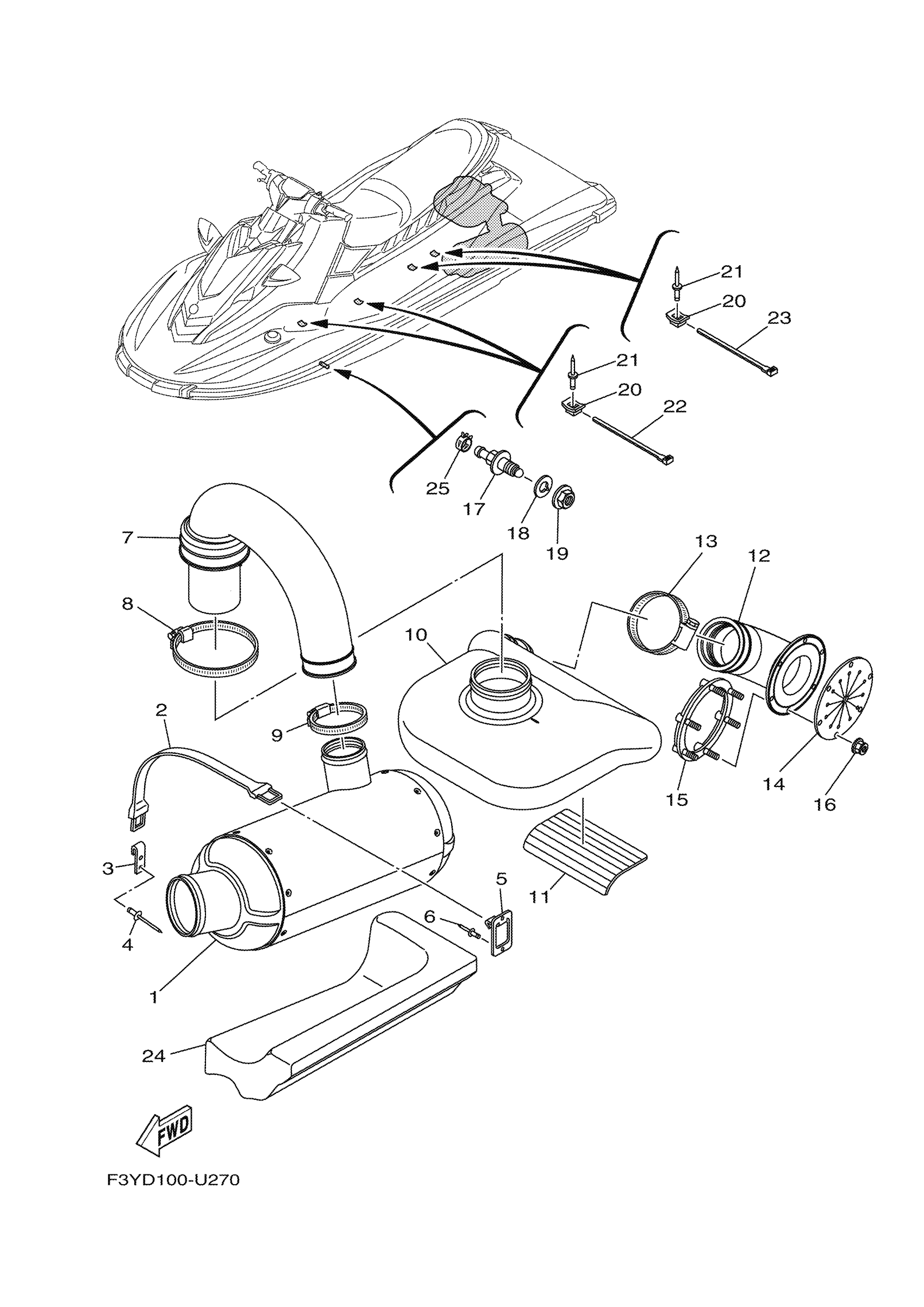

Yamaha EX1050BX (EX SPORT) F3YR 2022 EXHAUST 3 Diagram

#

Description
Price

1

WATER LOCK COMP.

F3Y-U7550-01-00

Unavailable

2

BAND,BATTERY 1

EU0-U821D-00-00

Unavailable

3

HOOK A

GA7-65772-00-00

Unavailable

4

RIVET (EU0)

90267-48938-00

Unavailable

5

HOOK A

F1K-U5772-04-00

Unavailable

6

RIVET (EU0)

90267-48938-00

Unavailable

7

HOSE, EXHAUST

F3Y-U7555-00-00

Unavailable

8

BAND, HOSE 79

90601-179U8-00

Unavailable

9

HOSE CLAMP ASSY

90450-99804-00

Unavailable

10

TANK, WATER

F3Y-U4261-00-00

Unavailable

11

PAD, BATTERY

F1S-U8221-00-00

Unavailable

12

HOSE,EXHAUST 3

F3Y-U758D-00-00

Unavailable

13

BAND, HOSE 79

90601-179U8-00

Unavailable

14

VALVE, EXHAUST

F1B-U751G-10-00

Unavailable

15

PLATE

F1S-U757B-01-00

Unavailable

16

NUT, LOCK

F2N-U142L-00-00

Unavailable

17

PILOT, WATER

F2C-U753B-01-00

Unavailable

18

GASKET

F2C-U7564-02-00

Unavailable

19

NUT

F2C-U2733-00-00

Unavailable

20

BASE, CLAMP

F1W-U828M-00-00

Unavailable

21

RIVET, BLIND

90267-48806-00

Unavailable

22

CLAMP

90464-32801-00

Unavailable

23

BAND

90601-200U2-00

Unavailable

24

FLOATATION, BASE 1

F3Y-U892F-10-00

Unavailable

25

CLIP

90467-150A5-00

Unavailable
