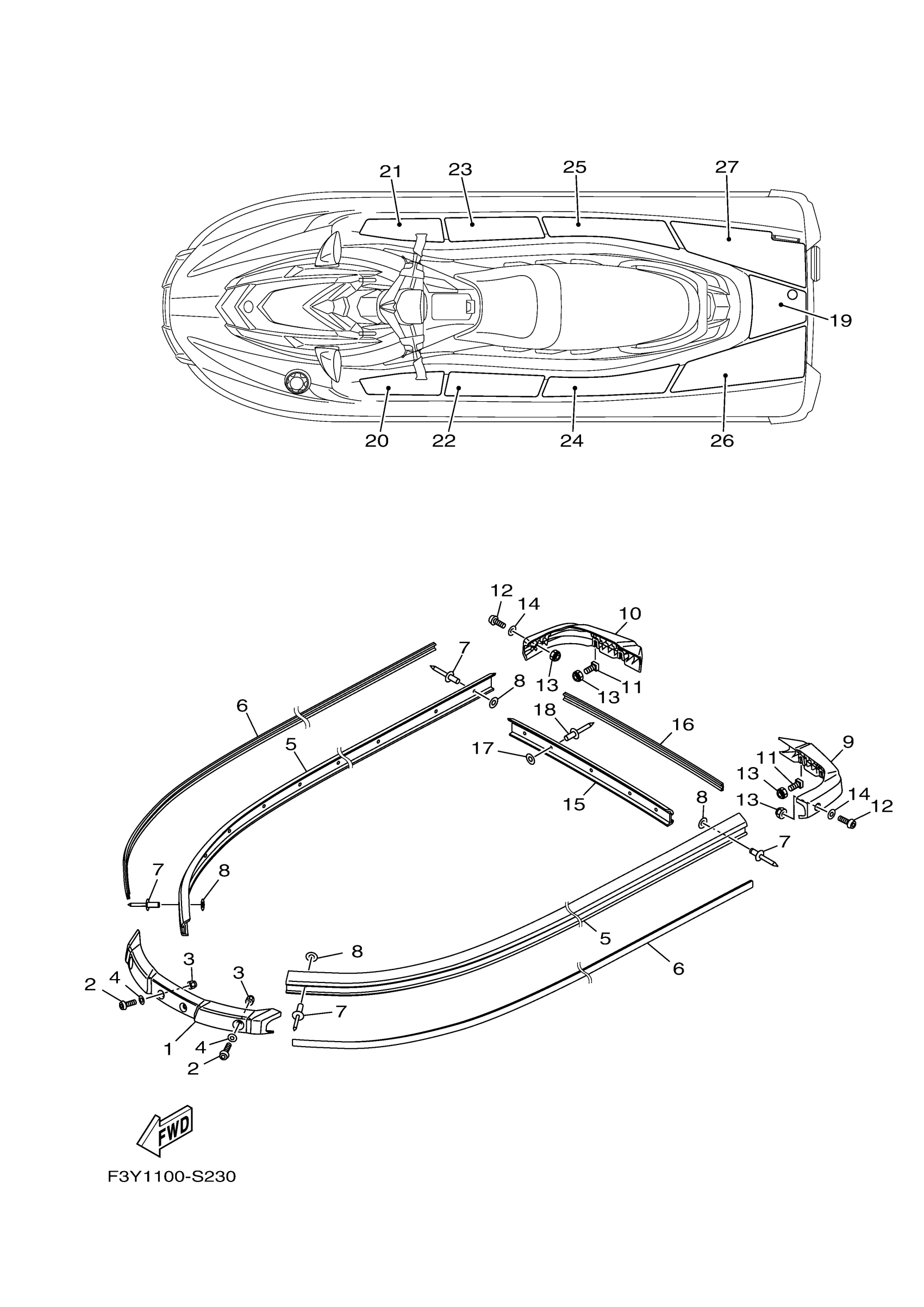

Yamaha EX1050BU (EX SPORT) F3YE 2019 GUNWALE & MAT Diagram

#

Description
Price

1

GUNWALE, BOW

F3Y-U2511-00-00

$63.56

2

BOLT,HEX. SOCKET BUTTON

90111-06803-00

$2.30

3

NUT, LOCK

F2N-U142L-00-00

$1.00

4

WASHER

F3Y-U1174-00-00

$1.43

5

GUNWALE, SIDE

F3Y-U2512-03-00

$43.27

6

INNER,GUNWALE

F3Y-U2519-71-00

$38.79

6

INNER,GUNWALE

F3Y-U2519-82-00

$27.98

7

RIVET, BLIND

90267-489U8-00

$1.37

8

WASHER

9299R-05200-00

$4.60

9

GUNWALE, STERN 1

F3Y-U251D-00-00

$147.34

10

GUNWALE, STERN 2

F3Y-U251E-00-00

$147.34

11

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

12

BOLT,HEX. SOCKET BUTTON

90111-06803-00

$2.30

13

NUT, LOCK

F2N-U142L-00-00

$1.00

14

WASHER

F3Y-U1174-00-00

$1.43

15

COVER, GUNWALE 1

F3Y-U252C-00-00

$16.27

16

COVER, GUNWALE 2

F3Y-U252D-00-00

$14.91

16

COVER, GUNWALE 2

F3Y-U252D-81-00

$18.64

17

WASHER

9299R-05200-00

$4.60

18

RIVET, BLIND

90267-489U8-00

$1.37

19

MAT, UPPER

F3Y-U3581-10-00

$15.66

19

MAT, UPPER

F3Y-U3581-20-00

$14.91

20

MAT, STEP 1

F3Y-U351H-10-00

$15.66

20

MAT, STEP 1

F3Y-U351H-20-00

$15.66

21

MAT, STEP 2

F3Y-U351J-10-00

$15.66

21

MAT, STEP 2

F3Y-U351J-20-00

$13.42

22

MAT, STEP 3

F3Y-U351K-10-00

$15.66

22

MAT, STEP 3

F3Y-U351K-20-00

$13.42

23

MAT, STEP 4

F3Y-U351M-10-00

$15.66

23

MAT, STEP 4

F3Y-U351M-20-00

$14.16

24

MAT, STEP 5

F3Y-U351N-10-00

$15.79

24

MAT, STEP 5

F3Y-U351N-20-00

$16.40

25

MAT, STEP 6

F3Y-U351P-10-00

$17.90

25

MAT, STEP 6

F3Y-U351P-20-00

$16.40

26

MAT, STEP 7

F3Y-U351R-10-00

$31.33

26

MAT, STEP 7

F3Y-U351R-20-00

$29.84

27

MAT, STEP 8

F3Y-U351S-10-00

$32.82

27

MAT, STEP 8

F3Y-U351S-20-00

$29.84
