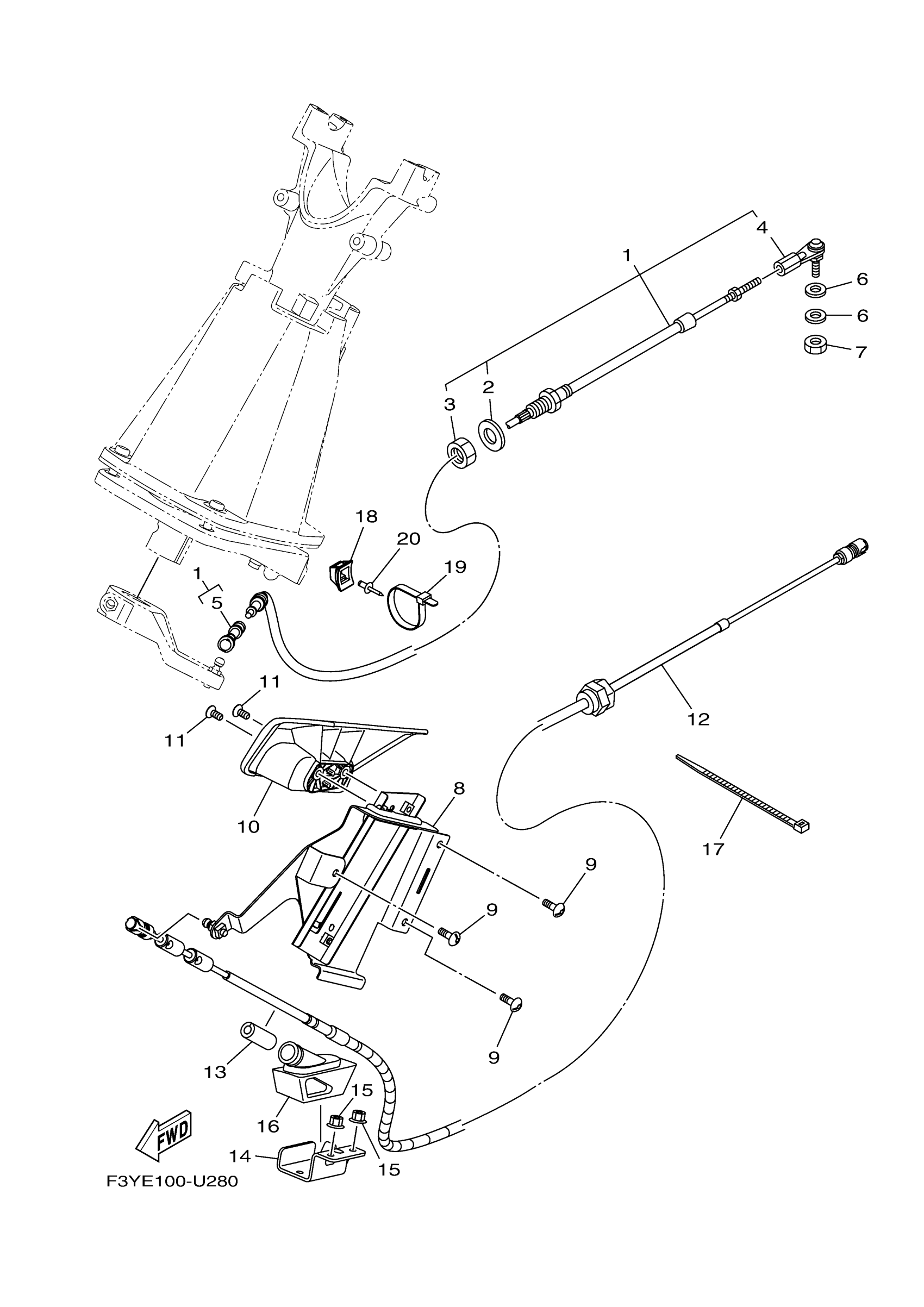

Yamaha EX1050BU (EX SPORT) F3YE 2019 CONTROL CABLE Diagram

#

Description
Price

1

CABLE, STEERING

F3Y-61481-04-00

$205.39

2

. PACKING C

F1B-61438-00-00

$2.72

3

NUT

F1B-6151S-01-00

$14.31

4

. STUD, JOINT BALL

F1B-61461-02-00

$95.44

5

. BALL JOINT ASSY

F2N-61460-00-00

$48.47

6

WASHER, PLATE

90201-06906-00

$2.80

7

NUT

9538R-06700-00

$1.01

8

REMOCON. LEVER ASSY.

F3Y-U134A-00-00

$64.62

9

SCREW

F4G-U7823-00-00

Unavailable

10

GRIP

F3Y-U2714-00-00

$6.52

11

SCREW, COUNTERSUNK

90151-06815-00

$1.23

12

CABLE,REVERSE

F3Y-U149C-01-00

$71.80

13

PACKING, CABLE

F1W-U146G-00-00

$1.43

14

BRACKET,STOPPER CABLE

F3Y-U1467-10-00

$10.75

15

NUT, LOCK

F2N-U142L-00-00

$1.00

16

PACKING, CABLE

F3Y-U146G-00-00

$6.23

17

CLAMP

90465-10098-00

$1.68

18

BASE, CLAMP

F1W-U828M-00-00

$1.23

19

CLAMP

90464-32801-00

$1.23

20

RIVET, BLIND

90267-489U6-00

$1.37
