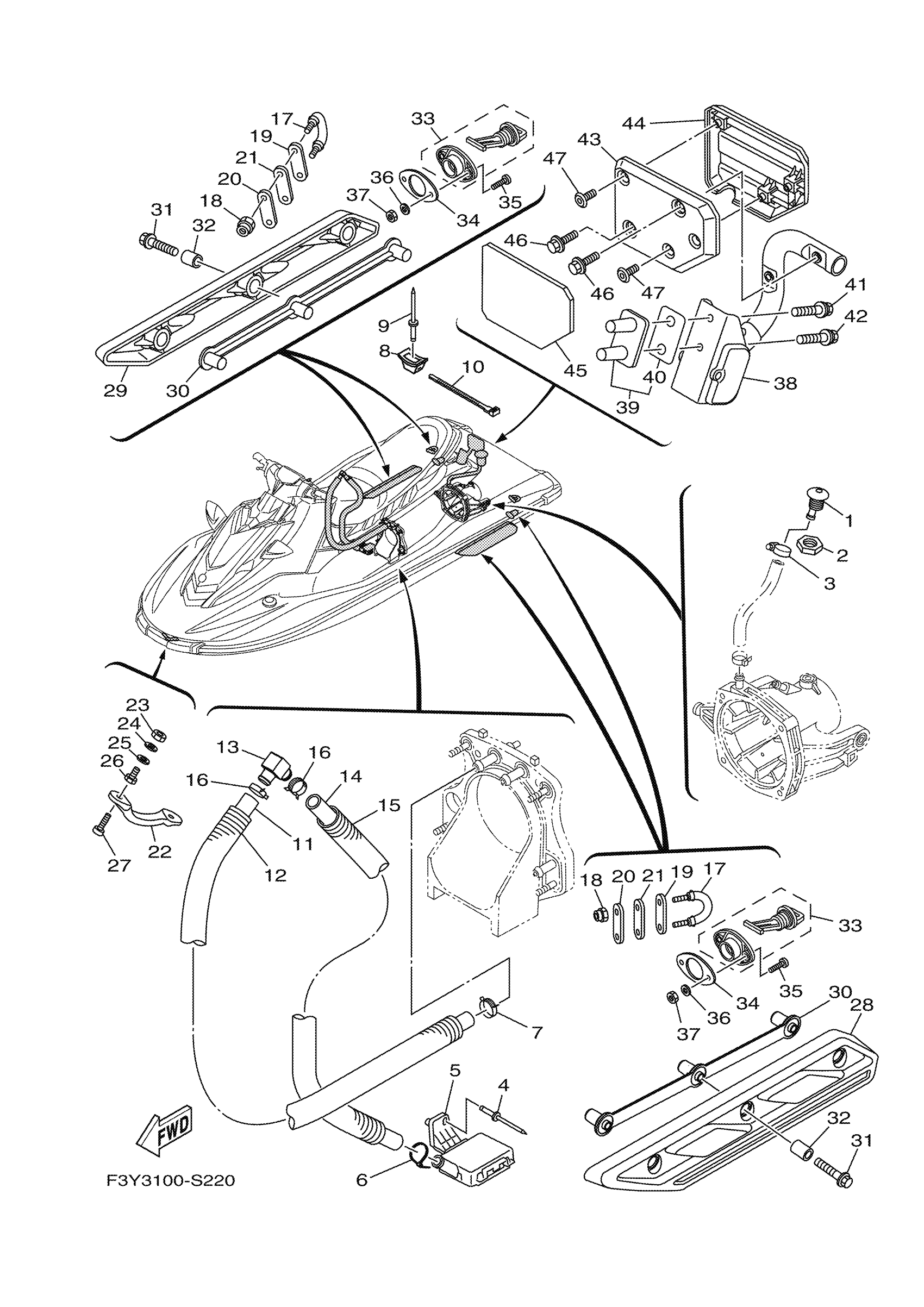

Yamaha EX1050BT (EX SPORT) F3Y9 2018 HULL & DECK Diagram

#

Description
Price

1

SPOUT

F1W-U269B-00-00

$1.80

2

NUT

EU0-61652-00-00

$11.48

3

BAND, HOSE 18

90601-118UF-00

$2.07

4

STRAINER, BILGE

F1B-U761D-02-00

$5.15

5

RIVET, BLIND

90267-489U8-00

$0.99

6

CLAMP

90465-10098-00

$1.68

7

CLIP

90467-21800-00

$2.87

8

BASE, CLAMP

F1W-U828M-00-00

$1.23

9

RIVET, BLIND

90267-489U6-00

$1.37

10

BAND

90601-200U2-00

$3.16

11

HOSE 2

6GA-U771G-00-00

$12.11

12

TUBE,2

6GA-U773E-00-00

$5.15

13

JOINT, HOSE

68N-5112T-00-00

$48.96

14

HOSE

F5P-U784C-00-00

Unavailable

15

TUBE

6GA-U773D-00-00

$5.00

16

CLIP

90467-18804-00

$2.72

17

STERN EYE

F2N-U1628-02-00

$4.96

18

NUT, NYLON (6J8)

95780-08300-00

$10.55

19

PLATE A

GP7-U4953-10-00

$3.52

20

PLATE A

GP7-U4953-10-00

$3.52

21

PACKING

F1B-U1653-03-00

Unavailable

22

BOW EYE 1

F1K-61624-00-00

$42.60

23

NUT.HEX.(COARS)

99780-12600-00

$2.80

24

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

25

WASHER

F0X-61637-00-00

$1.29

26

NUT

F0X-61652-01-00

Unavailable

27

BOLT, HEXAGON SOCKET HEAD

90110-06280-00

$3.18

28

STABILIZER LH

F3Y-U883N-00-00

$22.71

29

STABILIZER RH

F3Y-U883P-00-00

$22.71

30

BRACKET,STABILIZER

F3Y-U883T-00-00

$19.68

31

BOLT,WASHER BASED

90105-088F9-00

$2.91

32

SPACER

F2N-U8169-10-00

$1.15

33

DRAIN PLUG ASSY

F1S-U2280-02-00

$12.20

34

PACKING, DRAIN

F1S-U2285-01-00

Unavailable

35

SCREW, PAN HEAD

9788R-05025-00

$2.52

36

WASHER

9299R-05200-00

$3.16

37

NUT, FLANGE

9572R-05300-00

$1.43

38

LADDER, STEP ASSY

F3Y-U278A-02-00

$134.11

39

BRACKET, LADDER LH

F2S-U278F-01-00

Unavailable

40

PACKING, BRKT. 1

F2S-U278H-01-00

Unavailable

41

BOLT, WITH WASHER

90119-08844-00

$1.29

42

BOLT, WITH WASHER

90119-08844-00

$1.29

43

STEP

F3Y-U882F-00-00

$3.88

44

PLATE, STEP 1

F3Y-U884R-00-00

$5.39

45

COVER STEP 1

F3Y-U4994-00-00

$4.09

46

BOLT, WITH WASHER

90119-06892-00

$3.79

47

SCREW

F2S-U13C1-00-00

$2.36
