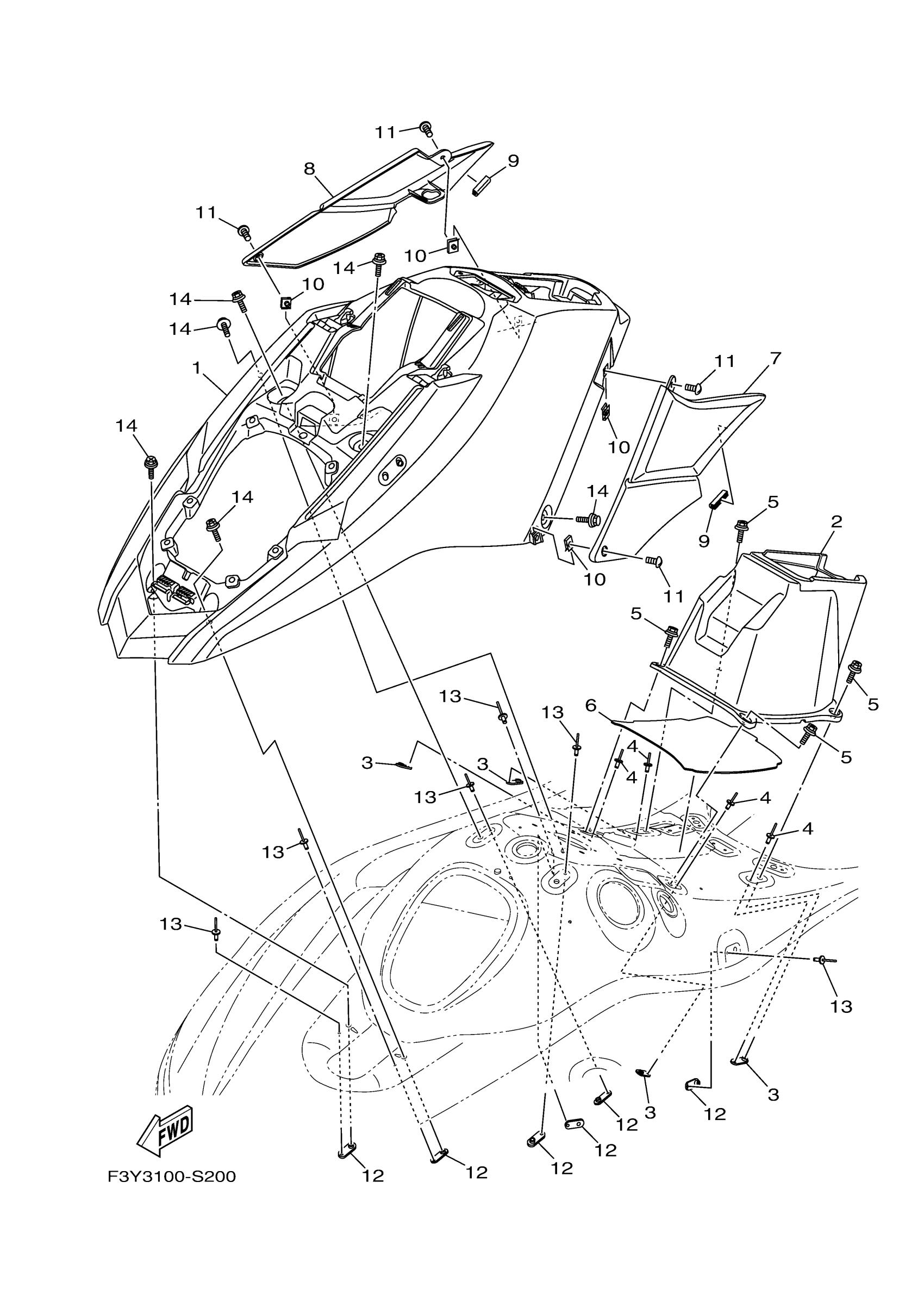

Yamaha EX1050BT (EX SPORT) F3Y9 2018 ENGINE HATCH 1 Diagram

#

Description

Price

1

COVER, ENGINE HATCH

F3Y-U516N-00-00

$133.32

2

BOX GLOVE

F3Y-U516P-00-00

$19.68

3

PLATE, FIX

F2X-U5175-00-00

$1.80

4

RIVET (EU0)

90267-48938-00

$5.00

5

BOLT, WITH WASHER

90119-06878-00

$3.43

6

MAT 1

F3Y-U759B-00-00

$14.38

7

PAD, KNEE

F3Y-U353B-00-00

$16.65

8

PAD, KNEE

F3Y-U353B-10-00

$16.65

9

TRIM, 1

F3Y-U828H-00-00

$5.45

10

NUT, SPRING(GJ3)

90183-06902-00

$8.53

11

SCREW

F4G-U7823-00-00

Unavailable

12

PLATE, FIX

F2X-U5175-00-00

$1.80

13

RIVET (EU0)

90267-48938-00

$5.00

14

BOLT, WITH WASHER

90119-06820-00

$3.52
