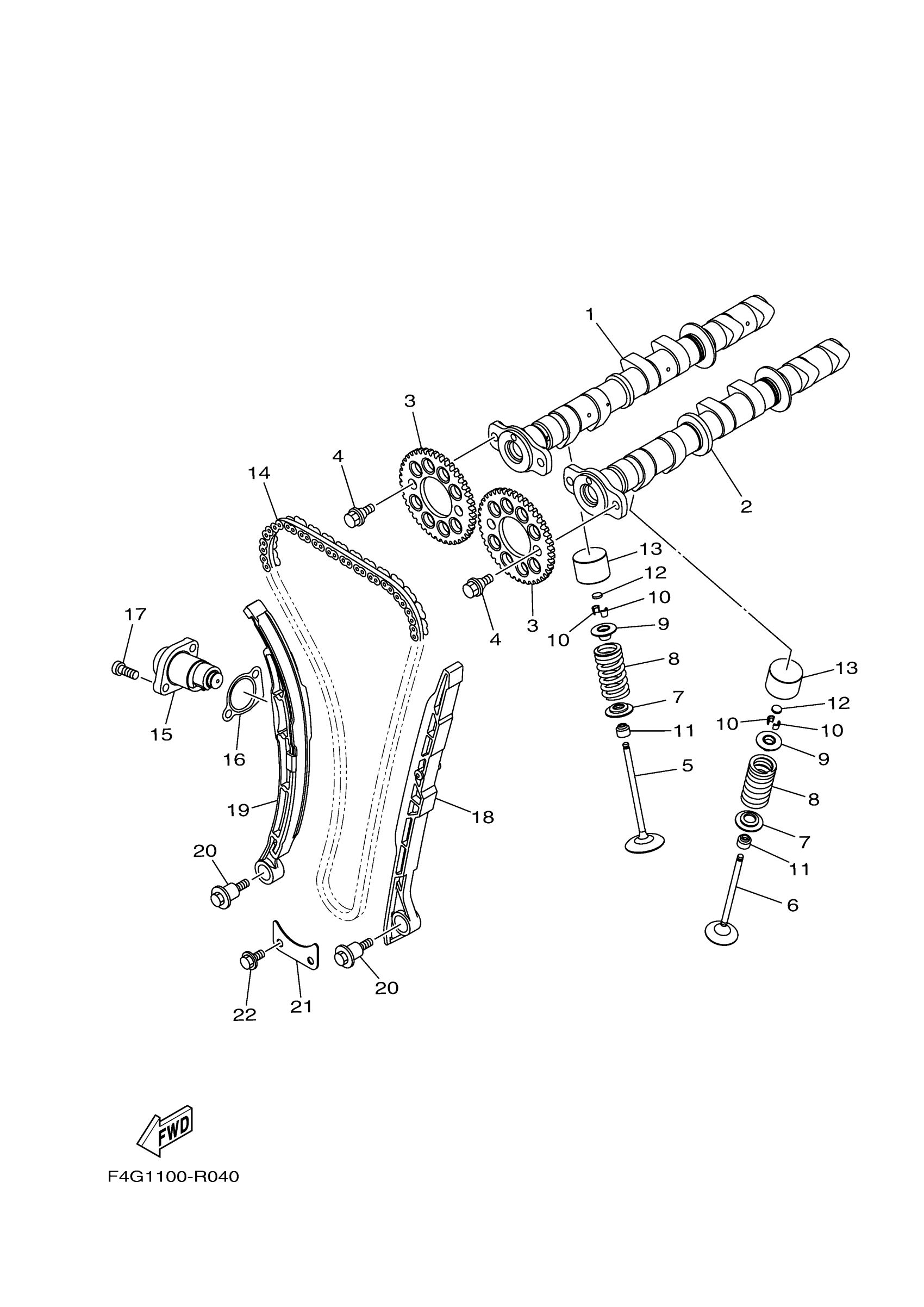

Yamaha EX1050BS (EX SPORT) F3Y3 2017 VALVE Diagram
#
1
CAMSHAFT ASSY 1
6EY-12170-00-00
Unavailable
2
CAMSHAFT ASSY 2
6EY-12180-00-00
Unavailable
3
SPROCKET, CAM CHAI
2HC-12176-00-00
$41.99
4
BOLT, FLANGE
90105-07004-00
$5.60
5
VALVE, INTAKE
8GL-12111-10-00
$29.99
6
VALVE, EXHAUST
8GL-12121-10-00
$49.99
7
SEAT, VALVE SPRING
1RC-12116-00-00
$2.18
8
SPRING, VALVE INNER
8GL-12113-00-00
$11.49
9
RETAINER, VALVE SPRING
3D7-12117-00-00
$6.99
10
COTTER, VALVE
1WG-12118-00-00
$8.99
11
SEAL, VALVE STEM
2HC-12119-00-00
$5.49
12
PAD, ADJUSTING 2 (1.20)
1HX-12168-00-00
Unavailable
12
PAD, ADJUSTING 2 (1.25)
1HX-12168-20-00
Unavailable
12
PAD, ADJUSTING 2 (1.30)
1HX-12168-40-00
Unavailable
12
PAD, ADJUSTING 2 (1.35)
1HX-12168-60-00
Unavailable
12
PAD, ADJUSTING 2 (1.40)
1HX-12168-80-00
Unavailable
12
PAD, ADJUSTING 2 (1.45)
1HX-12168-A0-00
Unavailable
12
PAD, ADJUSTING 2 (1.50)
1HX-12168-F0-00
Unavailable
12
PAD, ADJUSTING 2 (1.55)
1HX-12168-H1-00
Unavailable
12
PAD, ADJUSTING 2 (1.60)
1HX-12168-K1-00
Unavailable
12
PAD, ADJUSTING 2 (1.65)
1HX-12168-M1-00
Unavailable
12
PAD, ADJUSTING 2 (1.70)
1HX-12168-R1-00
Unavailable
12
PAD, ADJUSTING 2 (1.75)
1HX-12168-U1-00
Unavailable
12
PAD, ADJUSTING 2 (1.80)
1HX-12168-W1-00
Unavailable
12
PAD, ADJUSTING 2 (1.85)
1HX-12168-Y1-00
Unavailable
12
PAD, ADJUSTING 2 (1.90)
1HX-12169-11-00
Unavailable
12
PAD, ADJUSTING 2 (1.95)
1HX-12169-31-00
Unavailable
12
PAD, ADJUSTING 2 (2.00)
1HX-12169-50-00
Unavailable
12
PAD, ADJUSTING 2 (2.05)
1HX-12169-70-00
Unavailable
12
PAD, ADJUSTING 2 (2.10)
1HX-12169-90-00
Unavailable
12
PAD, ADJUSTING 2 (2.15)
1HX-12169-E0-00
Unavailable
12
PAD, ADJUSTING 2 (2.20)
1HX-12169-G0-00
Unavailable
12
PAD, ADJUSTING 2 (2.25)
1HX-12169-J0-00
Unavailable
12
PAD, ADJUSTING 2 (2.30)
1HX-12169-L0-00
Unavailable
12
PAD, ADJUSTING 2 (2.35)
1HX-12169-N0-00
Unavailable
12
PAD, ADJUSTING 2 (2.40)
1HX-12169-T0-00
Unavailable
13
LIFTER, VALVE
6EY-12153-01-00
Unavailable
14
CHAIN
94591-57140-00
Unavailable
15
TENSIONER ASSY, CA
8KH-12210-00-00
Unavailable
16
GASKET, TENSIONER CASE
2C0-12213-00-00
Unavailable
17
BOLT,SOCKET HEAD
91314-06020-00
Unavailable
18
DAMPER, CHAIN 1
6EY-12251-00-00
Unavailable
19
DAMPER, CHAIN 2
2HC-12252-00-00
Unavailable
20
BOLT
90109-06297-00
Unavailable
21
PLATE
6EY-12279-00-00
Unavailable
22
BOLT, FLANGE
95817-06012-00
Unavailable
