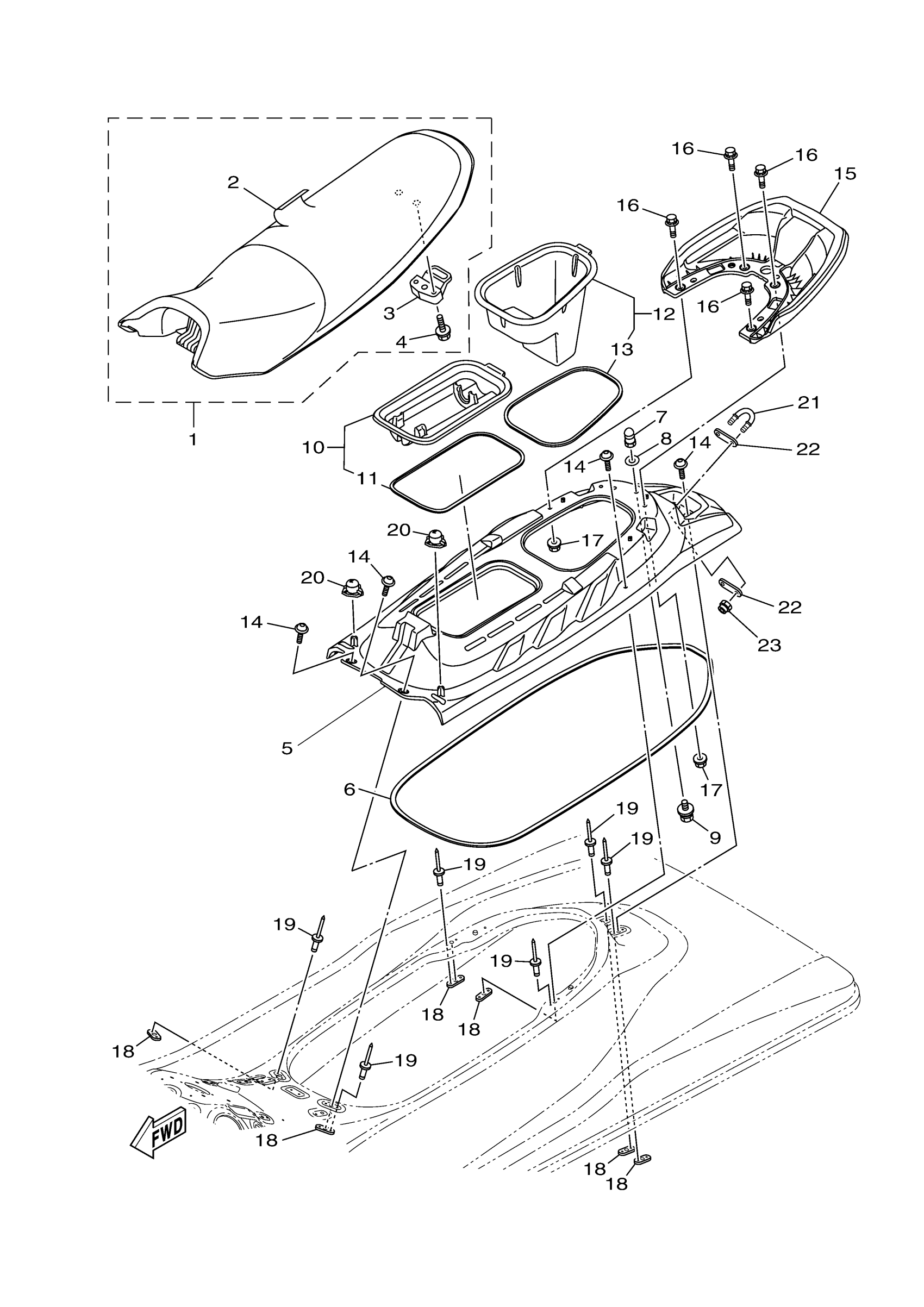

Yamaha EX1050BS (EX SPORT) F3Y3 2017 SEAT & UNDER LOCKER Diagram

#

Description
Price

1

DOUBLE SEAT ASSY

F3Y-U371A-01-00

$835.37

2

. COVER, SEAT 1

F3Y-U371B-00-00

$359.08

3

SEAT LOCK ASSY

F1B-U3850-02-00

$9.32

4

BOLT, WITH WASHER

90119-06808-00

$2.16

5

BASE, SEAT 2

F3Y-U3743-01-00

$212.11

6

PACKING 3

F3Y-U266B-01-00

$37.86

7

PIN

F1K-U3774-00-00

$15.07

8

WASHER, PLATE

90201-109U6-00

$3.29

9

BOLT,WITH WASHER

90119-10815-00

$4.09

10

CASE ASSY 2

F3Y-U592A-10-00

$28.02

11

PACKING 5

F3Y-U266D-10-00

$13.62

12

CASE,ASSY 1

F3Y-U591A-10-00

$26.50

13

. PACKING,6

F3Y-U266E-00-00

$6.36

14

BOLT, SPECIAL

F3Y-U491K-02-00

$2.52

15

GRIP, HAND

F3Y-U271B-00-00

$102.99

16

BOLT, WITH WASHER

90119-08829-00

$3.88

17

NUT, LOCK

F3Y-U142L-00-00

$2.52

18

BRACKET

F2C-U826C-00-00

$3.79

19

RIVET (EU0)

90267-48938-00

$5.00

20

GROMMET

F3Y-U1338-00-00

$2.80

21

STERN EYE

F2N-U1628-02-00

$4.96

22

PLATE A

GP7-U4953-10-00

$3.52

23

NUT, NYLON (6J8)

95780-08300-00

$10.55
