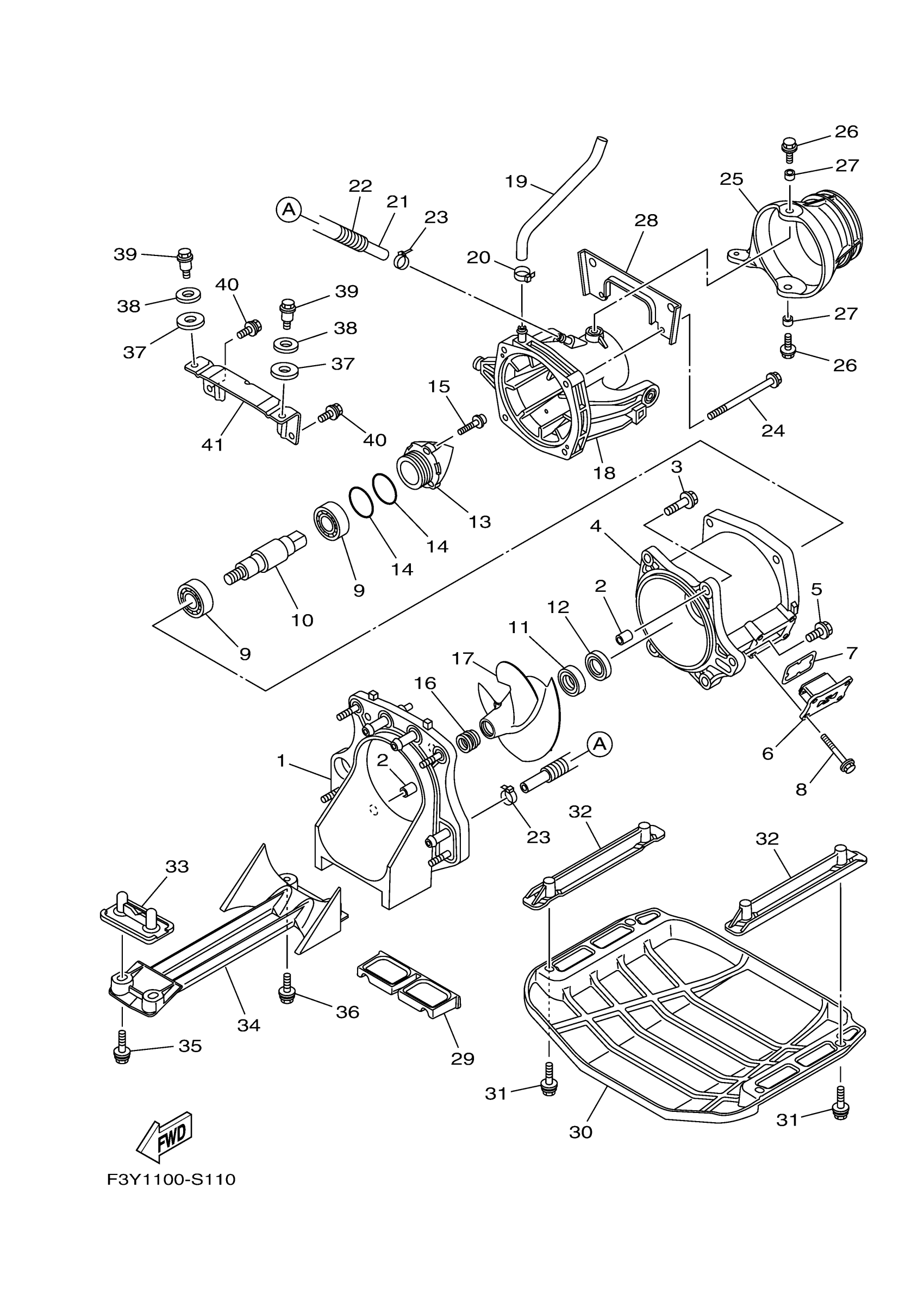

Yamaha EX1050BS (EX SPORT) F3Y3 2017 JET UNIT 1 Diagram

#

Description
Price

1

PLATE, TRANSOM

6GA-G5831-00-00

$124.99

2

PIN, DOWEL(4JT)

99590-14016-00

$3.69

3

BOLT, WITH WASHER

90119-10067-00

$2.16

4

HOUSING, IMPELLER

6GA-R1312-02-00

$169.19

5

BOLT, WITH WASHER

90119-10809-00

Unavailable

6

FILTER

6GA-G6882-00-00

Unavailable

7

. O-RING

6GA-G2414-00-00

Unavailable

8

BOLT,WITH WASHER

90119-06890-00

$1.15

9

BEARING

93306-255X7-00

Unavailable

10

SHAFT, DRIVE 4

6GA-G5514-00-00

$43.83

11

OIL SEAL(6R7)

93102-25M34-00

$13.85

12

OIL SEAL(6R7)

93101-25M50-00

$20.80

13

CAP

6EX-R1326-10-00

Unavailable

14

. O-RING

93210-44003-00

$2.65

15

BOLT, HEXAGON SOCKET HEAD

90110-06823-00

$2.30

16

CAP, IMPELLER

6D3-R1319-00-00

$2.16

17

IMPELLER

6GA-R1321-00-00

Unavailable

18

NOZZLE

6GA-R1318-00-00

$63.22

19

HOSE 1

6GA-U72M2-00-00

$7.06

20

BAND, HOSE 18

90601-118UF-00

$2.22

21

HOSE (L220)

90445-14025-00

$1.84

22

TUBE (L180)

90447-15005-00

$1.10

23

CLAMP

90465-10098-00

$2.24

24

BOLT, WITH WASHER

90119-08844-00

$1.37

25

NOZZLE, DEFLECTOR

6BU-R1313-00-00

$47.04

26

BOLT, WITH WASHER

90119-08841-00

$1.07

27

COLLAR(6R7)

90387-08M06-00

Unavailable

28

BRACKET

6GA-R1959-00-00

$8.07

29

SPACER

F3Y-U72C0-00-00

$6.10

30

PLATE 2

F3Y-U273B-01-00

$147.04

31

BOLT, WITH WASHER

90119-08829-00

$4.09

32

BRACKET 2

F0V-U8572-10-00

$10.28

33

BRACKET, 3

F2S-U8577-00-00

Unavailable

34

SCREEN, INTAKE

6GA-R1333-00-00

$42.63

35

BOLT

F3Y-U1426-01-00

Unavailable

36

BOLT

F3Y-U1426-01-00

Unavailable

37

GASKET

90430-12002-00

$1.70

38

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

39

BOLT

90109-08043-00

$3.97

40

BOLT, WITH WASHER

90119-08800-00

$4.31

41

BRACKET

F3Y-U7557-00-00

$16.16
