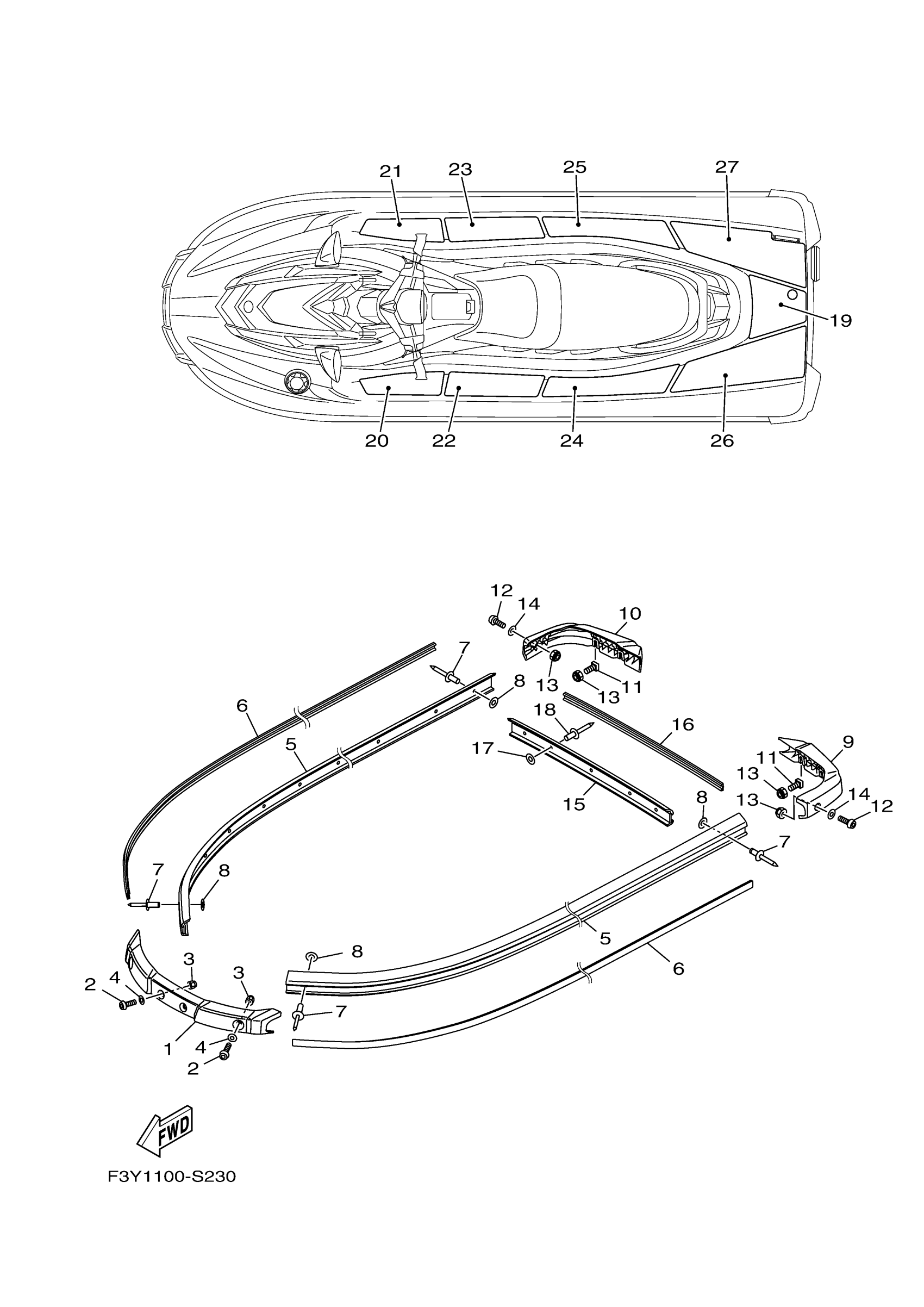

Yamaha EX1050BS (EX SPORT) F3Y3 2017 GUNWALE & MAT Diagram

#

Description
Price

1

GUNWALE, BOW

F3Y-U2511-00-00

$60.75

2

BOLT,HEX. SOCKET BUTTON

90111-06803-00

$2.16

3

NUT, LOCK

F2N-U142L-00-00

$1.00

4

WASHER

F3Y-U1174-00-00

$1.37

5

GUNWALE, SIDE

F3Y-U2512-03-00

$28.30

6

GUNWALE,INNER

F3Y-U2519-01-00

$24.98

6

GUNWALE,INNER

F3Y-U2519-11-00

Unavailable

7

RIVET, BLIND

90267-489U8-00

$0.99

8

WASHER

9299R-05200-00

$3.16

9

GUNWALE, STERN 1

F3Y-U251D-00-00

$145.97

10

GUNWALE, STERN 2

F3Y-U251E-00-00

$18.52

11

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

12

BOLT,HEX. SOCKET BUTTON

90111-06803-00

$2.16

13

NUT, LOCK

F2N-U142L-00-00

$1.00

14

WASHER

F3Y-U1174-00-00

$1.37

15

COVER, GUNWALE 1

F3Y-U252C-00-00

$15.55

16

COVER, GUNWALE 2

F3Y-U252D-10-00

$14.38

16

COVER, GUNWALE 2

F3Y-U252D-20-00

$14.38

17

WASHER

9299R-05200-00

$3.16

18

RIVET, BLIND

90267-489U8-00

$0.99

19

MAT, UPPER

F3Y-U3581-00-00

$11.35

20

MAT, STEP 1

F3Y-U351H-00-00

$15.14

21

MAT, STEP 2

F3Y-U351J-00-00

$15.14

22

MAT, STEP 3

F3Y-U351K-00-00

$13.62

23

MAT, STEP 4

F3Y-U351M-00-00

$14.38

24

MAT, STEP 5

F3Y-U351N-00-00

$15.14

25

MAT, STEP 6

F3Y-U351P-00-00

$15.14

26

MAT, STEP 7

F3Y-U351R-00-00

$21.95

27

MAT, STEP 8

F3Y-U351S-00-00

$21.95
