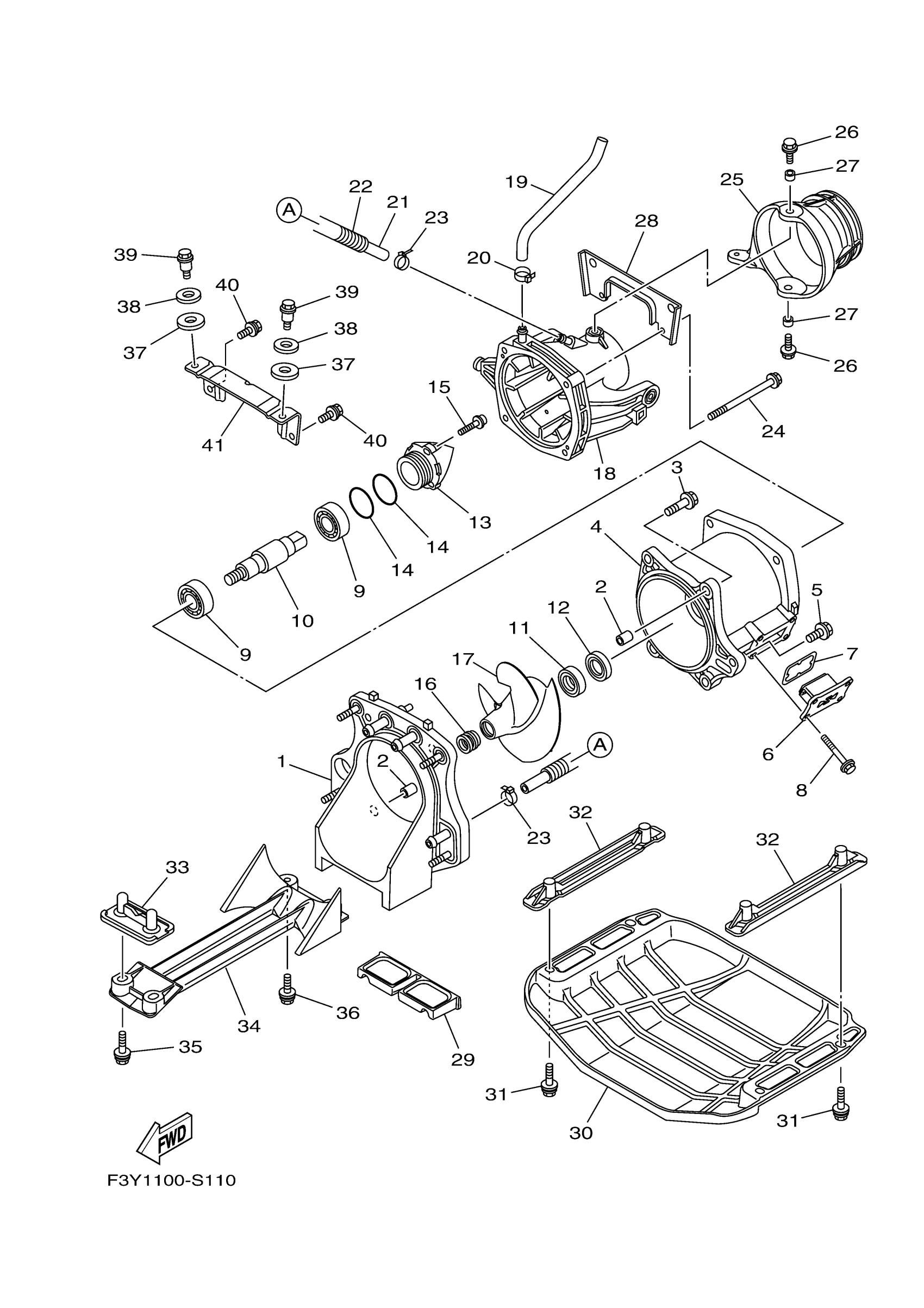

Yamaha EX1050BA (EX SPORT) F6N3 2024 JET UNIT 1 Diagram

#

Description
Price

1

PLATE, TRANSOM

6GA-G5831-00-00

$128.77

2

PIN, DOWEL(4JT)

99590-14016-00

$3.41

3

BOLT, WITH WASHER

90119-10067-00

$2.00

4

HOUSING, IMPELLER

6GA-R1312-02-00

$169.19

5

BOLT, WITH WASHER

90119-10809-00

Unavailable

6

FILTER

6GA-G6882-00-00

$7.12

7

. O-RING

6GA-G2414-00-00

$0.93

8

BOLT,WITH WASHER

90119-06890-00

$1.07

9

BEARING

93306-255X7-00

$14.35

10

SHAFT, DRIVE 4

6GA-G5514-00-00

$43.83

11

OIL SEAL(6R7)

93102-25M34-00

$13.70

12

OIL SEAL(6R7)

93101-25M50-00

$20.80

13

CAP

6EX-R1326-10-00

$7.12

14

. O-RING

93210-44003-00

$2.61

15

BOLT, HEXAGON SOCKET HEAD

90110-06823-00

$2.16

16

CAP, IMPELLER

6DU-51319-00-00

$24.98

17

IMPELLER

6GA-R1321-00-00

$214.88

18

NOZZLE

6GA-R1318-00-00

$65.14

19

HOSE 1

6GA-U72M2-00-00

$7.27

20

BAND, HOSE 18

90601-118UF-00

$2.07

21

HOSE (L220)

90445-14025-00

$1.89

22

TUBE (L180)

90447-15005-00

$1.14

23

CLAMP

90465-10098-00

$1.68

24

BOLT, WITH WASHER

90119-08844-00

$1.29

25

NOZZLE, DEFLECTOR

6BU-R1313-00-00

$43.06

26

BOLT, WITH WASHER

90119-08841-00

$1.01

27

COLLAR(6R7)

90387-08M06-00

Unavailable

28

BRACKET

6GA-R1959-00-00

$8.32

29

SPACER

F3Y-U72C0-00-00

$6.29

30

PLATE 2

F3Y-U273B-10-00

$93.92

31

BOLT

F4L-U3222-01-00

Unavailable

32

BRACKET 2

F0V-U8572-10-00

$10.59

33

BRACKET, 3

F2S-U8577-00-00

$15.07

34

SCREEN, INTAKE

6GA-R1333-00-00

$38.52

35

BOLT

F3Y-U1426-01-00

Unavailable

36

BOLT

F3Y-U1426-01-00

Unavailable

37

GASKET

90430-12002-00

$1.81

38

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

39

BOLT

90109-08043-00

$4.09

40

BOLT, WITH WASHER

90119-08800-00

$4.09

41

BRACKET

F3Y-U7557-00-00

$16.65
