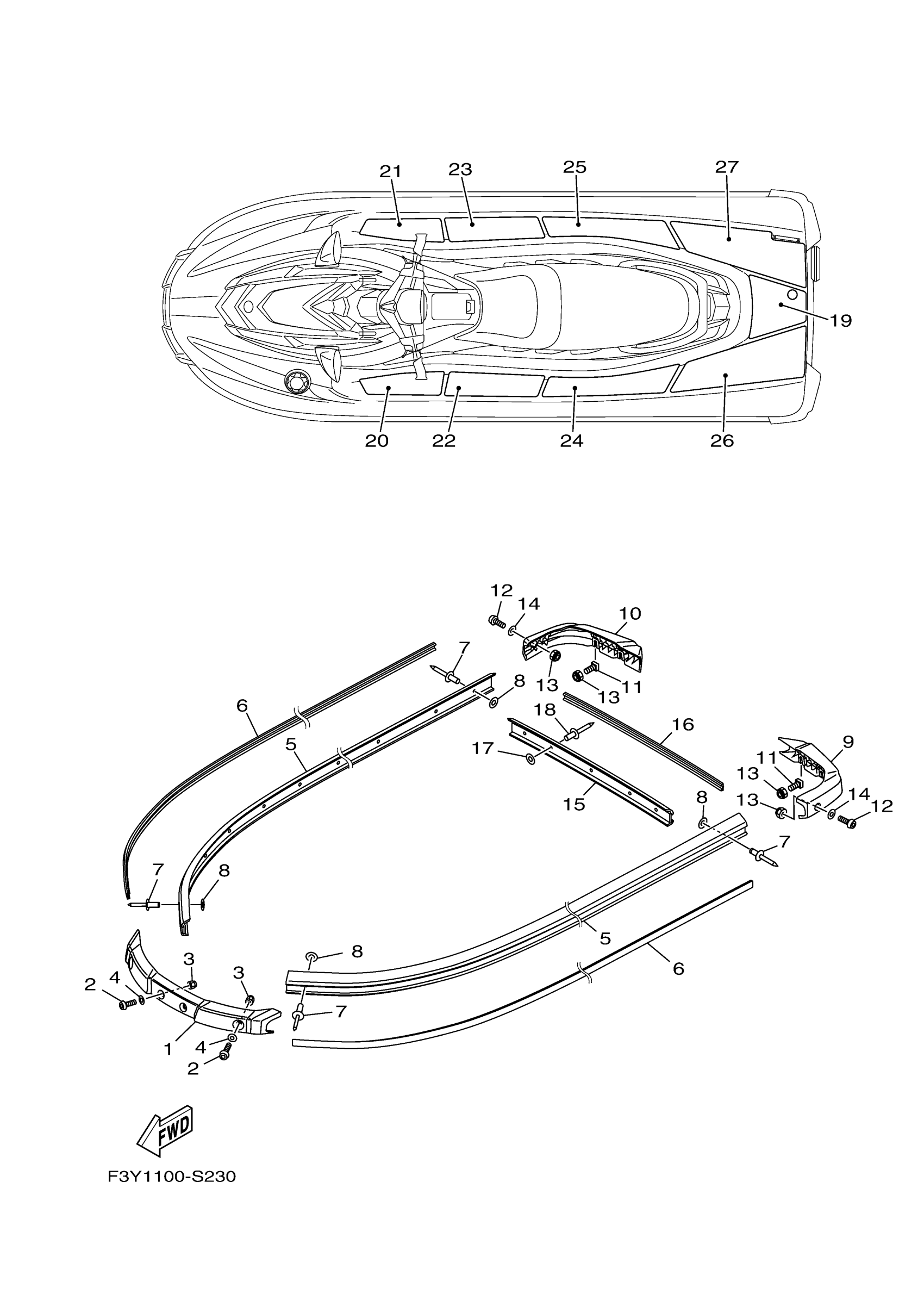

Yamaha EX1050AY (EX DELUXE) F3YU 2023 GUNWALE & MAT Diagram

#

Description
Price

1

GUNWALE, BOW

F3Y-U2511-00-00

$63.22

1

GUNWALE, BOW

F3Y-U2511-10-00

$25.83

2

BOLT,HEX. SOCKET BUTTON

90111-06803-00

$2.30

3

NUT, LOCK

F2N-U142L-00-00

$1.43

4

WASHER

F3Y-U1174-00-00

$1.43

5

GUNWALE, SIDE

F3Y-U2512-03-00

$26.65

5

GUNWALE, SIDE

F3Y-U2512-10-00

$61.75

6

INNER,GUNWALE

F3Y-U2519-41-00

$18.37

6

INNER,GUNWALE

F3Y-U2519-82-00

$27.98

7

RIVET, BLIND

90267-489U8-00

$1.37

8

WASHER

9299R-05200-00

$4.60

9

GUNWALE, STERN 1

F3Y-U251D-00-00

$145.18

9

GUNWALE, STERN 1

F3Y-U251D-10-00

$145.18

10

GUNWALE, STERN 2

F3Y-U251E-00-00

$197.99

10

GUNWALE, STERN 2

F3Y-U251E-10-00

$145.18

11

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

12

BOLT,HEX. SOCKET BUTTON

90111-06803-00

$2.30

13

NUT, LOCK

F2N-U142L-00-00

$1.43

14

WASHER

F3Y-U1174-00-00

$1.43

15

COVER, GUNWALE 1

F3Y-U252C-00-00

$16.16

15

COVER, GUNWALE 1

F3Y-U252C-10-00

Unavailable

16

COVER, GUNWALE 2

F3Y-U252D-50-00

$5.37

16

COVER, GUNWALE 2

F3Y-U252D-81-00

$18.37

17

WASHER

9299R-05200-00

$4.60

18

RIVET, BLIND

90267-489U8-00

$1.37

19

MAT, UPPER

F3Y-U3581-30-00

$13.96

19

MAT, UPPER

F3Y-U3581-40-00

Unavailable

20

MAT, STEP 1

F3Y-U351H-30-00

$12.49

20

MAT, STEP 1

F3Y-U351H-40-00

Unavailable

21

MAT, STEP 2

F3Y-U351J-30-00

$12.49

21

MAT, STEP 2

F3Y-U351J-40-00

Unavailable

22

MAT, STEP 3

F3Y-U351K-30-00

$12.49

22

MAT, STEP 3

F3Y-U351K-40-00

Unavailable

23

MAT, STEP 4

F3Y-U351M-30-00

$12.49

23

MAT, STEP 4

F3Y-U351M-40-00

Unavailable

24

MAT, STEP 5

F3Y-U351N-30-00

$14.69

24

MAT, STEP 5

F3Y-U351N-40-00

Unavailable

25

MAT, STEP 6

F3Y-U351P-30-00

$14.69

25

MAT, STEP 6

F3Y-U351P-40-00

Unavailable

26

MAT, STEP 7

F3Y-U351R-30-00

$27.93

26

MAT, STEP 7

F3Y-U351R-40-00

Unavailable

27

MAT, STEP 8

F3Y-U351S-30-00

$27.93

27

MAT, STEP 8

F3Y-U351S-40-00

Unavailable
