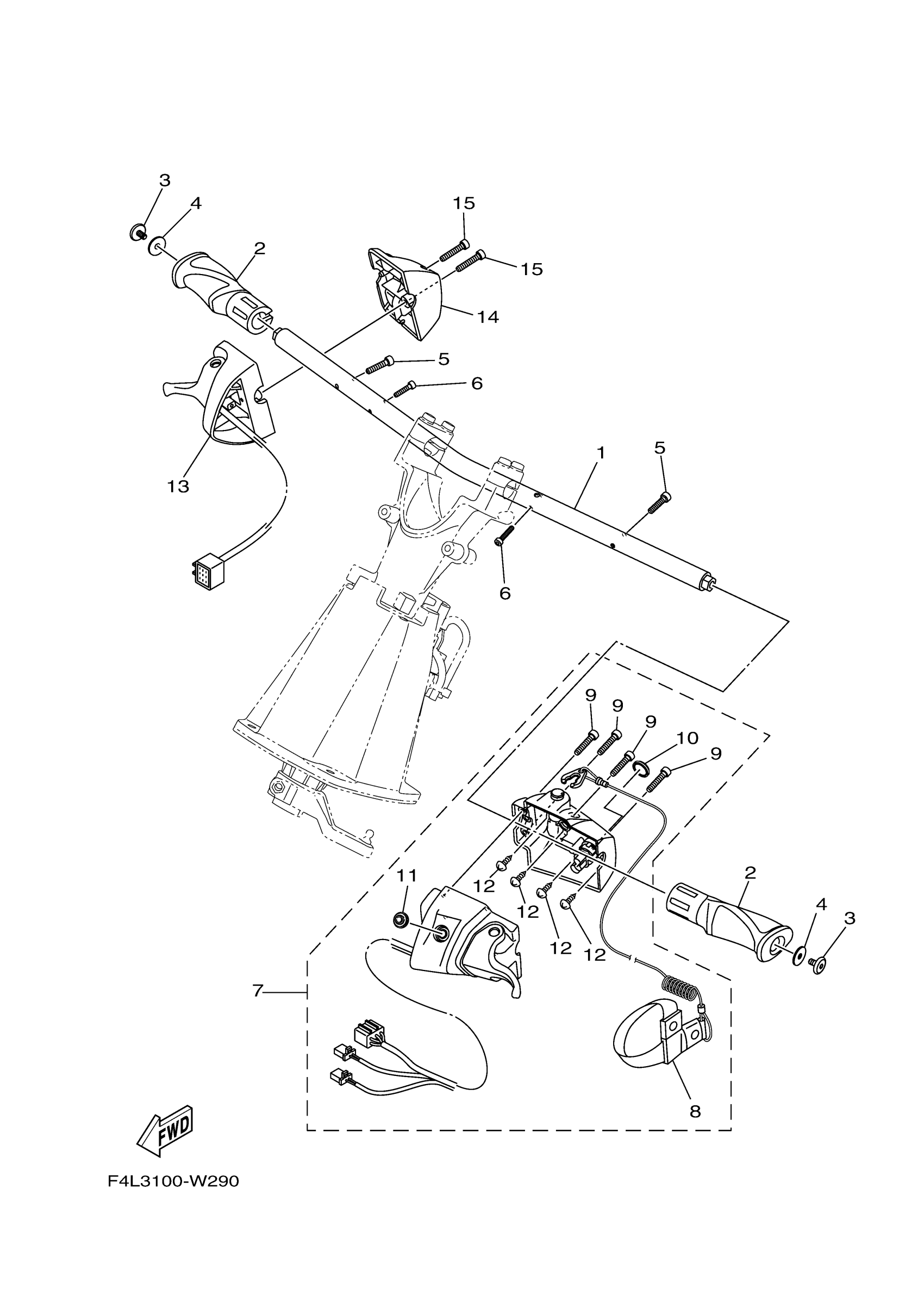

Yamaha EX1050AW (EX DELUXE) F3YK 2021 STEERING 1 Diagram

#

Description
Price

1

HANDLE

F3Y-U1552-00-00

$98.49

2

GRIP,HANDLE

F2S-U155D-03-00

$34.45

3

BOLT, HEXAGON SOCKET HEAD

90110-06383-00

$3.79

4

WASHER, PLATE

90201-068G0-00

$1.04

5

BOLT

F2S-U1516-00-00

$2.93

6

BOLT

91380-04030-00

$0.86

7

SWITCH BOX ASSY

F2X-68310-03-00

$636.24

8

. LANYARD, STOP SWITCH

EW2-68348-00-00

$25.35

9

BOLT, THROTTLE

6CS-6725F-00-00

$4.55

10

. STOP BUTTON COMP

FK7-68312-02-00

$13.02

11

. START BUTTON COMP

FK7-68313-02-00

$10.96

12

. SCREW, TAPPING

97780-30610-00

$1.29

13

THROTTLE LEVER COMP

6CS-14305-13-00

$654.99

14

CASE

6EX-82154-00-00

$26.85

15

BOLT, THROTTLE

6CS-6725F-00-00

$4.55
