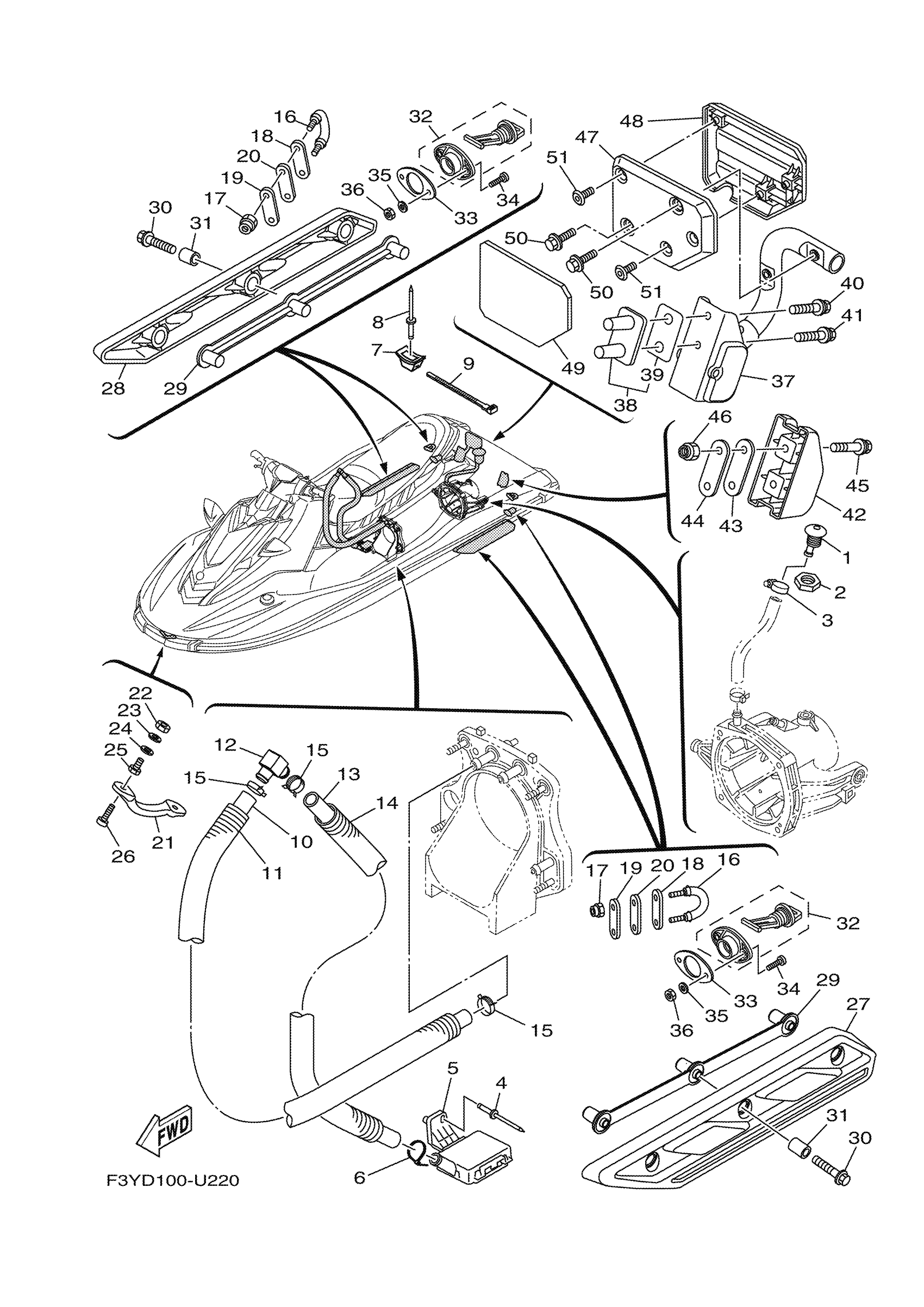

Yamaha EX1050AW (EX DELUXE) F3YK 2021 HULL & DECK Diagram

#

Description
Price

1

SPOUT

F1W-U269B-00-00

$1.80

2

NUT

EU0-61652-00-00

$11.48

3

BAND, HOSE 18

90601-118UF-00

$2.07

4

STRAINER, BILGE

F1B-U761D-02-00

$5.15

5

RIVET, BLIND

90267-489U8-00

$0.99

6

CLAMP

90465-10098-00

$1.68

7

BASE, CLAMP

F1W-U828M-00-00

$1.23

8

RIVET, BLIND

90267-48806-00

$2.00

9

BAND

90601-200U2-00

$3.16

10

HOSE 2

6GA-U771G-00-00

$12.11

11

TUBE,2

6GA-U773E-00-00

$5.15

12

JOINT, HOSE

68N-5112T-00-00

$48.96

13

HOSE

F5P-U784C-00-00

Unavailable

14

TUBE

6GA-U773D-00-00

$5.00

15

CLIP

90467-190A2-00

$3.18

16

STERN EYE

F2N-U1628-02-00

$4.96

17

NUT, NYLON (6J8)

95780-08300-00

$10.55

18

PLATE A

GP7-U4953-10-00

$3.52

19

PLATE A

GP7-U4953-10-00

$3.52

20

PACKING

F1B-U1653-03-00

Unavailable

21

BOW EYE 1

F1K-61624-00-00

$42.60

22

NUT.HEX.(COARS)

99780-12600-00

$2.80

23

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

24

WASHER

F0X-61637-00-00

$1.29

25

NUT

F0X-61652-01-00

Unavailable

26

BOLT, HEXAGON SOCKET HEAD

90110-06280-00

$3.18

27

STABILIZER LH

F3Y-U883N-00-00

$22.71

28

STABILIZER RH

F3Y-U883P-00-00

$22.71

29

BRACKET,STABILIZER

F3Y-U883T-00-00

$19.68

30

BOLT,WASHER BASED

90105-088F9-00

$2.91

31

SPACER

F2N-U8169-10-00

$1.15

32

DRAIN PLUG ASSY

F1S-U2280-02-00

$12.20

33

PACKING, DRAIN

F1S-U2285-01-00

Unavailable

34

SCREW, PAN HEAD

9788R-05025-00

$2.52

35

WASHER

9299R-05200-00

$3.16

36

NUT, FLANGE

9572R-05300-00

$1.43

37

LADDER, STEP ASSY

F3Y-U278A-02-00

$134.11

38

BRACKET, LADDER LH

F2S-U278F-01-00

Unavailable

39

PACKING, BRKT. 1

F2S-U278H-01-00

Unavailable

40

BOLT, WITH WASHER

90119-08844-00

$1.29

41

BOLT, WITH WASHER

90119-08844-00

$1.29

42

BOX, STERN

F3Y-U882G-00-00

$3.79

43

PACKING

F1B-U1653-03-00

Unavailable

44

PLATE A

GP7-U4953-10-00

$3.52

45

BOLT, WITH WASHER

90119-08820-00

$5.45

46

NUT, NYLON (6J8)

95780-08300-00

$10.55

47

STEP

F3Y-U882F-00-00

$3.88

48

PLATE, STEP 1

F3Y-U884R-00-00

$5.39

49

COVER STEP 1

F3Y-U4994-00-00

$4.09

50

BOLT, WITH WASHER

90119-06892-00

$3.79

51

SCREW

F2S-U13C1-00-00

$2.36
