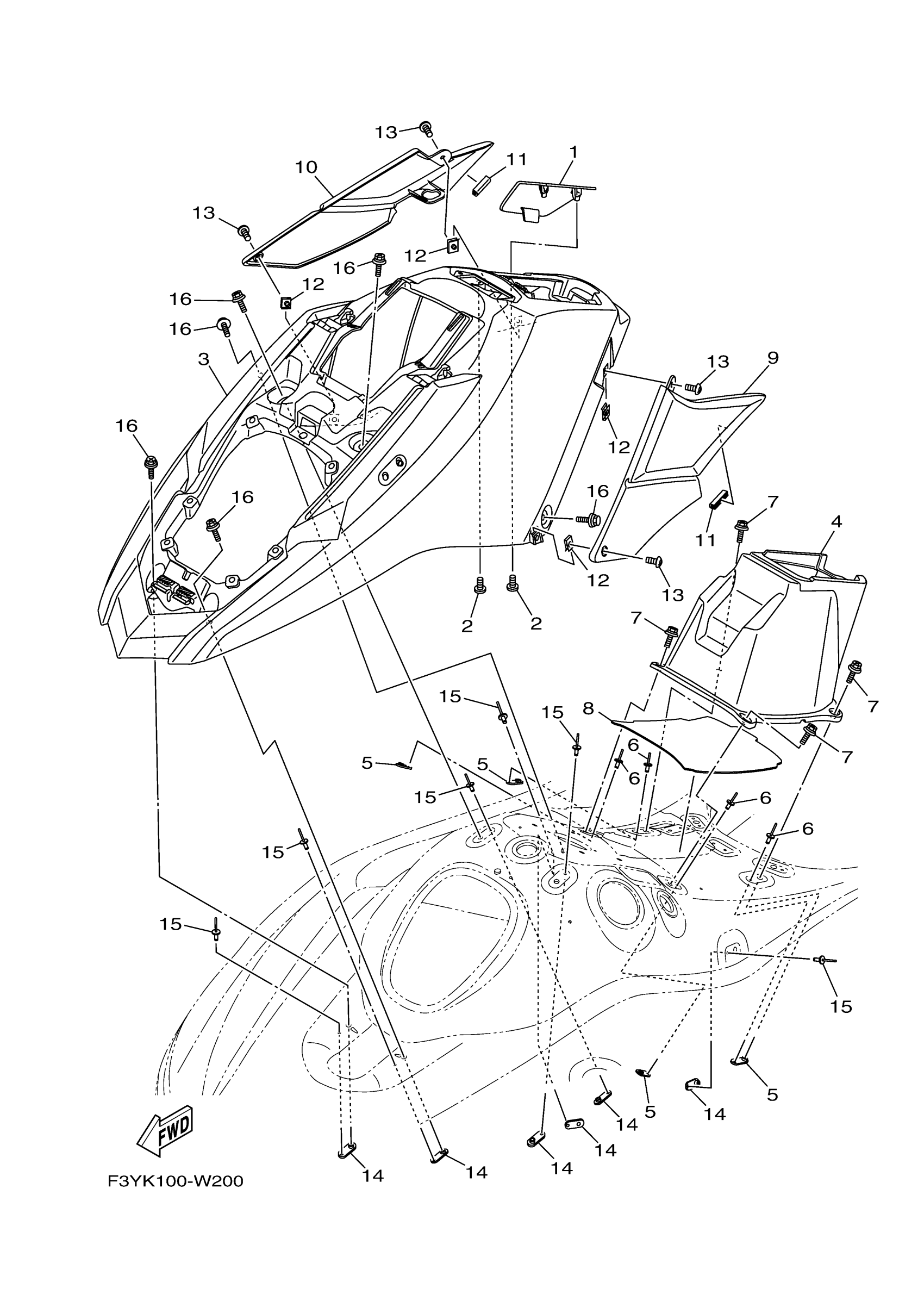

Yamaha EX1050AW (EX DELUXE) F3YK 2021 ENGINE HATCH 1 Diagram

#

Description
Price

1

SEAL

F3Y-U2723-00-00

$5.45

2

SCREW

F2S-U13C1-00-00

$2.36

3

COVER, ENGINE HATCH

F3Y-U516N-00-00

$133.32

4

BOX GLOVE

F3Y-U516P-00-00

$19.68

5

PLATE, FIX

F2X-U5175-00-00

$1.80

6

RIVET (EU0)

90267-48938-00

$5.00

7

BOLT, WITH WASHER

90119-06878-00

$3.43

8

MAT 1

F3Y-U759B-00-00

$14.38

9

PAD, KNEE

F3Y-U353B-80-00

$15.14

9

PAD, KNEE

F3Y-U353B-A0-00

$19.68

10

PAD, KNEE

F3Y-U353B-90-00

$15.14

10

PAD, KNEE

F3Y-U353B-B0-00

$19.68

11

TRIM, 1

F3Y-U828H-30-00

$3.64

12

NUT, SPRING(GJ3)

90183-06902-00

$8.53

13

BOLT, HEXAGON SOCKET BUTTON

90111-06873-00

$5.03

14

PLATE, FIX

F2X-U5175-00-00

$1.80

15

RIVET (EU0)

90267-48938-00

$5.00

16

BOLT, WITH WASHER

90119-06820-00

$3.52
